360 Avionics ELM200 EFIS Flight Instrument
Select Version:
GPS onlyPitot + Static + GPSPrice Includes GST
- JUMP TO
- Overview
- Features
- Specifications
- Reviews
- Q&A
Overview
|
The ELM200 (MiniUni 2.25") is a compact and versatile Electronic Flight Instrument System (EFIS) designed specifically for experimental fixed-wing aircraft. Offering exceptional performance in a small form factor, this cost-effective instrument fits perfectly into a standard 2.25" panel opening and provides essential flight information and advanced features that enhance safety and situational awareness during every flight.

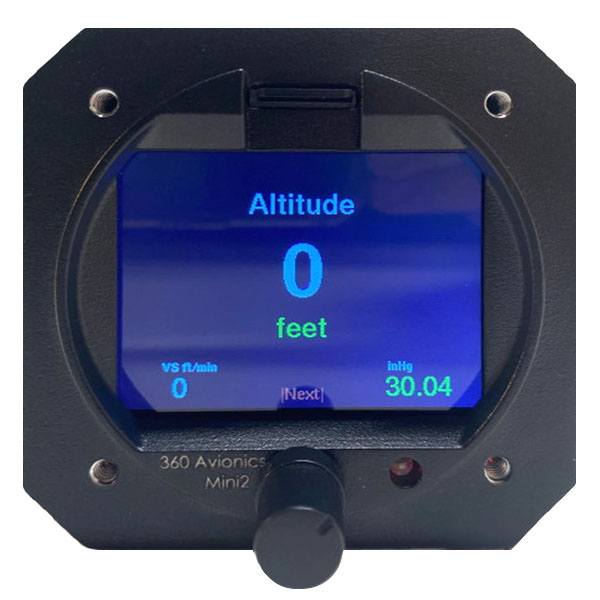

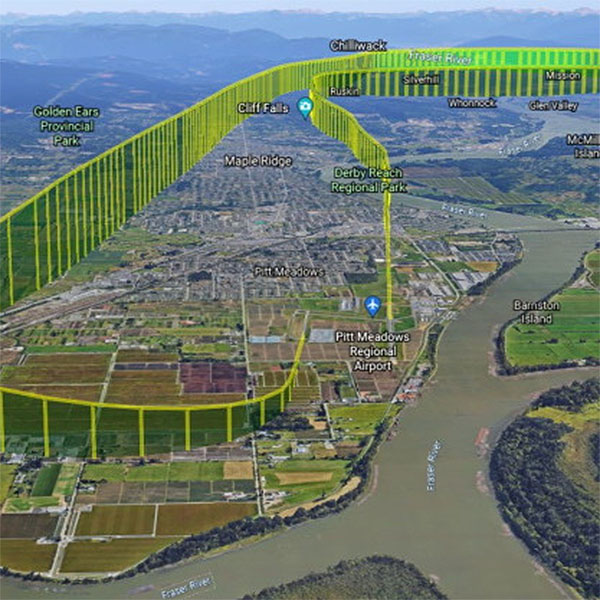

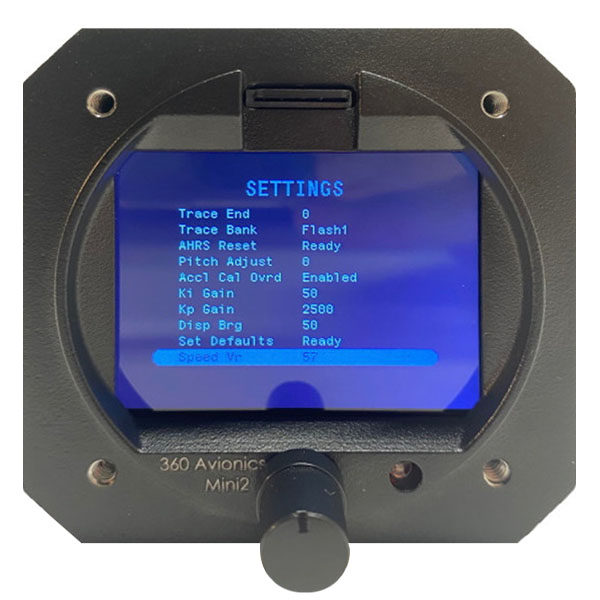

In-Flight Capabilities: Precise Sensors: Altitude pressure, airspeed, gyroscope, and accelerometer sensors provide accurate real-time data for critical flight parameters. V-Speed Reference Strip: Displays speed warnings based on user-defined V-speeds, ensuring safe flight envelope management at all times. GPS-Based Tracking: Real-time track and ground speed data are displayed for enhanced situational awareness. External Compass Module Support: Optionally connect an external compass to provide GPS-independent heading in areas where GPS signals may be unavailable. Outside Air Temperature: When paired with the optional OAT sensor, the display shows both outside air temperature and True Airspeed (TAS) for precise speed management. Sunlight-Readable Display: The 2.25" transflective display ensures clear visibility even under direct sunlight and varying light conditions. Intuitive Controls: A built-in rotary knob allows for easy adjustment of barometric pressure, heading bug settings, and quick access to the settings menu for configuration. Post-Flight Analysis: Flight Data Recorder: Logs key flight parameters at set intervals for later analysis. Data can be exported to a computer using a Micro SD card for further review and diagnostics. Google Earth Export: Export flight paths in Google Earth format to visualize your entire route and flight path on detailed maps, allowing for comprehensive post-flight review. Available Versions: 1. GPS-Based Version: Operates solely on GPS information, eliminating the need for pitot/static connections. Features a barometric altimeter for precise altitude measurement, with airspeed displayed based on GPS ground speed. The artificial horizon relies on GPS corrections, which may have limitations, but can be upgraded with a stand-alone AHRS module (not included) for full pitot/static integration. Full Pitot + GPS Version: Incorporates dynamic pressure sensors and supports pitot/static connections. Delivers the most precise flight data, including accurate artificial horizon, airspeed, and true airspeed readings by utilizing all available sensors. |
Features

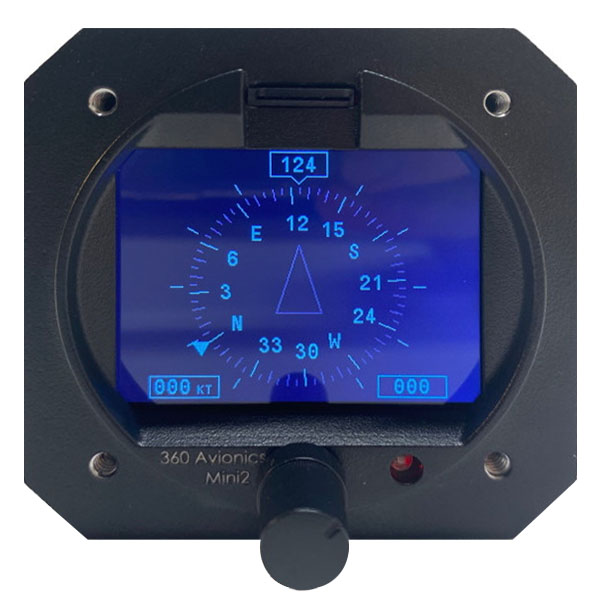

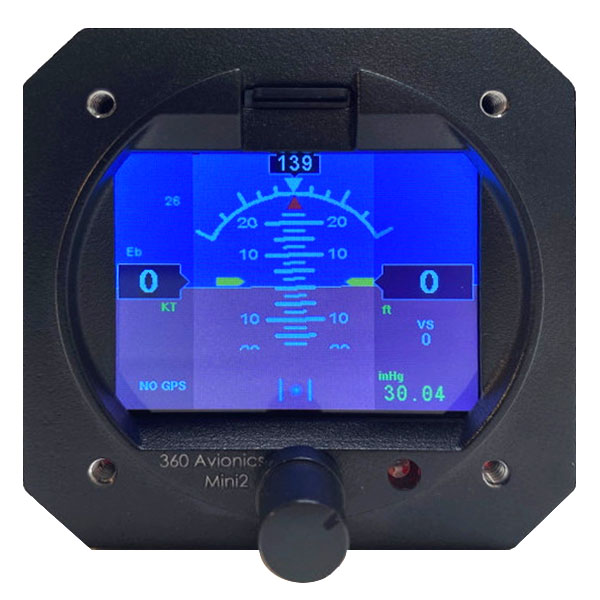

Artificial Horizon: for reliable attitude referenceCompass: for directional guidance

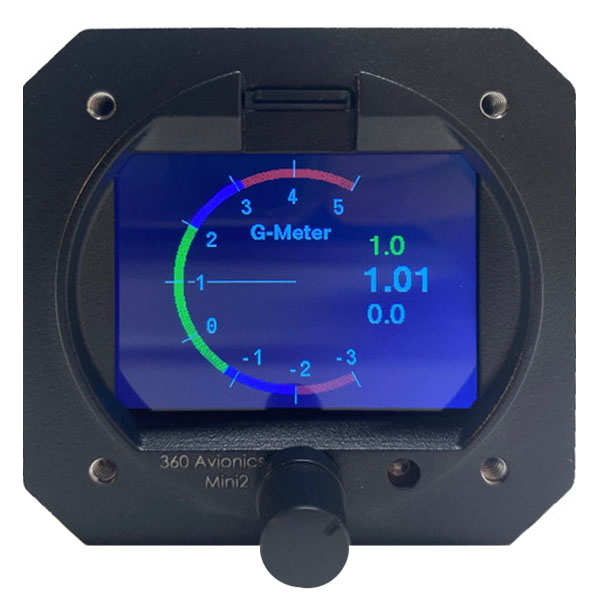

G-Meter: for monitoring G-forces during maneuvers

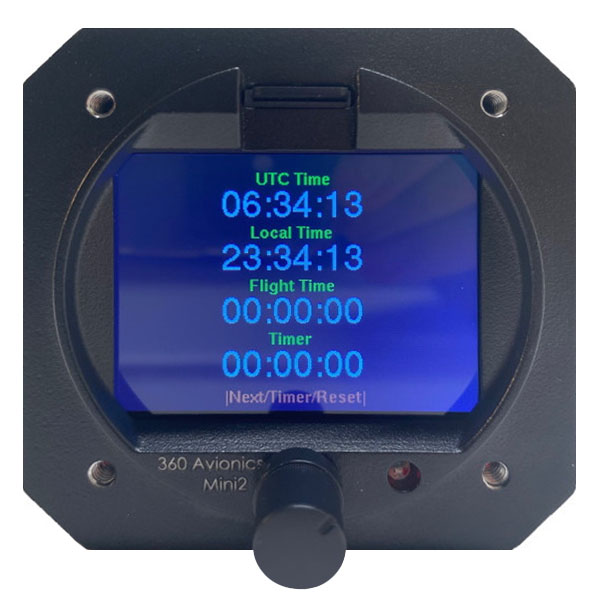

Built-in Real-Time Clock (RTC): and flight timer for tracking flight durations

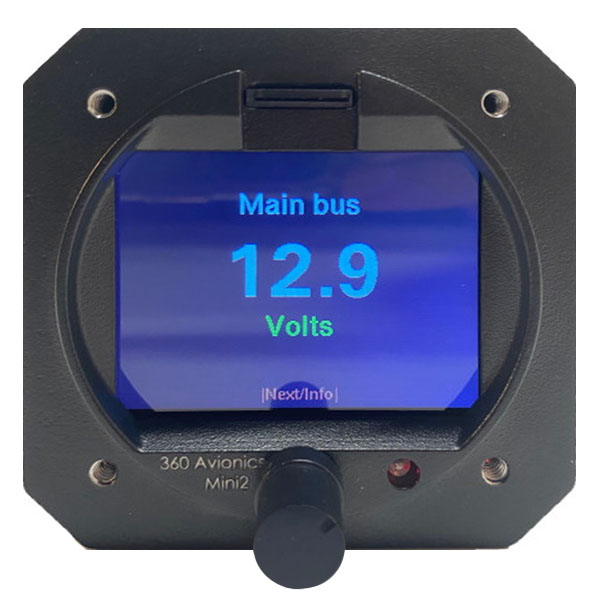

Voltmeter: to monitor electrical systems health
Turn Rate Coordinator: with bank angle indicator for precise turn management
Outside Air Temperature: (OAT) sensor support (optional)
Specifications
Input Voltage: +10V to +28V DCDimensions: 68mm x 68mm x 81mm
Weight: 150g
Display: 2.25" diagonal, 320x240 pixels, sunlight-readable transflective technology
GPS Receiver: High-sensitivity uBlo
Maximum IAS: 250 Knots
Altitude Range: -1000 ft to +32,000 ft
Vertical Speed Range: ±10,000 ft/min
Roll Range: 360 degrees
SD Card: 4GB FAT formatted (supports up to 16GB)
Antenna: Magnetic-mount GPS with male SMA connector
Pitot/Static Lines: Quick-connect 1/4" plumbing
