Overview

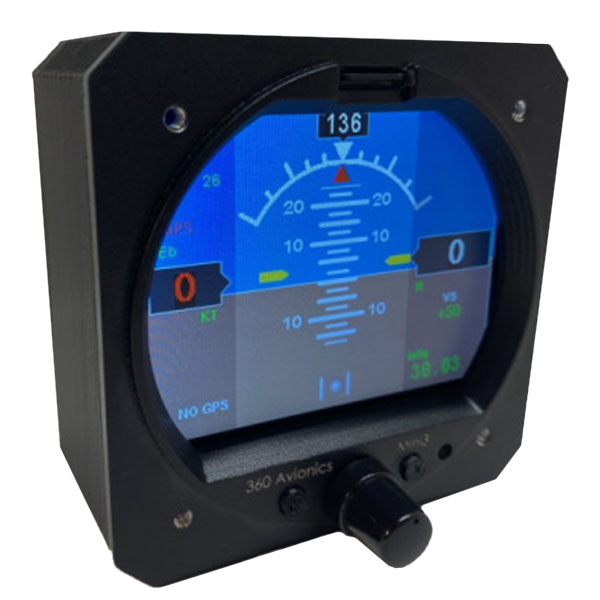

The ELM300 (MiniUni 3.125") is a versatile and compact Electronic Flight Instrument System (EFIS) designed for experimental fixed-wing aircraft. Engineered to fit a standard 3.125" panel opening, this cost-effective instrument delivers high performance with a wide array of advanced features, making it an essential tool for both in-flight operation and post-flight analysis.

Features

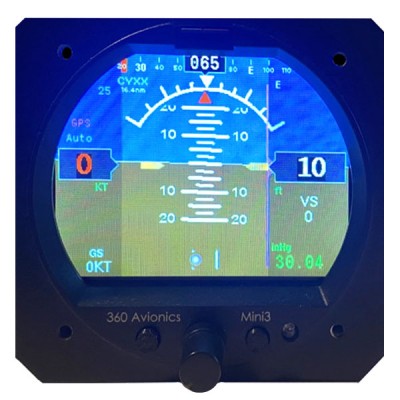

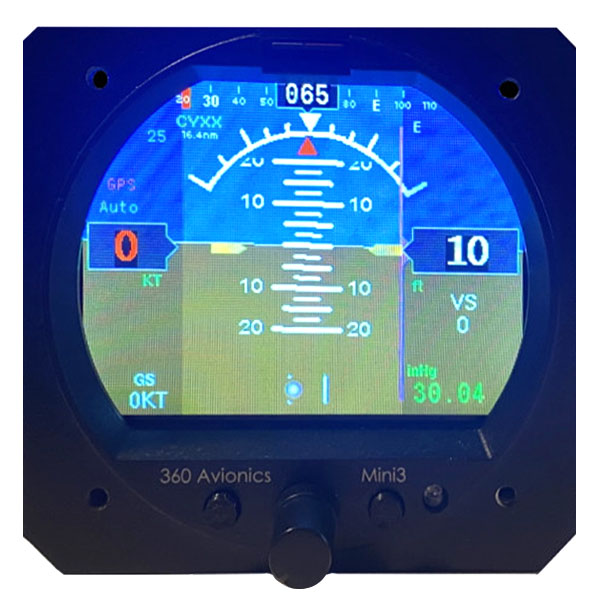

Artificial Horizon: for accurate attitude reference
Compass: for navigation support
G-Meter: for real-time G-force monitoring

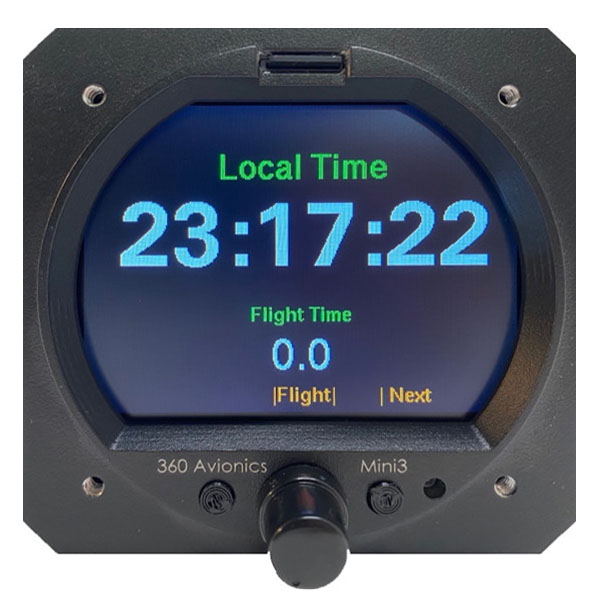

Built-in Real-Time Clock: (RTC) and flight timer

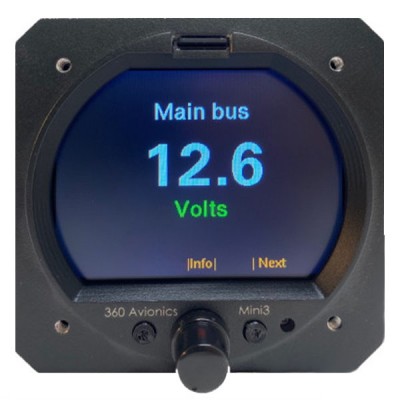

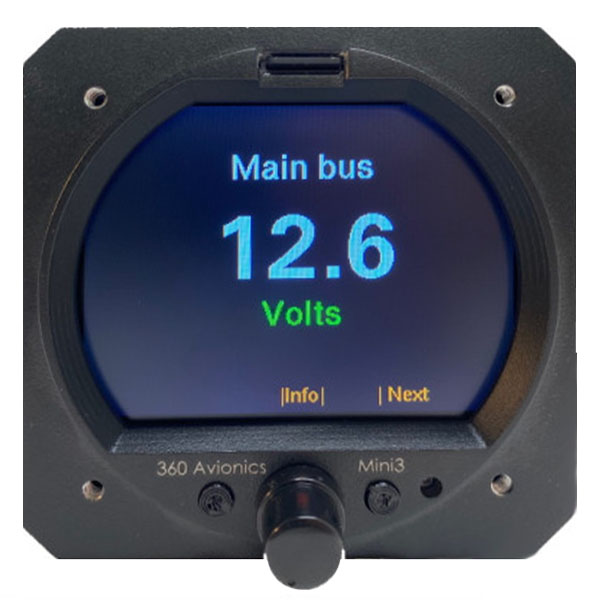

Voltmeter: to monitor electrical systems
Turn Rate Coordinator: with bank angle indicator for safe maneuvering
Outside Air Temperature: (OAT) sensor support (optional)
Course Deviation Indicator: with vertical guidance
Altitude Encoder: for transponder (Garmin) support
uAvionix tailBeaconX Controls: integration
ADS-B Traffic display

Post-Flight Analysis

Flight Data Recorder: Logs flight parameters at set intervals, with data exportable via Micro SD card for in-depth review.
Google Earth Compatibility: Export flight tracks in Google Earth format to visualize the flight path and route.

In-Flight Capabilities

Precise Sensor Suite: Equipped with altitude pressure, airspeed, gyroscope, and accelerometer sensors for accurate flight data.
V-Speed Reference Strip: Provides continuous speed warnings based on user-defined V-speeds for enhanced situational awareness.
GPS-Based Tracking: Displays track and ground speed information to supplement flight navigation.
Course Deviation Indicator: Shows course deviations when receiving a flight plan from an external GPS source.
Altitude Encoding: Supports various transponder protocols, ensuring accurate altitude transmission.
External Compass Module: Optional external compass for GPS-independent heading information in case of signal loss.
Ultra-Bright Display: The 3.125" high-brightness display remains easily readable in all lighting conditions, including direct sunlight.
Intuitive Controls: A built-in rotary knob and two buttons allow for easy operation, including barometric pressure adjustment, heading bug changes, and configuration access.
uAvionix tailBeaconX ADSB/Transponder Integration: Full support for Modes A, C, and S for enhanced traffic awareness and safety.
ADS-B Traffic display: Shows ADSB Traffic on display (GDL90 input via wires or WiFi wireless)

Available Versions

• GPS-Based Version:

• Relies solely on GPS for speed, course, and altitude data, eliminating the need for pitot/static connections.
• Equipped with a barometric altimeter for precise altitude, though airspeed is based on GPS ground speed.
• Can be upgraded with an external AHRS module (not included) for enhanced performance.

• Full Pitot + GPS Version:

• Includes dynamic pressure sensors and supports pitot/static connections.
• Provides the most accurate data, including true airspeed, altitude, and artificial horizon calculations.

Specifications

Input Voltage: +10V to +28V DC
Dimensions: 68mm x 88mm x 81mm
Weight: 195g
Display: 3.125" diagonal, 320x240 pixels (ultra-bright)
GPS Receiver: High-sensitivity uBlox
Communication: RS-232 ports (2), speeds 2400-115200 baud
Maximum IAS: 250 Knots

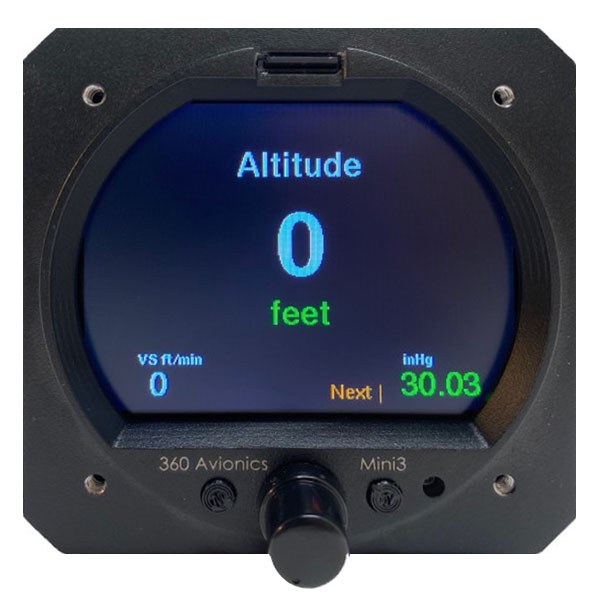

Altitude Range: -1000 ft to +32,000 ft
Vertical Speed Range: ±10,000 ft/min
vRoll Range: 360 degrees
SD Card: 4GB FAT formatted (supports up to 16GB)
Antenna: Magnetic-mount GPS with male SMA connector

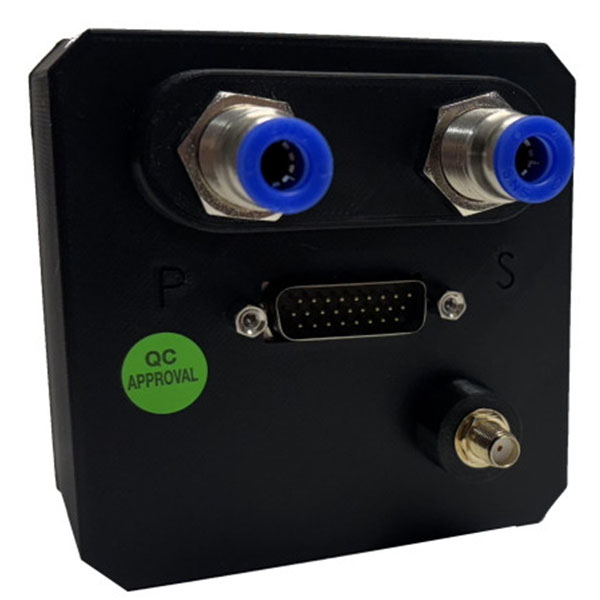

Pitot/Static Lines: Quick-connect 1/4" plumbing
Built-in WiFi for ADSB wireless data input (optional)
