Overview

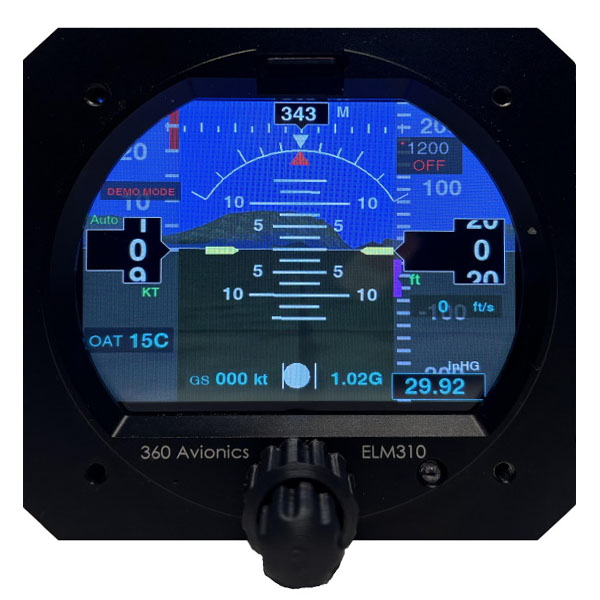

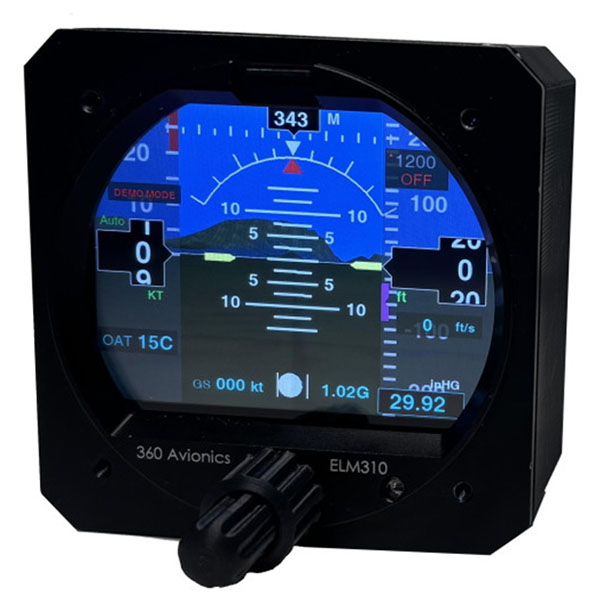

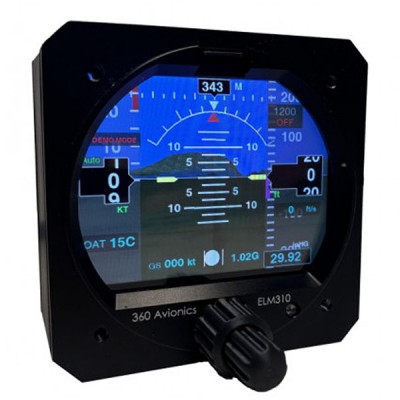

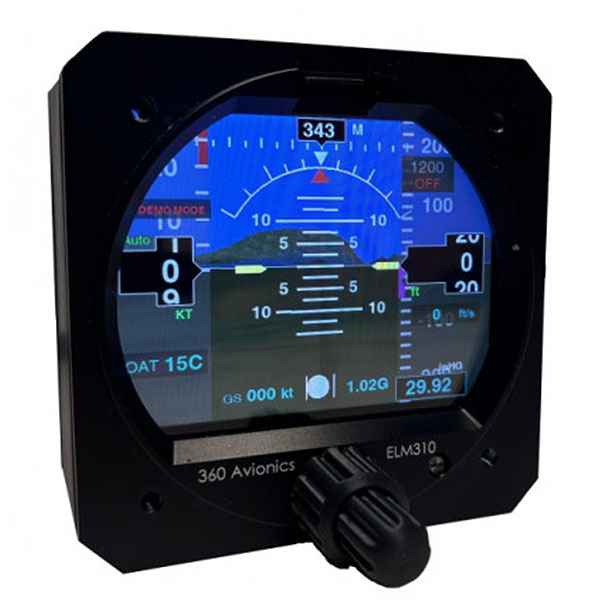

The ELM310is a compact and cost-effective Electronic Flight Instrument System (EFIS) designed specifically for experimental aircraft. Offering high performance, it enhances situational awareness, flight control, and engine monitoring. With advanced features and user-friendly controls, the ELM310 is a reliable solution for pilots seeking precision and ease of use in their avionics.

Features

Capacitive Touch Screen for intuitive operation.
Artificial Horizon for precise attitude indication.
Basic 3D Synthetic Vision with terrain and obstacle awareness for enhanced situational awareness*.
Precise ASI and Altitude using built-in sensors.
Compass: External module or GPS track-based.

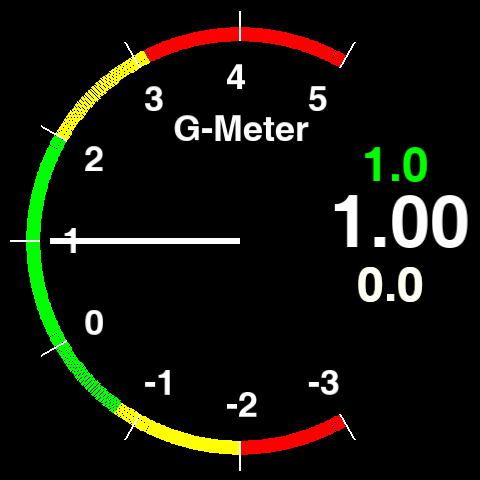

G-Meter: Monitors load factors during flight.
Time Display: Local, UTC, flight time, and timer.
Voltmeter: Tracks electrical system performance.
Turn Rate and Bank Angle indicators for accurate control.
Outside Air Temperature (OAT) display (optional sensor required).
EnGood Engine Monitor Support: Display critical engine parameters (with EM-01).
Course Deviation Indicator for precise navigation.
Altitude Encoder for transponder integration.
uAvionix TailBeaconX Controls: Full integration for managing ADS-B/transponder modes (A, C, S).

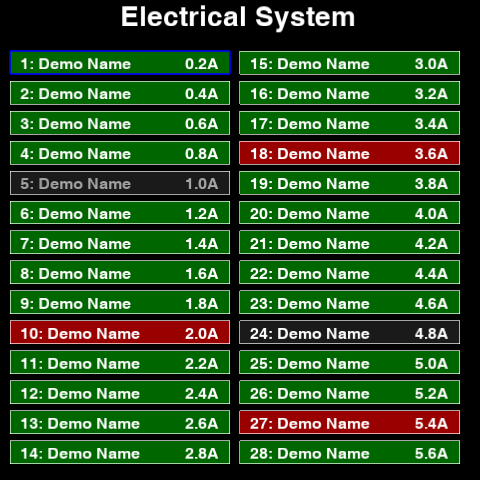

VPX Electronic Circuit Breaker Controls: Monitor VPX circuit breaker statuses.ADSB Traffic display

Post-Flight Analysis

Flight Data Recorder: Logs flight parameters at intervals. Export via Mini SD Card for analysis.
Google Earth Export: Visualize flight paths and performance data in Google Earth format.

In-Flight Features

High-Precision Sensors: Altitude, airspeed, gyroscope, and accelerometer for accurate flight data.
Powered by GPU: Ensures smooth and responsive graphics.
V-Speed Vertical Reference Strip: Real-time speed warnings for enhanced safety.
GPS-Based Track and Ground Speed: Enhanced situational awareness.
Optional OAT Sensor: Displays OAT and True Airspeed (TAS).
External Compass Module Support: Heading indication even in GPS-denied environments.
Ultra-Bright Sunlight-Readable Display: 3.0" display for all lighting conditions.

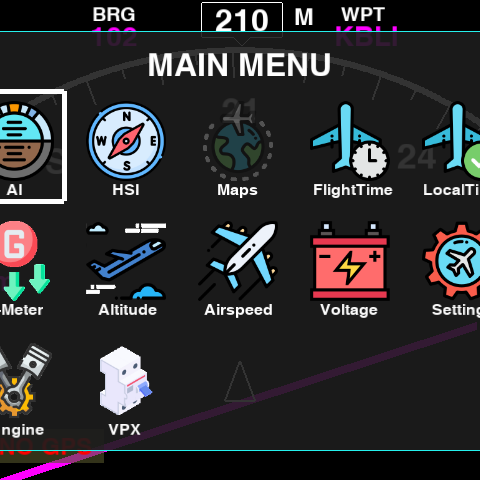

User-Friendly Interface: Dual rotary knobs for easy adjustments.
Backup Power Support: Compatible with external backup battery unit (BBU), available separately.

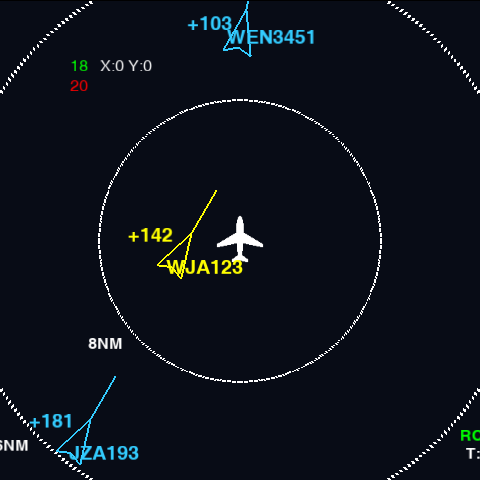

Live ADSB Traffic display (requires compatible wireless or stationary ADSB receiver)

Additional Features of this Model

• Built-In AHRS Module: For reliable attitude and heading reference.

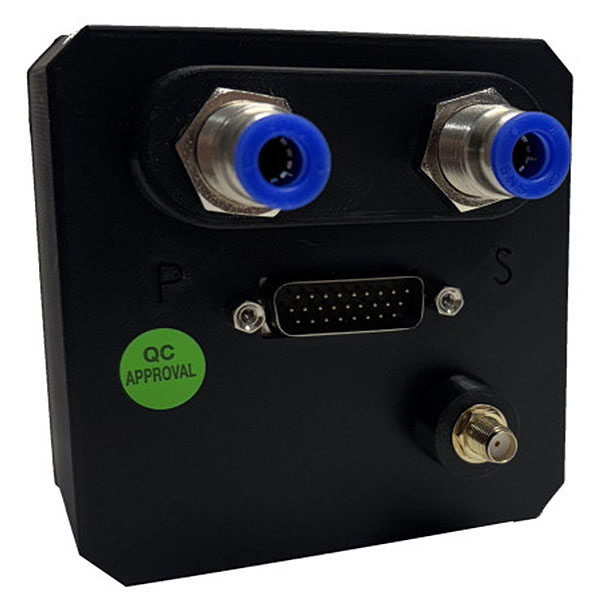

• Dynamic and Static Pressure Sensors: Includes quick-connect fittings for easy installation of pitot/static lines.

• GPS Receiver: Integrated high-sensitivity Ublox GPS receiver for precise location data.

Specifications

Input Voltage: +10V to +28V DC
Unit Size: 95mm x 95mm x 90mm
Weight: 300g
Display Size: 3.0" diagonal
Display Resolution: 640x480 pixels (ultra-bright display)
Maximum IAS: 250 knots
Altitude Range:-1000 ft to +32,000 ft
Vertical Speed Range:10,000 ft/min up or down
Pitot/Static Range: 360° roll
MicroSD Port: Supports up to 32 GB for map and database storage.
Antenna: Magnetic mount GPS with male SMA connector.
Pitot/Static Lines: Quick-connect 1/4" plumbing for easy installation.
Built-in WiFi for ADSB data input (Optional)
