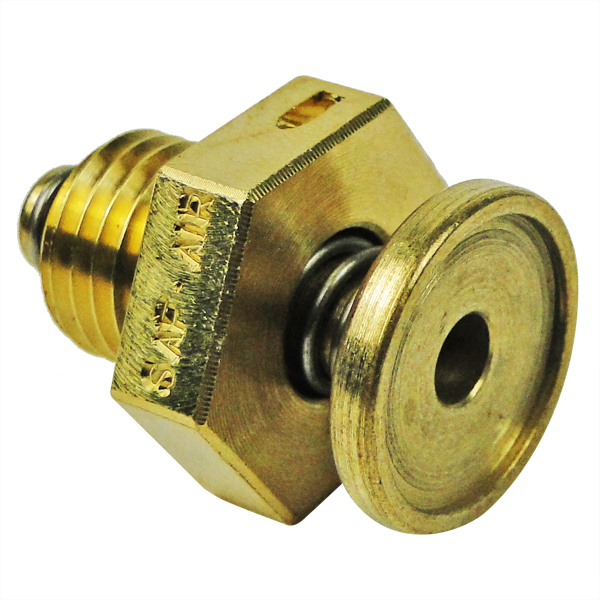

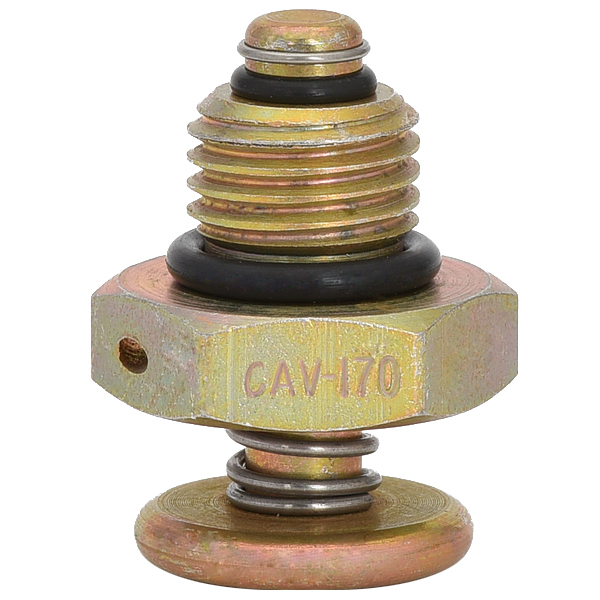

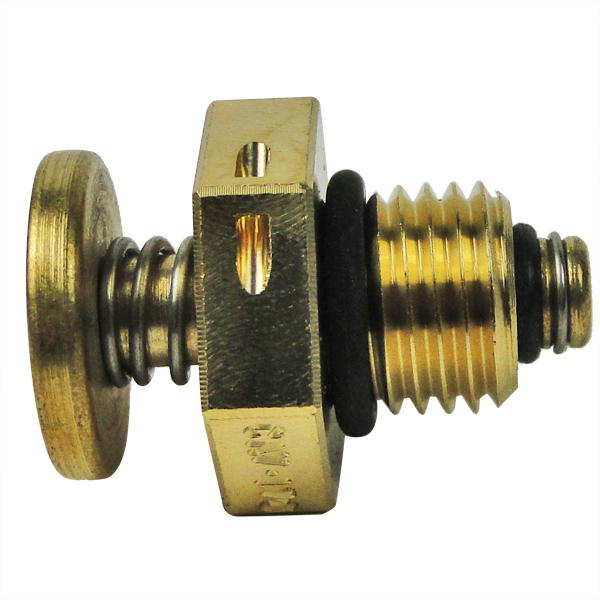

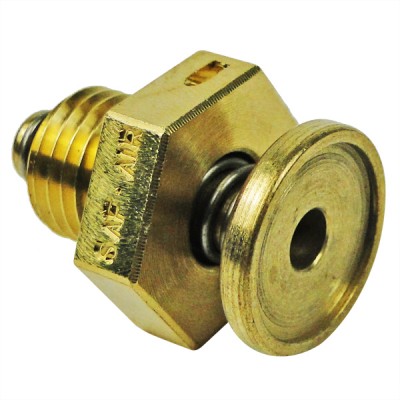

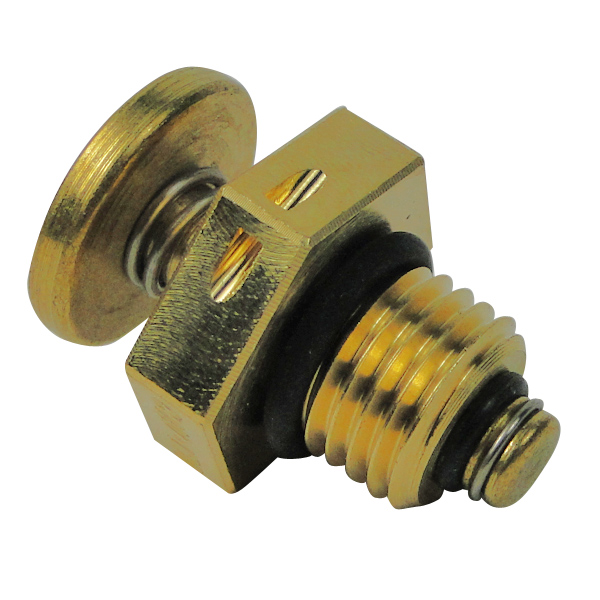

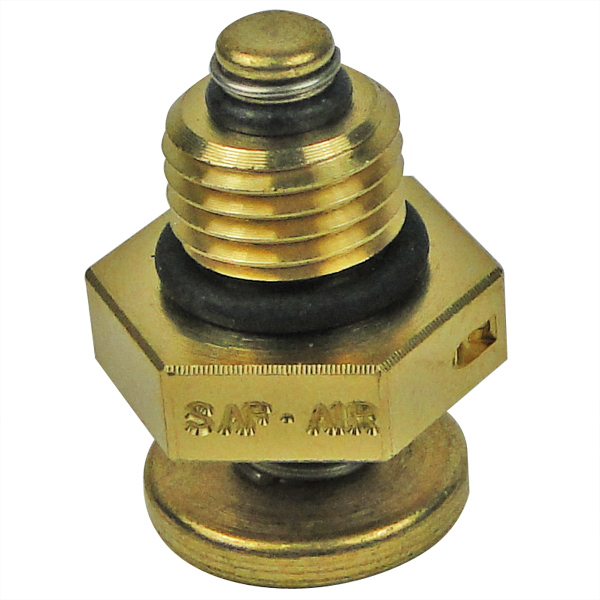

Saf-Air CAV-170 Pushtype Fuel Drain Valve
MFR Model# CAV-170
Overview
|
SAF-AIR push type fuel drain valves are close tolerance valves of simple design. These valves provide the most trouble free operation of any other line of valves in the industry. SAF-AIR valves are manufactured with an o-ring placed on the stem to seal against a flat seat on the body. This design eliminates an area where dirt can gather, thus putting an end to the main cause of fuel drain valve drip. FAA & PMA APPROVED. Note: Aircraft applications are for general reference only. Verify correct valve for your aircraft before ordering. MODEL CAV-170 For all Cessna late 140A models, 150, 170, 170A, 170B, 172 and 175. Thread size: 7/16-20 NF-3 |
Features
- Eight models in two styles with or without 1/4" hose adapter
- All Valves can be rebuilt
- Standard fuel resistant o-rings
- Simple operation - just push to sample fuel
Specifications
- MATERIAL: 360 Brass
- FINISH: Natural
- TEMPERATURE: -60° to +260°F (-51° to +127°C)
- O-RINGS: CAV-170 Size -012
- PRESSURE: 60 PSI max
- MODEL CAV-170 7/16-20 NF-3 For all Cessna 310 tip tanks; Mooney Mark 20 and 20A; all Ercoupe models; Bellanca, Taylorcraft model B; Stinson 108, 108-1, 108-2, 108-3; Voyager model 10 and 10A; Navion; Waco VK series and UPF; and Sea Bee. Fits all standard gascolators.
Reviews
Well built, exact replacement for my old leaky one. Easy install.
Verified Purchase
Saf-Air Fuel Drain Valve Cav-170, 7/16-20
Perfect fit. Maintains our old birds flying safely.
Verified Purchase
Saf-Air Fuel Drain Valve Cav-170, 7/16-20
great product fixed my problem
Verified Purchase
Saf-Air Fuel Drain Valve Cav-170, 7/16-20
Easy swap out. Old drain was more flush to the wing surface underneath making it difficult to withdraw samples. This one extends out more allowing for better extraction. 1 minute swap. Replacement hack. Wrap rag around wrist to prevent fuel from running down your arm.
Verified Purchase
Saf-Air Fuel Drain Valve Cav-170, 7/16-20
Excellent replacement drain valve. High quality, perfect fit.
Verified Purchase
Saf-Air Fuel Drain Valve Cav-170, 7/16-20
Great item, perfect fit
Verified Purchase
Saf-Air Fuel Drain Valve Cav-170, 7/16-20
Perfect fit, fast shipping
Verified Purchase
Saf-Air Fuel Drain Valve Cav-170, 7/16-20
This product was a good replacement for my old fuel drain valve.
Verified Purchase
Saf-Air Fuel Drain Valve Cav-170, 7/16-20
Great replacement for my leaky valve on the 172. I also purchased. Two of the O rings so that I can have a replacement ready to go.
Verified Purchase
Saf-Air Fuel Drain Valve Cav-170, 7/16-20
Perfect replacement. Super easy installation.
Verified Purchase
Saf-Air Fuel Drain Valve Cav-170, 7/16-20
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, these will include the o-ring.
Yes, we do carry the SS version. Please see our part # for this SS version.
Per Saf-air, yes, that is the correct part for the 152.
Yes, this is the correct drain valve for the Cessna 150H.
Yes, this should be the correct drain valve for the Cessna 150L. We always recommend verifying currently installed valve or your specific aircraft parts manual to confirm.
Yes, EzTurn can be used with this valve.
It is the CAV-170-SS. Our part number 05-15418.
5/16
