Fuji Spray D6™ 6-Stage HVLP Spray System
MFR Model# 4106-T75G
Overview
|

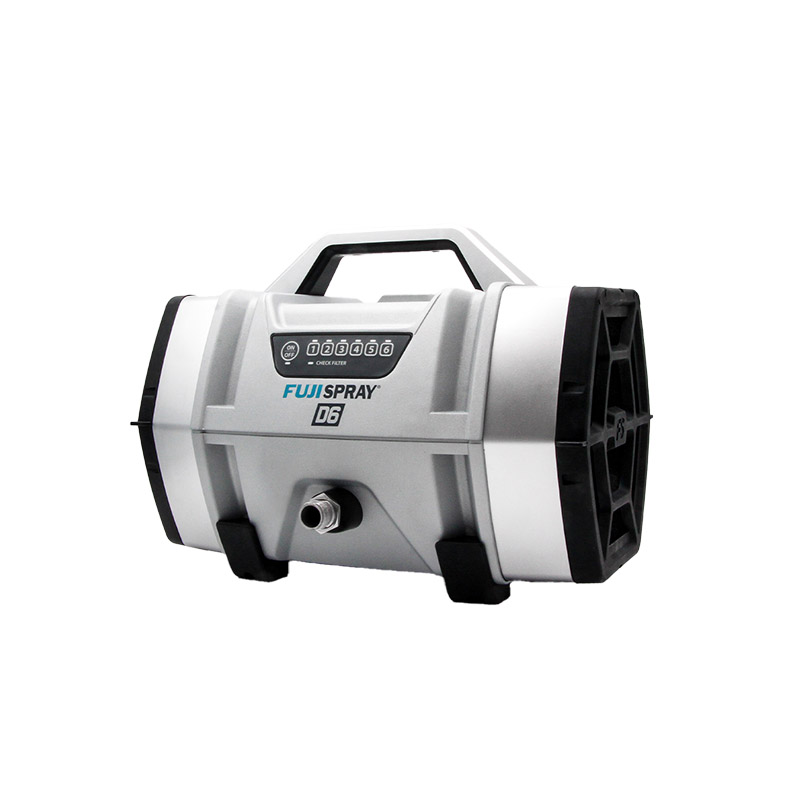

Fuji Spray®’s D6 sets a new benchmark in the spray finishing industry, offering a powerful 6-stage motor rated at 11.5 PSI. Engineered for efficient and cooler operation, the D6 is designed to prolong motor life and maximize return on investment. With 6 pre-set pressure settings, users gain precise control over spray output, ensuring professional-grade results with minimal overspray and waste. The D6 system consistently provides warm, dry air, atomizing even the highest viscosity coatings with virtually no thinning required. This results in stunning finishes and even coverage every time. Built with a rugged design, the D6 ensures unmatched longevity, whether used in the workshop or at the job site. |
Features

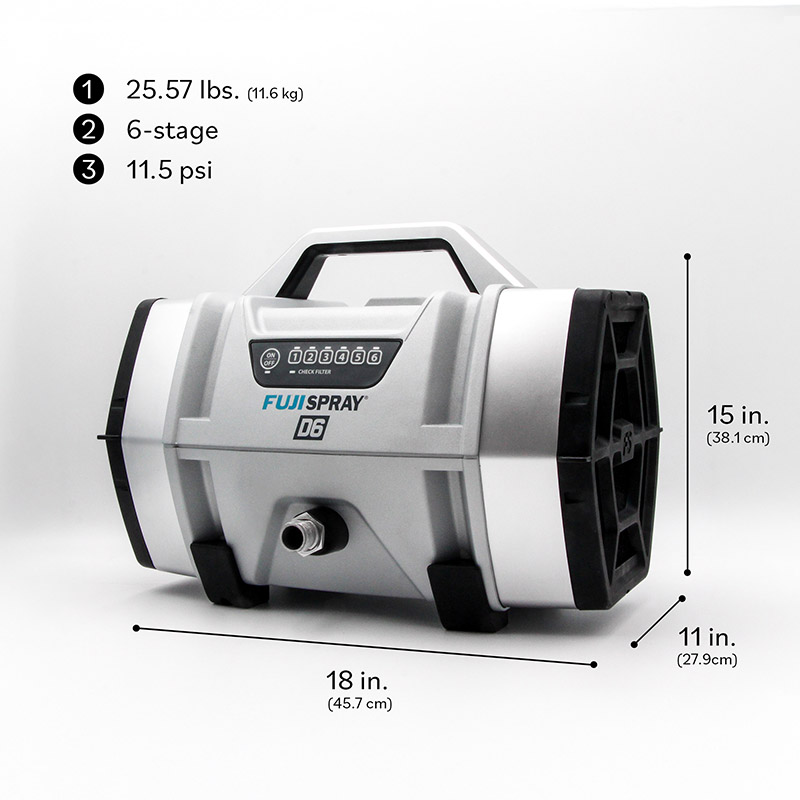

- Powerful 6-stage motor (11.5 PSI)
- Smart Select Control Panel with PSI settings ranging from 3 PSI (1-stage) to 11.5 PSI (6-stage)
- Easy Pause remote control (remote range: 75ft)
- Advanced 2-stage turbo filtration with check filter light
- Heat Dissipation Technology
- Noise reduction case design
- Fold-away spray gun holder
- 30ft hose with quick-connect and air control valve

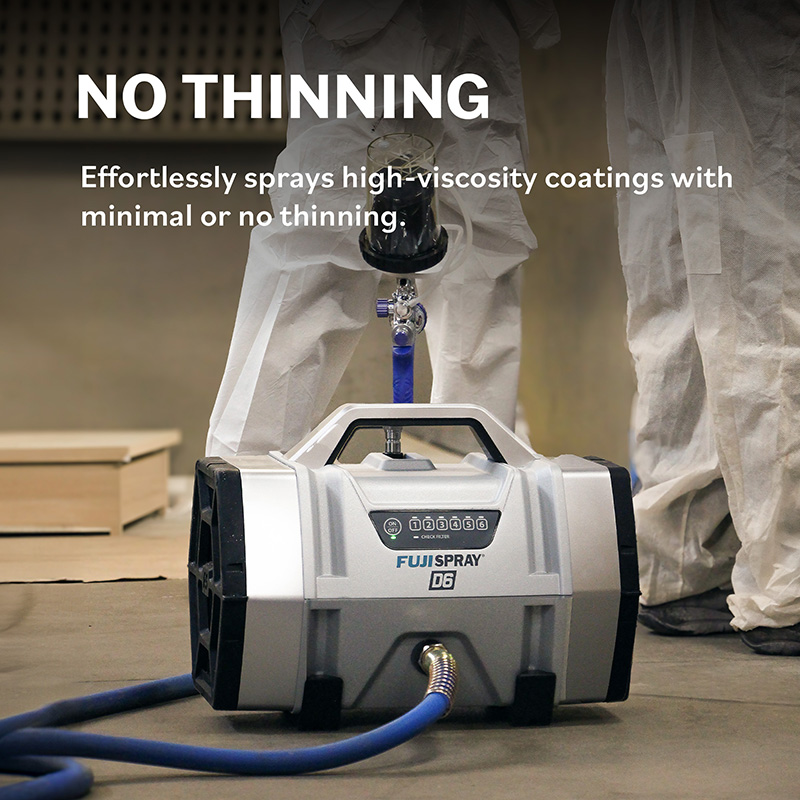

- Ideal for high-viscosity materials and suitable for both waterborne and solvent-based coatings
- 2 + 1 year warranty on parts and labor
Specifications
- Applicator/Tool Type: Paint Sprayer
- Compatible Paint Type: Acrylic Paint, Exterior Paint, Interior Paint, Latex Paint, Oil-Based Paint, Polyurethane/Lacquer, Primers, Sealers, Stains, Water-Based Paint
- Features: Adjustable Fan Pattern, Adjustable Nozzle, Adjustable Pressure, Adjustable Spray Width, Air Flow Valve, Built-in Stand, Check Valve, Ergonomic Handle, Fan Control Screw, Flow Control, Low Overspray
- Feed type: Gravity Feed
- Included: Hose Included
- Kit: No
- Paint Sprayer Type: Handheld
- Paint Sprayers Product Type: HVLP
- Power Type: Electric
- Pump Type: Electric motor
- Spray Tip Pattern Size (in.): 12(in)
- Spray Tip Size: 13
Benefits
- Non-bleed stainless steel needle, nozzle, and fluid passages
- Side-mounted fan pattern control – adjustable incremental fan pattern with three orientations: horizontal, vertical, circular
- Easy-to-disassemble spray gun with minimal internal components
- Cup capacity ranging from 3oz (89 cc) to 1qt (1000 cc)

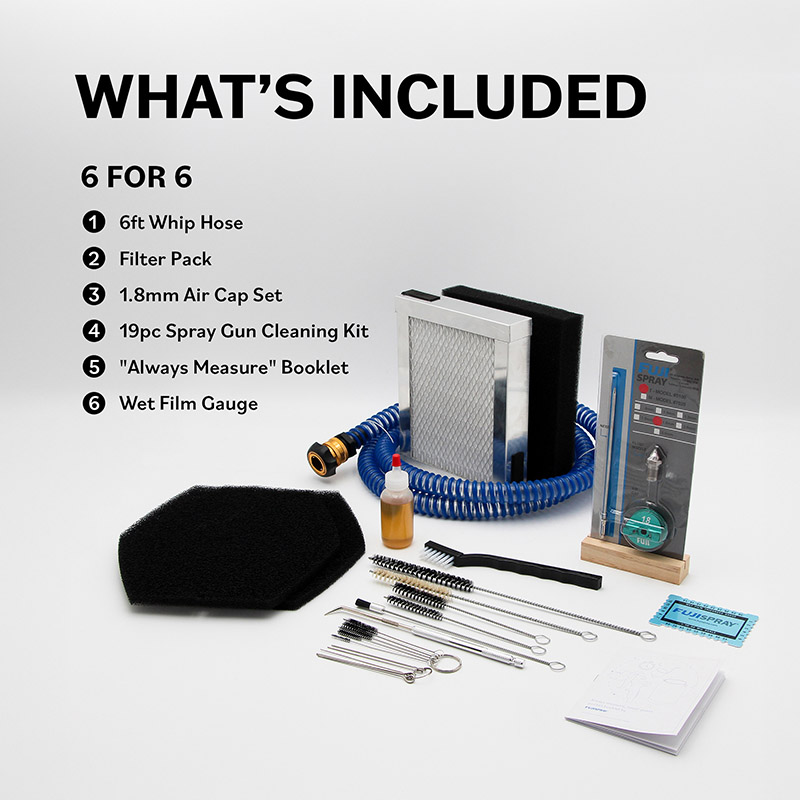

In The Box

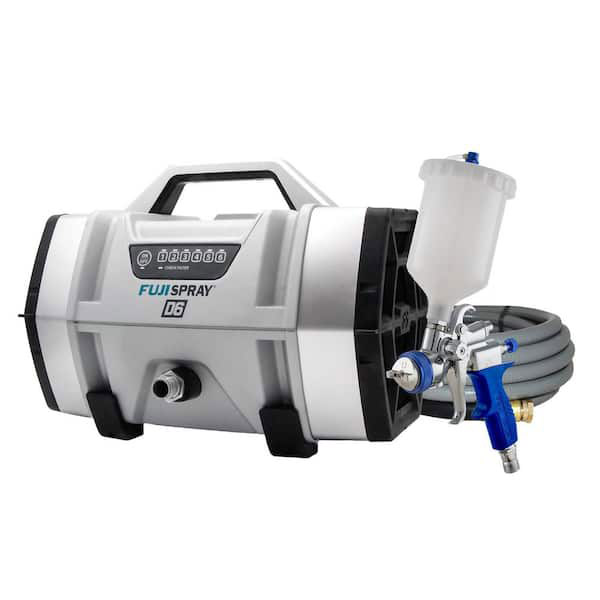

- D6™ 6-Stage HVLP Spray System
- T35G Spray Gun
- 1.8mm air cap set
- 6ft flexible whip hose
- Replacement filter pack
- 19-piece spray gun cleaning kit
- Wet film gauge
- “Always Measure” booklet
