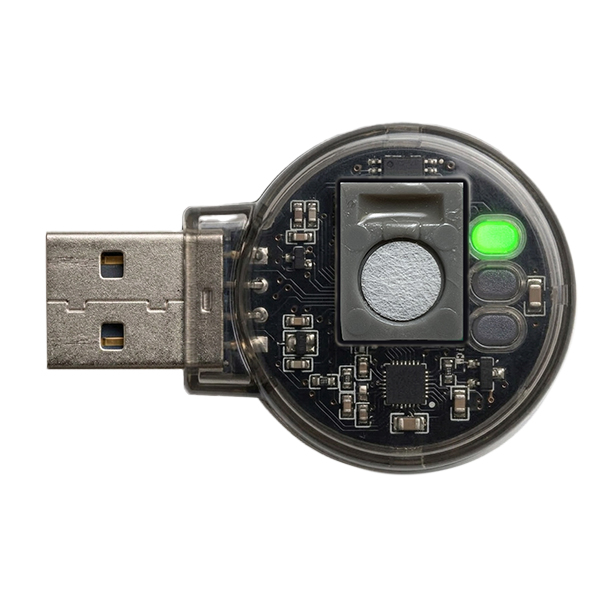

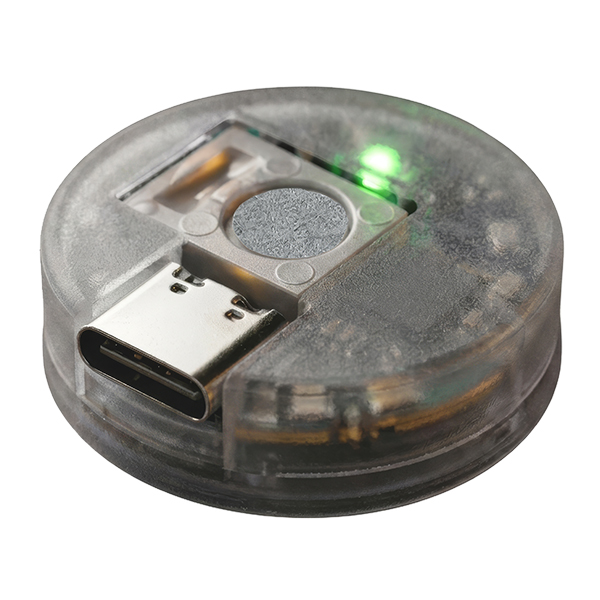

Radiant CO-Pocket™ Carbon Monoxide Detector
Select Version:
USB-AUSB-CPrice Includes GST
Overview
|
THE CO-USB IS BACK. Tiny enough to disappear. Clear enough to matter. Choose direct-plug CO-USB-A or cable-positioned CO-USB-C. Individually tested and calibrated in the USA, by RADIANT — not by a subcontractor or vendor — to provide a reliable indication of carbon monoxide levels. A tiny, individually calibrated, aviation carbon monoxide detector with automatic brightness and progressive green, yellow, and red visual warnings. INDIVIDUALLY CALIBRATED BY RADIANT USB-C or A POWERED AUTOMATIC BRIGHTNESS DUAL-SIDED LIGHT DESIGNED FOR PILOT SCAN The original Radiant CO-USB was deliberately simple: plug it in, put it where you could see it, and let it watch the cabin. Pilots bought it because it did not demand another app, another battery routine, or another large box on the panel. Then a critical LED became unavailable, and the CO-USB line went away. We stayed out of the market longer than we intended. Rather than substitute a lesser part, we started over. CO-USB-A & CO-USB-C keep the simplicity and add the intelligence the original never had: processor-controlled light, startup self-test, a clear warm-up state, sensor-fault detection, automatic day/night brightness, progressive warning patterns, and individual calibration. It is also dramatically thinner and smaller. The light is the interface A CO detector should not go from “nothing” to one repetitive blink. CO-USB-A & CO-USB-C use light as a simple cockpit language: Startup: a short, friendly green/yellow/red self-test shows that the processor and LEDs are alive. Warmup: a breathing green pattern tells you the sensor is preparing — without pretending the unit is ready. Green: the detector is powered, warmed, receiving valid sensor data, and operating in the normal range. Yellow: elevated CO has been detected. Conditions have changed; pay attention and investigate. Red: the warning state. The red presentation becomes harder to ignore as CO rises rather than merely repeating the same small flash. Fault: a distinct red/yellow pattern replaces green if valid sensor data is lost. The unit does not lie with a reassuring green light. Built for real cockpits Bright sun. Dark ramp. Automatic brightness keeps normal indications restrained at night while keeping them visible in daylight. Alarm states retain a safe minimum brightness. No charging ritual. The detector powers with the aircraft USB source. There is no internal battery to forget, charge, or replace. No app to open. Status is on the product and in the pilot’s scan every time the aircraft powers up. Small enough to stay put. The ultra-thin case occupies very little cockpit space, and light from both sides gives more flexibility in orientation. Individually calibrated. Every production unit is calibrated by RADIANT. Units outside the acceptance limits are rejected rather than “corrected on paper.” What CO-USB-A & CO-USB-C are — and are not CO-USB-A or CO-USB-C are active visual detectors. They do not make sound, show a numeric ppm value, run from an internal battery, or connect to a phone. Mount one where you can see it. |
Technical Details
- Specification: CO-USB-A or CO-USB-C
- Product type: Active visual aviation carbon-monoxide detector
- Sensor: Digital electrochemical CO sensor
- Calibration: Individually gas-tested and calibrated before shipment
- Power: 5.0 V USB power through USB receptacle
- Indication: Progressive green / yellow / red LEDs; light on both PCB faces
- Brightness: Automatic ambient-light adaptation
- Warmup: Approximately 3 minutes
- Dimensions: 1.10" x 0.36"
- Weight:
- CO-USB-C: 5 grams
- CO-USB-A: 8 grams
- Current draw: 25 milliamperes, maximum
- Operating temperature / humidity: −10°C to +40°C (14°F to 104°F); 15% to 90% Relative Humidity, non-condensing
- Storage temperature: −20°C to +60°C (−4°F to 140°F)
- Sensor service life: Five years under sensor-manufacturer-stated conditions of 32°F to 95°F (0°C to 35°C) in air. Product replacement interval and service-life policy subject to final system validation.
- Warranty: Your new Radiant Technology instrument carries a three-year warranty. Please contact us at info@radiantinstruments.com should your product need warranty service.
- International warranty service is handled by our distributors. If you purchased your item from them, please contact them for support.
- Approvals: None; non-TSO / non-PMA portable advisory product
Saftey Note
- In our effort to enhance aviation safety, we've introduced several devices that provide indications of CO poisoning. For reference, see Carbon Monoxide, a Deadly Menace (faa.gov). For reference, see Carbon Monoxide, a Deadly Menace (faa.gov).
- CO-USB-A or CO-USB-C supplement, but DO NOT replace, aircraft exhaust and cabin-heat inspection, pilot judgment, the aircraft POH/AFM, or applicable safety procedures. If the product indicates a warning, follow the aircraft manufacturer’s procedures and current FAA safety guidance. A visual detector must be mounted where the pilot can see it.
