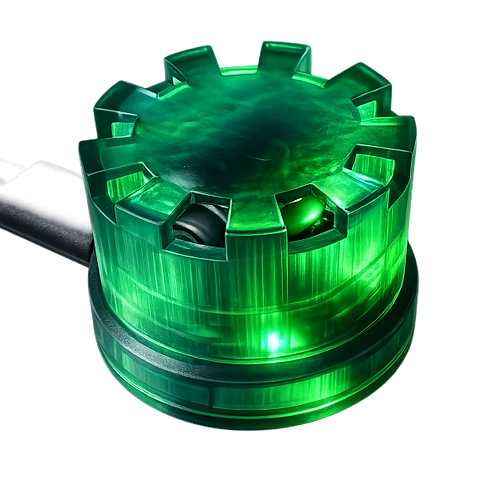

Radiant CO-Quick CO Detector
MFR Model# RI-2026-7-COQ
Overview
**NOT FAA APPROVED - FOR USE IN EXPERIMENTAL AIRCRAFT ONLY**CO-Quick is a compact, USB-C-powered carbon monoxide detector built to be easier to mount, easier to see, and easier to understand than conventional box-style units. It's translucent body glows steady green in normal operation, then transitions into a progressive red percolation-to-full-boil alert as CO exposure rises. With 360° visible illumination, generous real-air sensor openings, and a flat-sided puck form factor, CO-Quick brings fast, intuitive CO awareness to spaces where larger detectors feel bulky, awkward, or easy to ignore. Why CO-Quick?Too many CO detectors hide their status behind a tiny lamp on a plastic box, then suddenly demand your attention only when conditions have already become obvious. CO-Quick takes a different approach. The body of the detector becomes the indicator. Its translucent enclosure makes status visible from virtually any angle. Its sensing end is open to real ambient air. And instead of jumping straight from calm to alarm, CO-Quick shows a progressive visual transition that starts with slight nervous percolation and builds toward a full unmistakable boil. The result is a detector that feels alive, intuitive, and easy to trust at a glance. |
Features
- 360° visible illuminated enclosure. CO-Quick uses a translucent case with 8 green LEDs and 8 red LEDs so status can be seen from virtually any angle or mounting orientation.
- Analog-style escalating response. Instead of a dead binary feel, CO-Quick visibly comes alive as CO exposure builds. A light red percolation grows toward full red boil, giving users a more intuitive sense that conditions are changing.
- Open, fast-breathing sensor geometry. Generous openings at the sensing end expose the sensor to real ambient air, supporting quick response and quick clear-down.
- Tiny puck form factor. At only 1.25 inches in diameter, 0.85 inches tall, and 11 grams, CO-Quick is easy to place where bulkier detectors do not belong.
- Simple USB-C power. CO-Quick uses a USB-C receptacle for power only and ships with a USB-C to USB-C cable.
- Smart mechanical layout. The flat side mounts naturally to flat surfaces, while the sensing openings are located on the opposite end, where they remain exposed to the surrounding air.
- Status-at-a-Glance. Green means normal. Red means attention. The transition between them is immediate, visible, and hard to miss.
Specifications
- Product name. CO-Quick
- Product type. Visual carbon monoxide detector
- Sensor type. Electrochemical fuel-cell CO sensor
- Sensor model. Saiya SY-CO-28BPE
- Normal indication. Steady green
- CO indication. Progressive red visual alert, escalating from light percolation to full boil
- LED count. 8 green LEDs, 8 red LEDs
- Viewing geometry. 360° visible illuminated enclosure
- Enclosure. Translucent housing
- Power input. 5.0 VDC ±0.5 V
- Current draw. 10 mA
- Connector. USB-C receptacle
- USB-C function. Power only
- Included cable. USB-C to USB-C
- Startup inhibit / stabilization. Approximately 45 seconds
- CO indication mapping. 0 ppm CO: no CO indication
- 100 ppm CO: full visual indication
- Sensor detection range. 0 to 1000 ppm CO
- Sensor overload limit. 2000 ppm CO
- Sensor output. 1.5 to 3.5 nA/ppm
- Sensor repeatability. ±2%
- Sensor resolution. 0.5 ppm
- Sensor typical response time (t90). <60 seconds
- Long-term output drift. <2% per month
- Expected sensor life. 3 years
- Operating temperature. -20 to 50 °C
- Operating humidity. 15 to 90% RH
- Recommended load resistor. 1 kΩ
- Bias voltage requirement. None
- Mounting geometry. Flat mounting side with sensing openings on the opposite end
- Diameter. 1.25 in
- Height. 0.85 in
- Weight. 11 g
- Warranty. 3 years
- Compliance / approvals. None. Non-TSO. Non-PMA.
Benefits
- Normal condition. Steady green illumination.
- CO rising. Red visual activity begins lightly, then intensifies with increasing exposure.
- Full indication. At 100 ppm CO, CO-Quick reaches full red visual indication.
- Fresh air recovery. When returned to clear air, the indication drops back rapidly toward normal.
- Startup behavior. CO-Quick includes an approximately 45-second startup inhibit / stabilization period after power is applied.
Documents
In The Box
- CO-Quick detector
- USB-C to USB-C power cable
