Overview

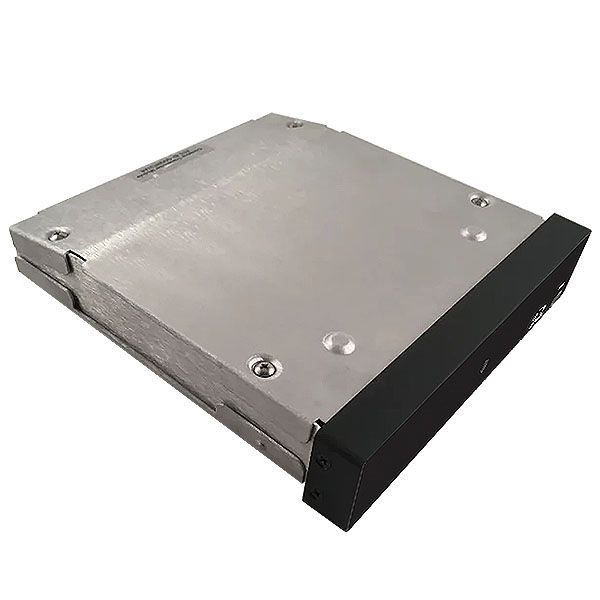

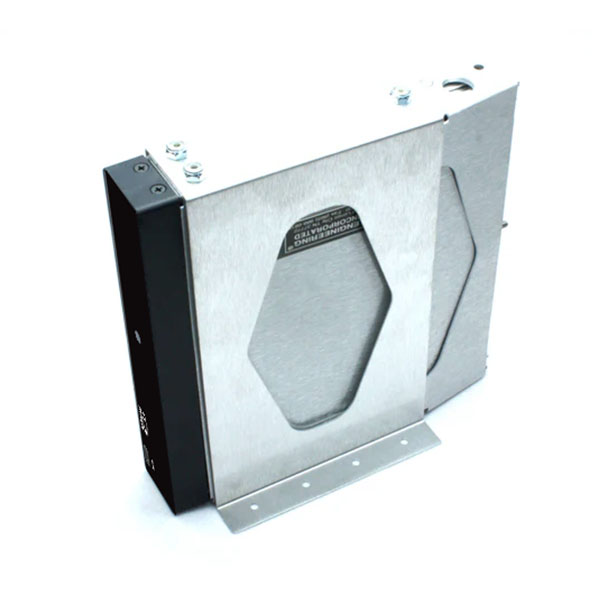

The SV-AUDIO-6BTR is a fully remote-mounted audio panel designed to save instrument panel space by integrating seamlessly with SkyView HDX. It supports 2–6 place operations, provides flexible control over multiple COM and NAV radios, and features Bluetooth music streaming, multiple stereo music inputs, and additional switched and un-switched inputs for additional avionics. It features the latest digital noise reduction, automatic squelch control, and spatial separation technologies to dramatically improve audio clarity, reduce cockpit fatigue, and enhance situational awareness.

Features

Supports 2-6 Place OperationFlexible control of up to two COM radios and two NAV radios, along with numerous extra switched and un-switched inputs for additional avionics and other audio sources.
Fully Remote Operation: Save critical space on your instrument panel with a fully remote-mounted audio panel designed for seamless control directly from SkyView HDX.
Trig Digital Noise Reduction (TDNR): Featuring IntelliVox® by PS Engineering, TDNR automatically selects the ideal squelch level and mic threshold to reduce cockpit noise. This improves the audio environment, aids pilot concentration and combats fatigue.
IntelliAudio® True Dimensional Sound: Enhance situational awareness when listening to two COM radios simultaneously, with spatial separation (COM 1 positioned at 10 o’clock and COM 2 at 2 o’clock).Trig Active Mute (TAM) further removes unwanted background noise from radio static, producing class leading audio quality.
Advanced Bluetooth® Connectivity: Stream music with ease with multiple Bluetooth connections.
Two wired stereo music inputs: Enjoy versatile audio flexibility with two additional independent music for seamless audio connectivity.
4 Un-switched Audio Inputs for SkyView HDX and other avionics audio sources.
Integrated USB-C Charging: Includes a high-power 15W USB-C port with built-in auto-protection against electrical shorts.
Monitor Mode: Automatically mutes non-primary radios when the primary radio is active.
Flexible Audio & Isolation Modes: Tailor your audio environment with three music mute modes (Mute On, Mute Off, Radio Mute) and three isolation modes (Pilot Isolate, Intercom All, Crew Isolate).
