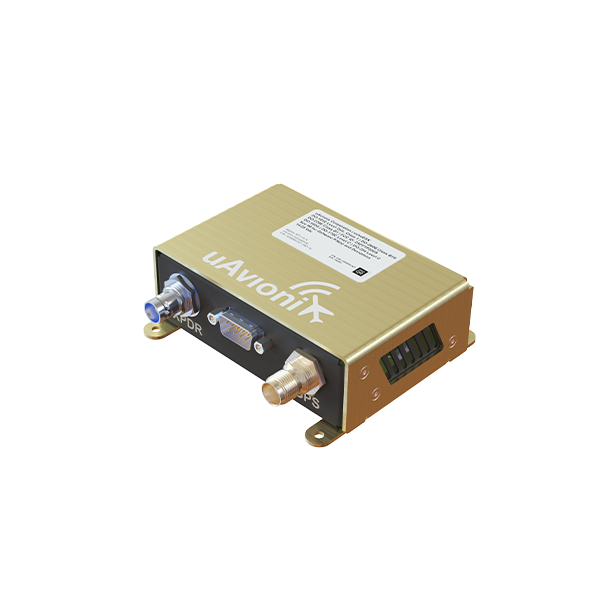

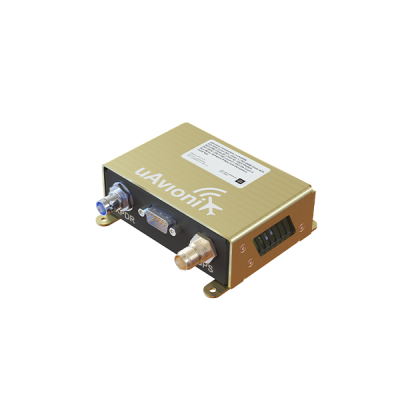

uAvionix echoESX Next-Gen Mode S ADS-B OUT Transponder

0 Reviews 0 Answered Questions
Select Model:
TSOExperimental
Select Bundle:
Unit Only AV-30 Bundle AV-20 Bundle
Price Includes GST
Quantity
Add to Wishlist

Overview

Meet echoESX EXP, the next-generation Mode S ADS-B OUT transponder designed for experimental aircraft. This remote-mounted transponder offers seamless integration with the AV-20-E and AV-30-E displays, reducing cockpit clutter while delivering full 1090 MHz ADS-B compliance.

Designed with a compact form factor, echoESX EXP simplifies installation, eliminates the need for bulky avionics, and complies with rigorous avionics standards (DO-181E, DO-260B, DO-229E, DO-178C, DO-254, DO-160G). Built on uAvionix’s proven technology, echoESX EXP is the easiest Mode S transponder install or modernizing your aircraft.

echoESX from uAvionix is a state-of-the-art remote mount Mode S ADS-B Out transponder integrated with a high-performance GPS receiver. Designed for both experimental and certified aircraft, echoESX provides seamless cockpit integration, simplified installation, and reliable ADS-B compliance, significantly enhancing situational awareness and operational efficiency.

Streamlined Integration
Designed to integrate seamlessly with AV-30-E and AV-20-E displays, echoESX also features an internal GPS receiver—eliminating the need for a separate GPS installation. For certified aircraft, an optional TSO-certified GPS antenna from uAvionix completes the package.

Easy Retrofit
Designed for quick retrofit installation that clears up your panel compared to traditional ADS-B Mode S transponders, echoESX is an easy replacement for your existing Mode C transponder with the ability to use your existing installed monopole transponder antenna.

Features

  • Remote-Mount Flexibility - Place wherever makes the most sense for your aircraft. The echoESX EXP’s expands beyond nav-light installation, offering maximum versatility
  • Hassle-Free Installation - Replace your transponder without major modifications—eliminates bulky transponders and blind encoders saving pounds behind the panel and gallons in the tank
  • Built-In SBAS GPS Receiver - No need for additional GPS hardware— echoESX EXP meets ADS-B OUT requirements with an included SBAS GPS receiver.
  • User-Friendly Setup - Quick setup and intuitive configuration via AV-30-E and AV-20-E displays
  • Ecosystem Integration - Enhanced interoperability within the uAvionix ecosystem (AV-Link, AV-HSI, ForeFlight Sentry)
  • Compact Remote-Mount Solution - The echoESX combines a space-saving remote-mount design with ultra-efficient operation. Its minimal Size, Weight, and Power (SWaP) profile makes it an ideal upgrade from bulky legacy transponders, reducing strain on your aircraft’s electrical system.
  • Regulatory Compliant - Meets ADS-B Out regulatory requirements per FAA standards (14 CFR 91.227)
  • Built for Durability - Robust environmental durability (DO-160G compliance)
  • Precision Positioning - Integrated SBAS GPS Receiver providing precise positioning for reliable operation
