- Photo may represent series and not specific product
- SHARE

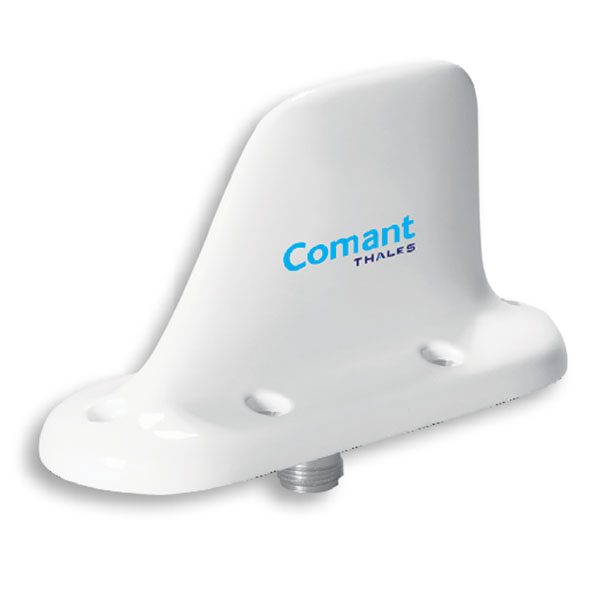

Comant CI 150-301 Transponder Cellular WiFi Umts Antenna
$1708.30/Each
Price Includes GST
Part# 11-21417
Overview
|
Comant CI 150-301 Transponder Cellular WiFi Umts Antenna Comant’s six through-hole blade-style mount transponder / cellular / Wi-Fi / UMTS antenna with TNC port. Intended for Wi-Fi applications using 11.802 data protocol. Frequency range supports ADS-B Out and DME applications, including wireless intranet reception and data transfer while the aircraft is parked at the ramp. Suitable for top mounting for light & heavy fixed-wing/multi-engine, helicopter, and business jet aircraft. |
Applications
- Heavy Fixed Wing Single Engine
- Heavy Fixed Wing Multi-Engine
- Helicopter
- Business Jets
- Warranty: 1 year
- Always consult your installation shop for best
- application.
Specifications
Electrical Specifications:Frequency 700-799/800-849/
850-1029/1030-1090/
1091-2700 MHz
VSWR 2.8:1 2.2:1 2.0:1 1.5:1 2.0:1
Max
Polarization Vertical
Radiation Pattern Equivalent of 1/4 wave stub
Impedance RF 50 Ohms
Power RF 100 Watts Max
1,000 Watts Peak
Mechanical:
Weight 0.50 lb.
Height 3.40 in.
Finish Polyurethane Paint White
Connector TNC (Female)
Federal Specifications:
FAA TSO C74d, DO-160G. [F2X]
ACA[U2 (F,F1)]XSXXXSXXXX
[XXX][XX]X[XXXXXX][XX]XXX
RTCA Environmental DO-160G
Frequencies Covered
- (S Band Wi-Fi Datalink, Public Service,
- Commercial Wireless, ADS-B Out, DME)
- 700-799 MHz
- 800-849 MHz
- 850-1029 MHz
- 1030-1090 MHz
- 1091-2700 MHz
