- Photo may represent series and not specific product
- SHARE

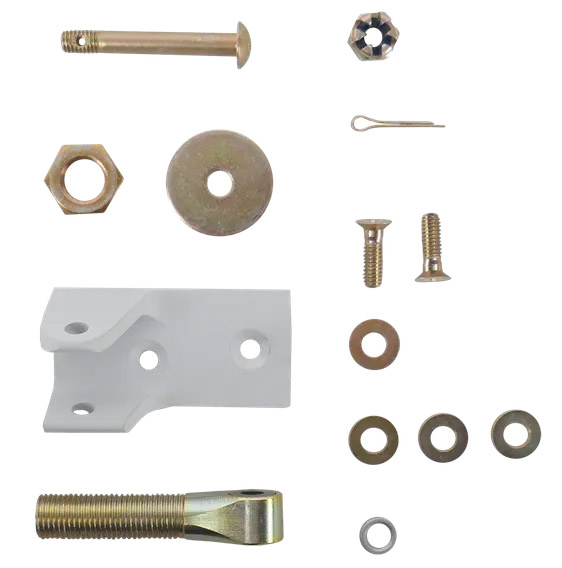

McFarlane Aviation Cirrus Door Hinge Kit
Overview
|
FAA-PMA approved for SR20, SR22, and SR22T aircraft The upper and lower door hinges feature an advanced ceramic-based coating that enhances wear resistance and provides exceptional corrosion protection! This superior coating ensures greater longevity and improved resistance to harsh conditions. Even the upper hinges — often exposed to standing water due to poor drainage, are better protected, offering increased durability and reliability over time.
|
Eligible Aircraft
| Make | Model | Start S/N | End S/N | Quantity Per Aircraft |
|---|---|---|---|---|
| Cirrus | SR20 | 20-1005 | 20-1423 | 1 |
| Cirrus | SR20 | 20-2339 | 20-99999 | 1 |
| Cirrus | SR22 | 22-0002 | 22-0821 | 1 |
| Cirrus | SR22 | 22-4435 | 22-99999 | 1 |
| Cirrus | SR22T | 22T-0001 | 22T-1472 | 1 |
| Cirrus | SR22T | 22T-1473 | 22T-99999 | 1 |
In The Box
| Upper Left Hinge Kit P/N CIR-HNG-UPLH | |
|---|---|
| Part Number | Description |
| MC20299-001 | Hinge, Upper Fuselage, LH |
| MC21933-004 | Hinge Pin |
| MC21845-002 | Rod End |
| Screws, Washers, Nuts, and Cotter Pins | |
| Lower Left Hinge Kit P/N CIR-HNG-LWLH | |
| Part Number | Description |
| MC20300-001 | Hinge, Lower Fuselage, LH |
| MC21845-002 | Rod End |
| Washers, Nuts, Shims, Spacer, Cotter Pins, Bolt, and Attaching Hardware | |
| Upper Right Hinge Kit P/N CIR-HNG-UPRH | |
| Part Number | Description |
| MC20299-002 | Hinge, Upper Fuselage, RH |
| MC21933-004 | Hinge PIN |
| MC21845-002 | Rod End |
| Screws, Washers, Nuts, and Cotter Pins | |
| Lower Right Hinge Kit P/N CIR-HNG-LWRH | |
| Part Number | Description |
| MC20300-002 | Hinge, Lower Fuselage, RH |
| MC21845-002 | Rod End |
| Washers, Nuts, Shims, Spacer, Cotter Pins, Bolt, and Attaching Hardware | |
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
