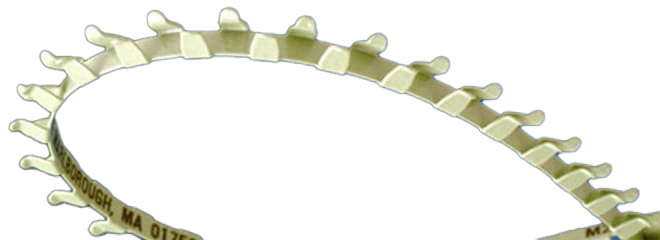

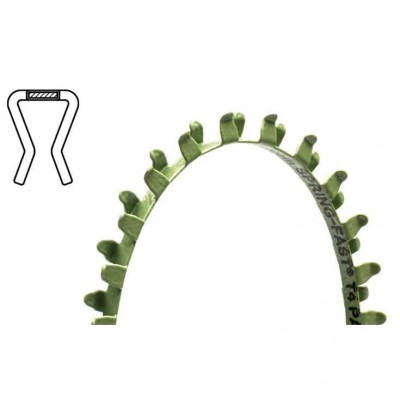

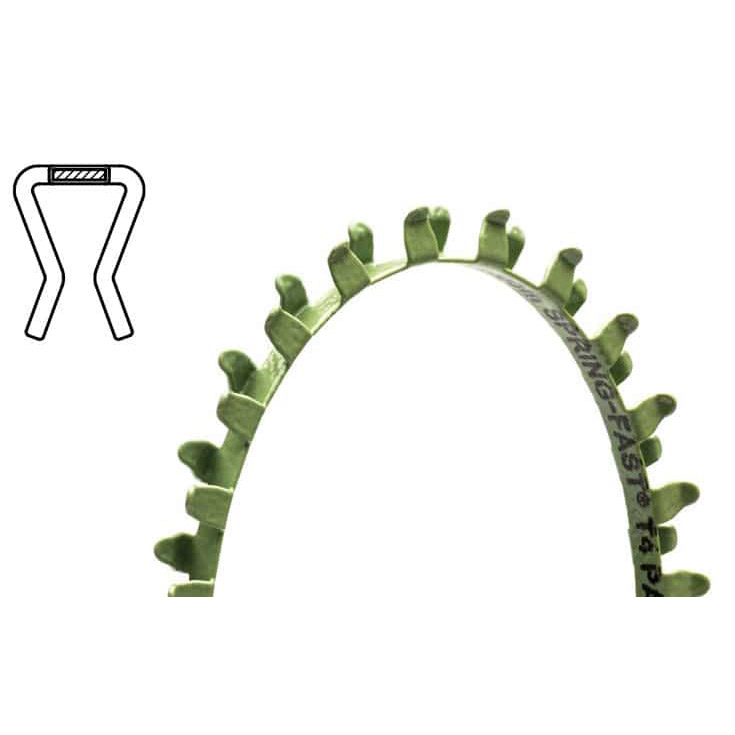

DTi Spring-FastŪ Grommet Edging - M22529/1 Series

From $9.68 to $13.75
Prices below incude GST
MFG Number Sheet
Thickness
PN Buy / Ft.
M22529/1-1R.025-.036
05-06502
Quantity
M22529/1-2R.036-0.63
05-06504
Quantity
M22529/1-3R.059-0.74
05-06506
Quantity
M22529/1-4R.070-.093
05-06508
Quantity
M22529/1-5R.090-.111
05-06510
Quantity
M22529/1-8R.240-.260
05-06516
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The MIL SPEC Series per NASM22529/1 has the lowest profile of any wire protection grommet edging available.

Its steel substrate is encapsulated with lubricious fusion bonded epoxy for superior abrasion and chemical resistance.

It has enhanced grip strength and is 2 axis conformable.

Features

  • Superior performance: encapsulated stainless steel core: outperforms plastic grommets.
  • Snap on installation lowers costs 49% vs. grommets with glue. Watch the 4 min. video below.
  • Improves efficiency 9.5x – due to fewer steps in workflow.
  • U.S. Defense Dept. FAA Acceptable: NASM22529/1 and National Stock Number: Federal Supply Code 5325.

Specifications

Grommet Series Castle Geometry Flexibility Polymer Coating Extra Cushion 100% TPE Encapsulation High Heat Mil Spec Application Method Notes
NASM22529/1 Alternating 2 axis Yes No No 293°F/145°C Yes Snap on/No adhesive No cure time delay
