Tekton Flex Head Quick-Release Ratchet

0 Reviews 0 Answered Questions
Select Size:
1/4 Inch Drive X 6 Inch 3/8 Inch Drive X 8 Inch 3/8 Inch Drive X 12 Inch 1/2 Inch Drive X 10-1/2 Inch
Price Includes GST
Quantity
Add to Wishlist

Overview

Tekton Flex Head Quick-Release Ratchet

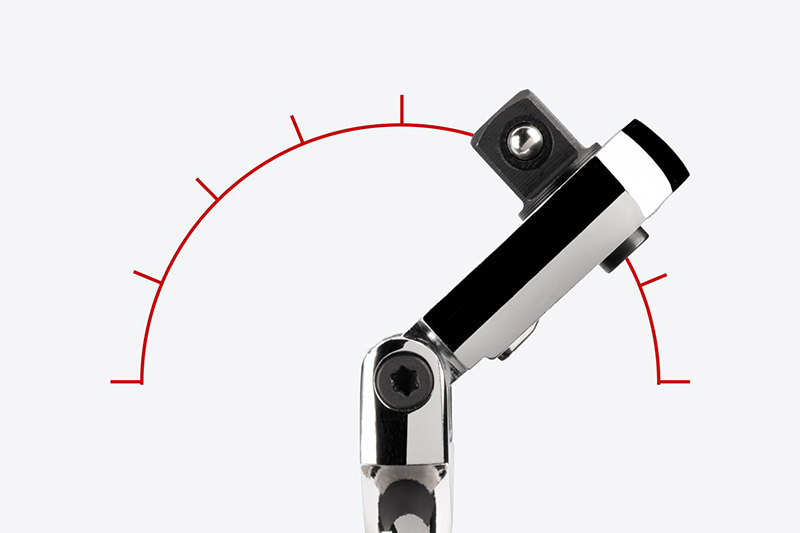

180° Flex, 9 Positions
The flex head sweeps through 180 degrees, snapping to nine different detent angles to reach around obstacles. A spring-actuated pawl engages with well-defined teeth to hold the head in position.



90-Tooth Gear = 4º Swing Arc
The single half-moon pawl maintains 9 teeth engaged with the gear at all times, ensuring that it won't slip or skip under stress.

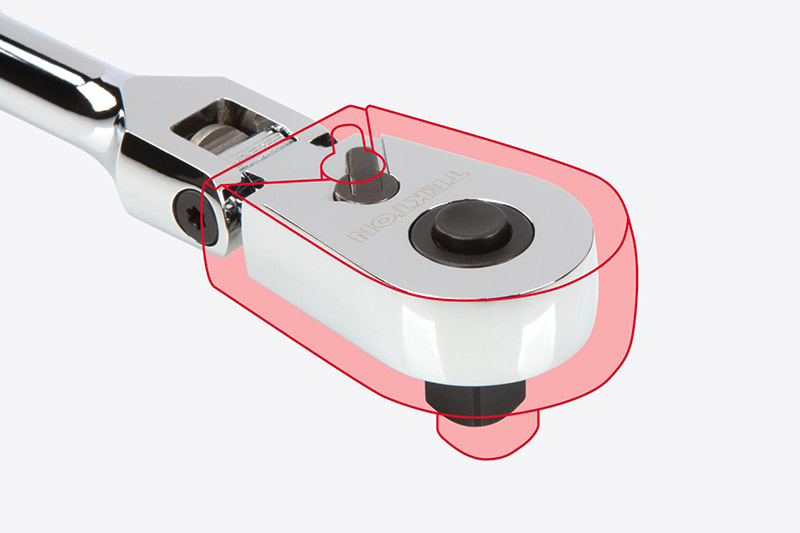

Ultra-Compact Head
The box end is offset 15 degrees, creating clearance for your fingers and making it easier to reach around obstructions.

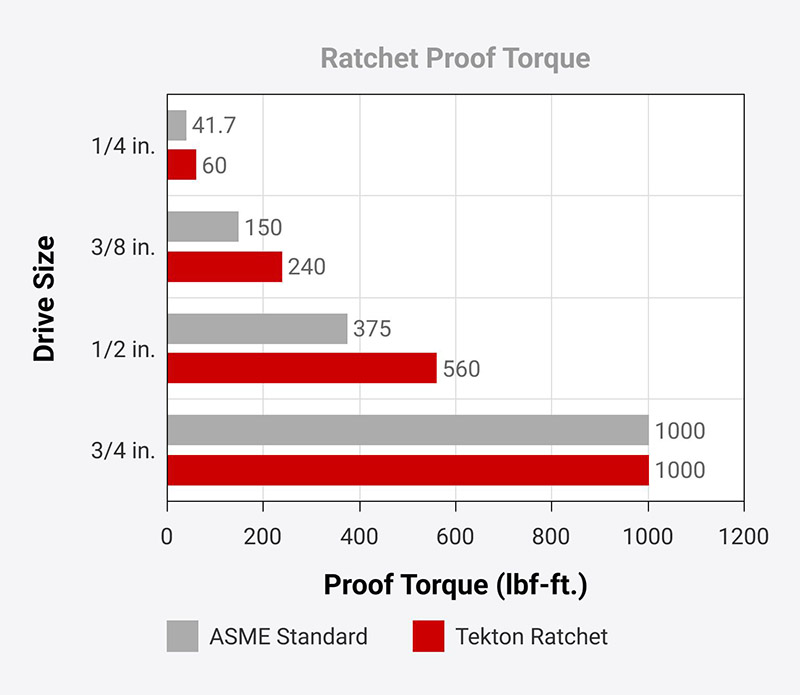

Proof Torque
Our ratchets meet (and most far exceed) the industry standard for Proof Torque, a measure of strength verified by a single-cycle test that applies torque until the specified value is reached without failure or any permanent deformation.
Data from: “Category 10, Type 1, Class 2 Handles, Ratchet, Reversible.” ASME B107.110-2019

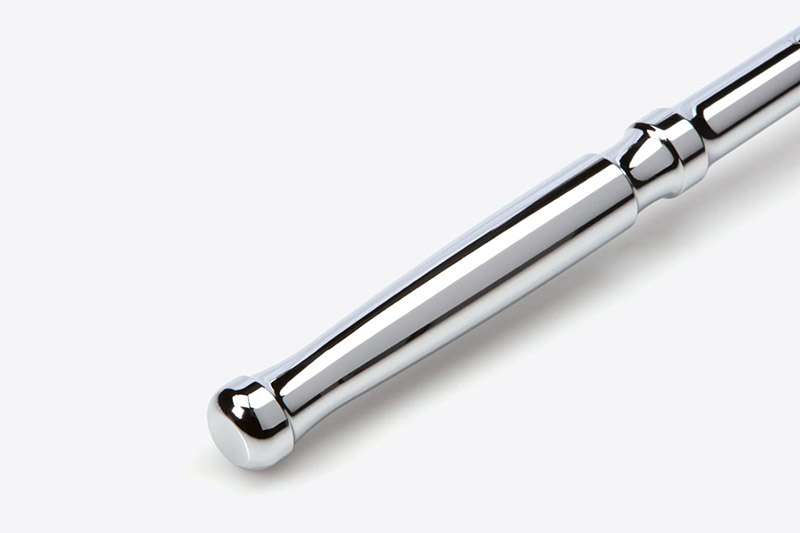

Working Handle Length
The finger groove has pronounced interior edges for traction and control for any finger placement. The pommel at the end of the handle keeps your hand from slipping off and is rounded for comfort.



Parts and Assembly
