Tekton Drive 90-Tooth Dual-Direction Micrometer Torque Wrench

Overview

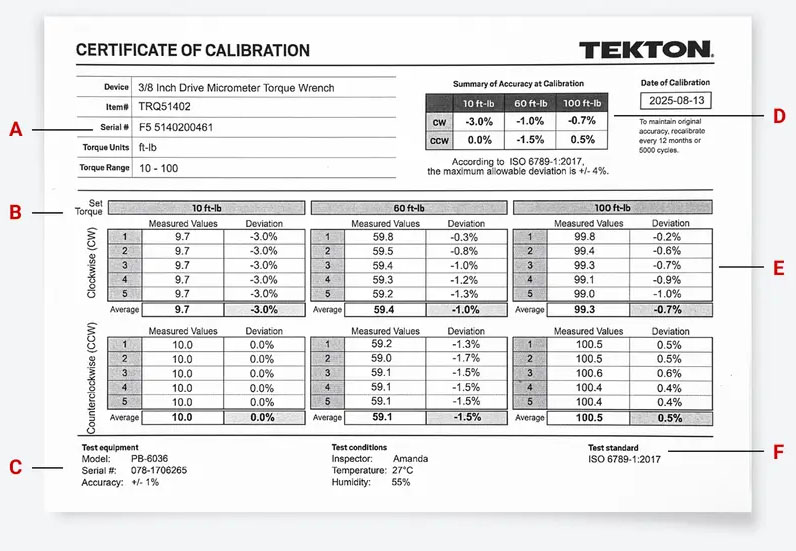

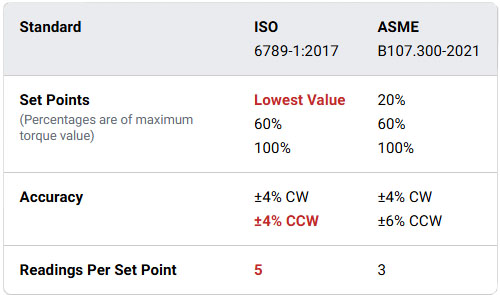

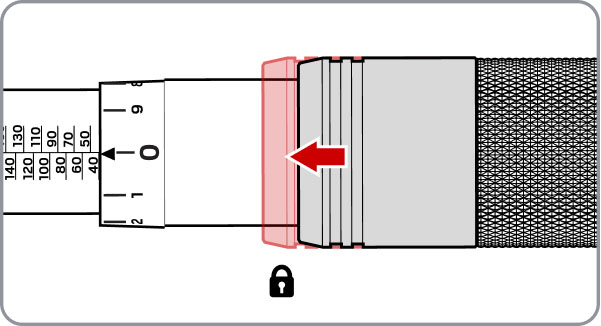

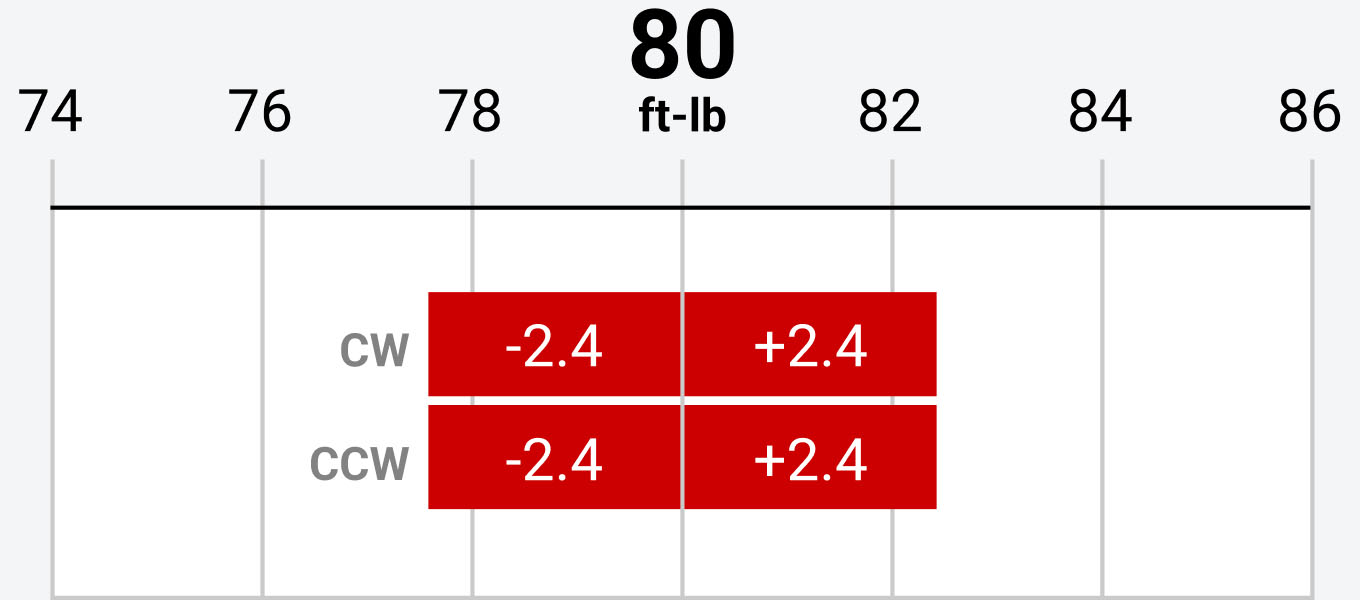

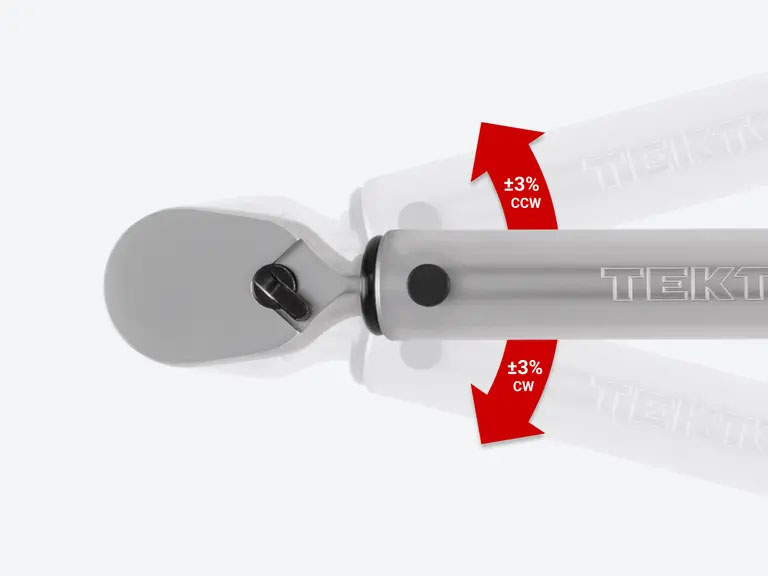

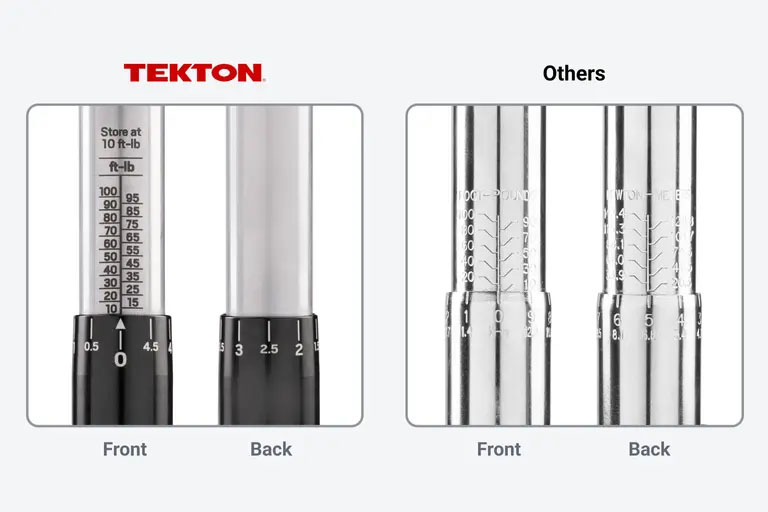

Apply Torque with Confidence Every feature was designed to instill confidence in the wrench's accuracy and control during operation. Calibrated to be accurate within ±3% for both clockwise and counterclockwise directions. Certified to the ISO standard for the full listed range (10 - 100 ft-lb), unlike torque wrenches calibrated to ASME standards, which do not require calibration below 20% of the listed range. 90-tooth ratchet head with minimal swing arc (4º per tooth). Accurate micrometer scale with high-contrast markings. Locking collar for a positive hold on the target torque setting. Coarse handle knurling and centerline groove for a sure grip Accurate Within ±3% for Both Directions The actual calibration accuracy will be stated on the certificate for your wrench, and will be within ±3%. Example of maximum expected error: Full-Range Calibration Using the ISO Standard This torque wrench is calibrated to the ISO standard. The ASME standard is more commonly used, but the ISO requirements are stricter in a few key ways: ISO requires the lowest marked value on the scale to be tested. ASME starts testing at 20% of the range, which is often higher than the lowest marked value. ISO requires clockwise and counterclockwise tests to match, whereas ASME allows counterclockwise to be less precise. ISO requires 5 readings for each set point, whereas ASME only requires 3 readings for each. Serialized Certificate of Calibration A. Matches serial number engraved on the torque wrench B. Tested from the lowest to highest values C. Test equipment and conditions D. Quick summary of calibration tests E. Five tests for each set point F. Standard 90-Tooth Fixed Ratchet Head The single half-moon pawl maintains 9 teeth engaged with the gear at all times, so it won't skip under stress. The internal components are the same design and construction as all of our 90-tooth ratchets. 4º Swing Arc Reduces Length of Travel Having more teeth in the ratchet (B) results in less travel at the end of the wrench handle (D) between each tooth click. Easy-to-Read Micrometer Scales Single-unit scale for simplicity (ft-lb). High-contrast laser markings with bold fonts. Satin finish on the body to reduce glare. Numbers on the main scale are positioned close to the centerline to be readable without rotating the wrench. Indicator lines on the main scale are straight, not offset. Spring-Loaded Collar Locks Your Setting The collar springs into a locked position that holds your setting and prevents accidental movement during operation. There is no thumb knob to tighten at the end of the handle. Coarse Knurling for a Secure Grip A deep, sharp-cut diamond pattern on the surface of the handle creates a coarse texture that won’t slip in your hand. Design and Components Proper Storage: To maintain calibration, store at the lowest setting to relax the adjustment spring. Full-Featured Case The case provides safe transport for the torque wrench and protects it from drops. Each item in the case has its own place and is held securely. The case is made of high-density polyethylene (HDPE), and the latches are polypropylene (PP). Removable Lid for Shallow Drawers Top and Bottom Tracks Allow Stacking Textured Surfaces Provide a Firm Grip

12-07074 Specs

• Drive Size: 3/8 in.

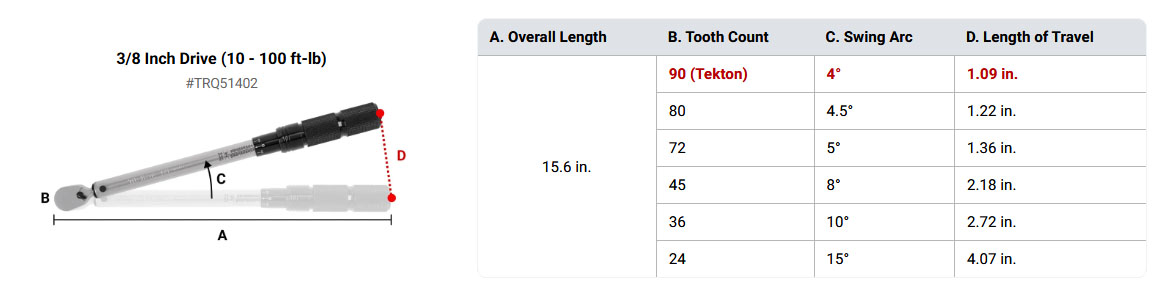

• Tooth Count / Swing Arc: 90-Tooth / 4º
• Head Style: Fixed
• Torque Range: 10 - 100 ft-lb
• Torque Calibration Test Points: 10, 60, 100 ft-lb
• Unit Scale: ft-lb
• Minimum Increment: 0.5 ft-lb
• Measuring Direction: Clockwise, Counterclockwise
• Torque Accuracy: Within ±3% CW/CCW
• Feedback: Mechanical Click
• Standards: (meets or exceeds)
• ISO 6789-1:2017 / ASME B107.300-2021

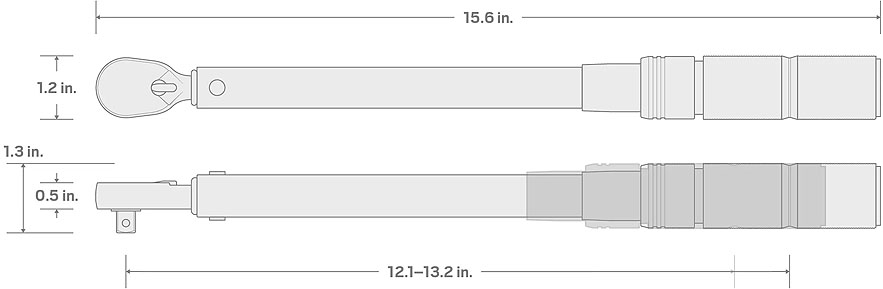

• Effective Length: 12.1 - 13.2 in.
• Overall Length: 15.6 in.
• Weight: 1.8 lb.
• Country of Origin: Taiwan

12-07076 Specs

• Drive Size: 1/2 in.
• Tooth Count / Swing Arc: 90-Tooth / 4º
• Head Style: Fixed
• Torque Range: 40 - 300 ft-lb
• Torque Calibration Test Points: 40, 180, 300 ft-lb
• Unit Scale: ft-lb
• Minimum Increment: 2 ft-lb
• Measuring Direction: Clockwise, Counterclockwise
• Torque Accuracy: Within ±3% CW/CCW
• Feedback: Mechanical Click
• Standards: (meets or exceeds)
• ISO 6789-1:2017: ASME B107.300-2021
• Effective Length:22.5 - 23.2 in.
• Overall Length: 26.1 in.
• Weight: 3.59 lb.
• Country of Origin: Taiwan

12-07075 Specs

• Drive Size: 1/2 in.
• Tooth Count / Swing Arc: 90-Tooth / 4º
• Head Style: Fixed
• Torque Range: 40 - 200 ft-lb
• Torque Calibration Test Points: 40, 120, 200 ft-lb
• Unit Scale: ft-lb
• Minimum Increment: 1 ft-lb
• Measuring Direction: Clockwise, Counterclockwise
• Torque Accuracy: Within ±3% CW/CCW
• Feedback: Mechanical Click
• Standards: (meets or exceeds)
• ISO 6789-1:2017 / ASME B107.300-2021
• Effective Length:22.5 - 23.2 in.
• Overall Length: 19.1 in.
• Weight: 2.77 lb.
• Country of Origin: Taiwan
