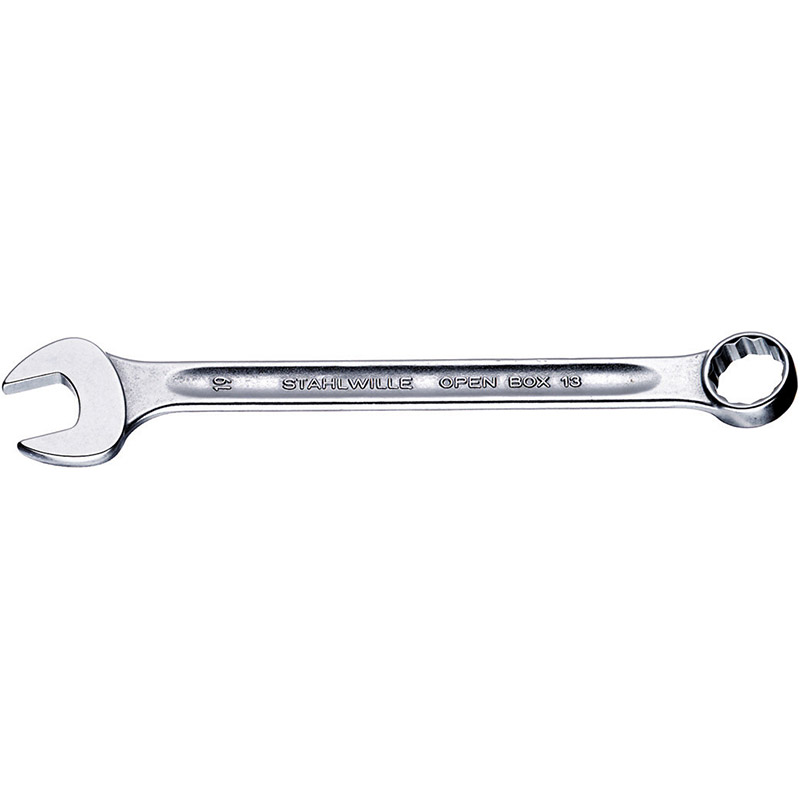

STAHLWILLE Combination Wrench Sets

0 Reviews 0 Answered Questions
Select Set:
8 Piece (7/16in - 7/8in)10 Piece (1/4in - 3/4in)20 Piece (1/4in - 1-1/4in)
Price Includes GST
Quantity
Add to Wishlist

Overview

Double-T profile
Our ring, open-ended and combination wrenches have an additional recess in the middle of the tool. Similar to the principle of a double-T beam, this provides a tremendous load capacity and maximum strength whilst reducing weight.

Thin-walled rings
The thin-walled diameter of our rings makes it easier to work in confined spaces. The ring wall is deeper than standard nuts, which prevents jamming.

Offset Shaft Design
Our wrenches are specially designed with additional reinforcement in the load zones where the greatest amount of force is transmitted - namely where the jaw meets the shank - in order to prevent deformation.

Features

  • Imperial, identical end sizes in cardboard packaging

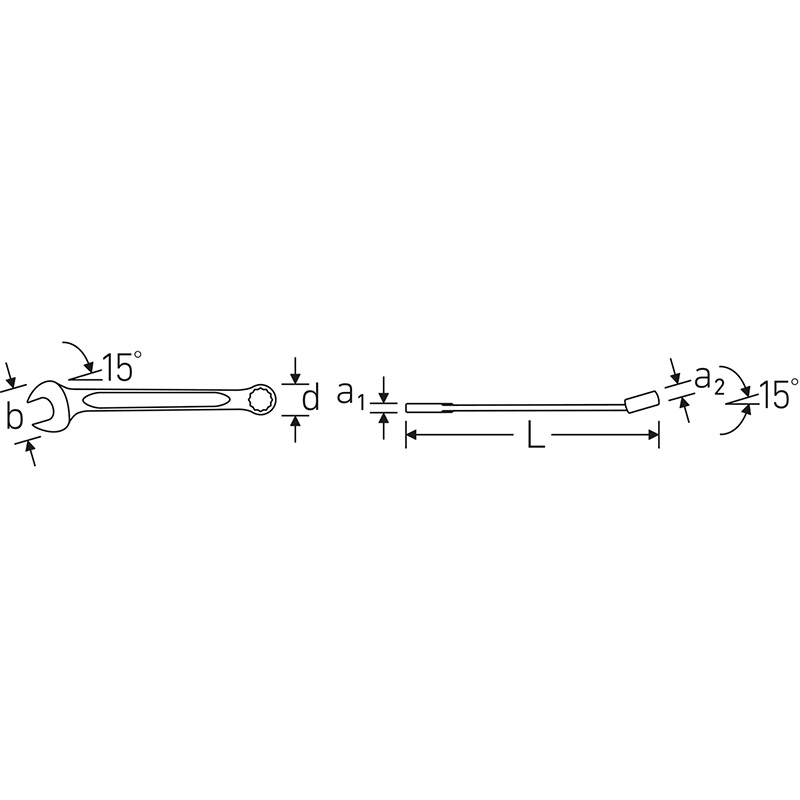

  • Ring-end cranked 15°, jaw angled 15°
  • Reinforcement between jaw and shaft
  • Durable, slim and lightweight design
  • Extremely resilient and durable
  • High flexural strength due to double-T profile
  • STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
  • Drop-forged, hardened, and cooled in an oil bath
  • Chrome Alloy Steel, chrome-plated
  • DIN 3113 Form A/ISO 7738 Form A

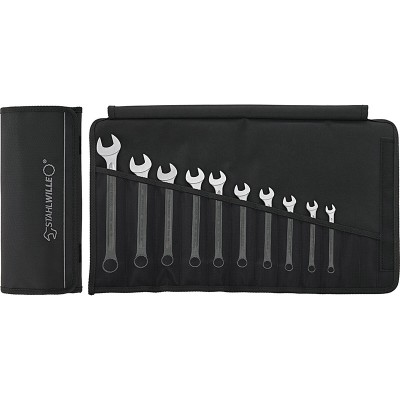

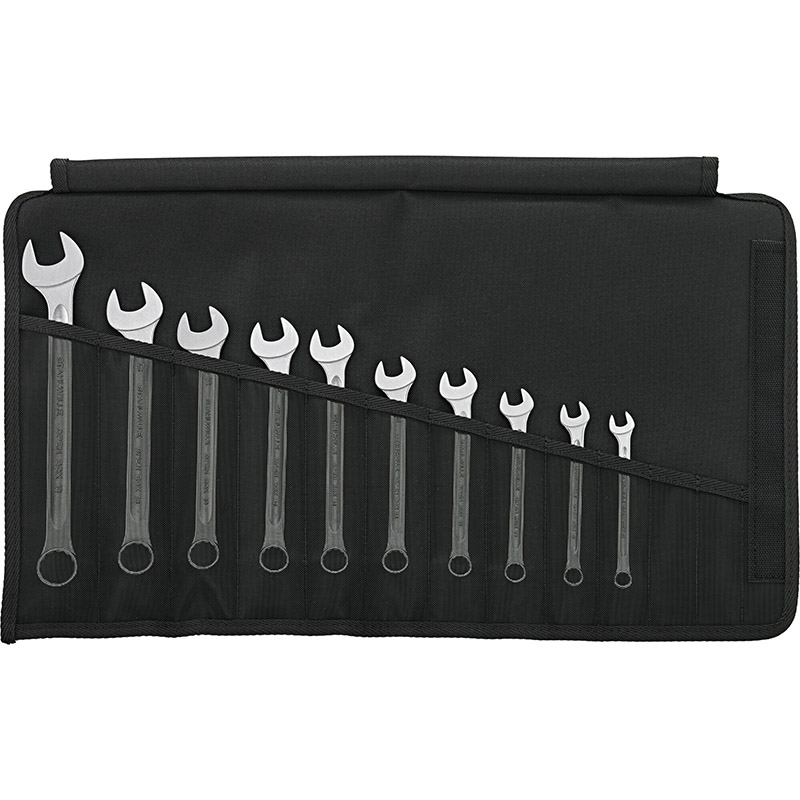

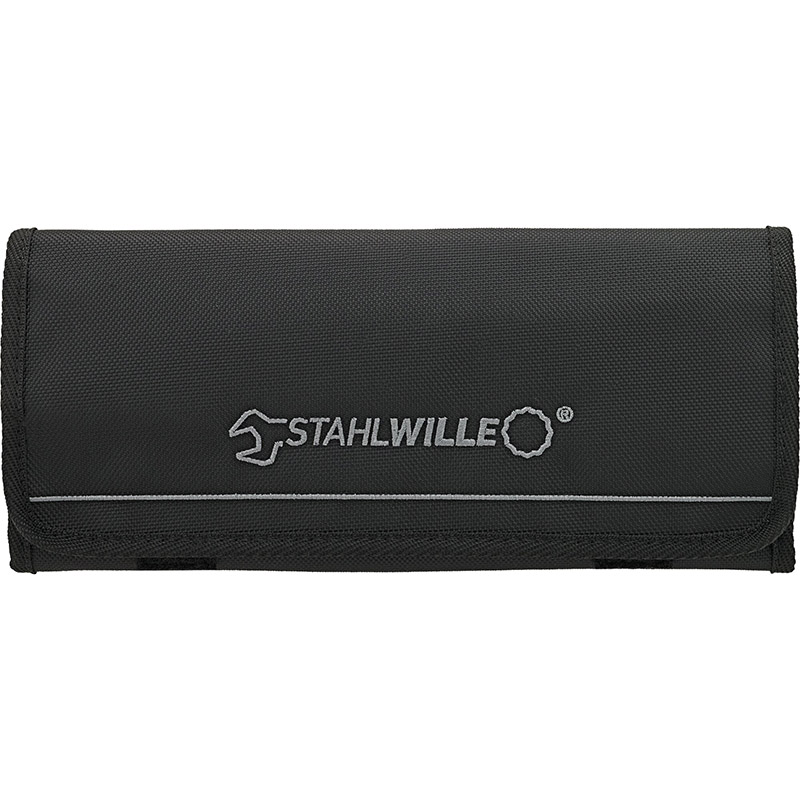

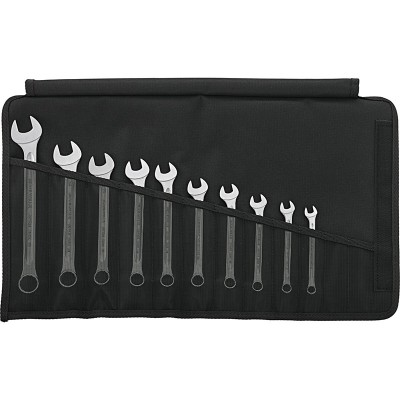

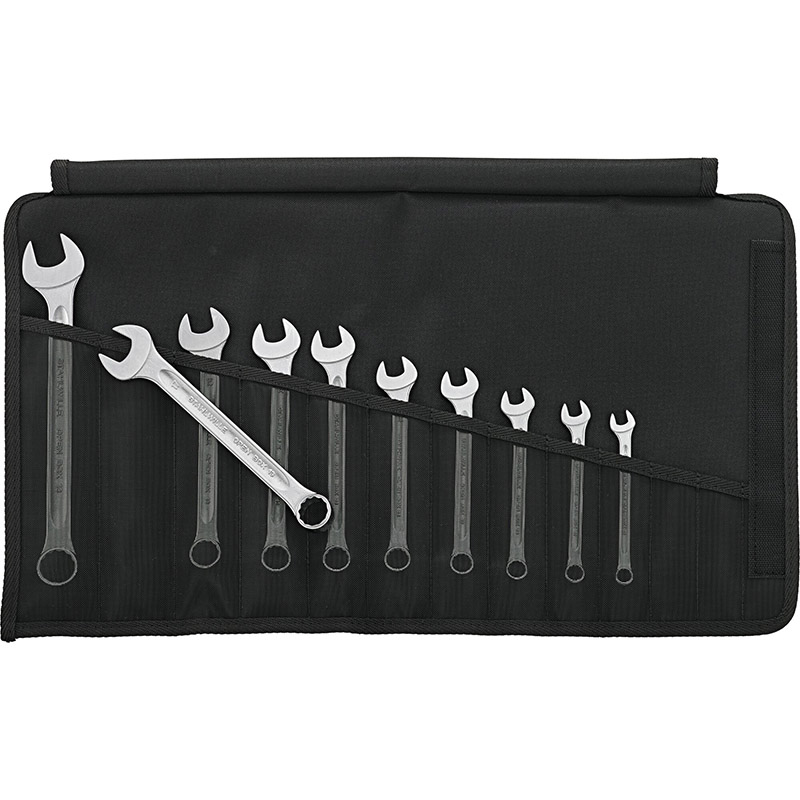

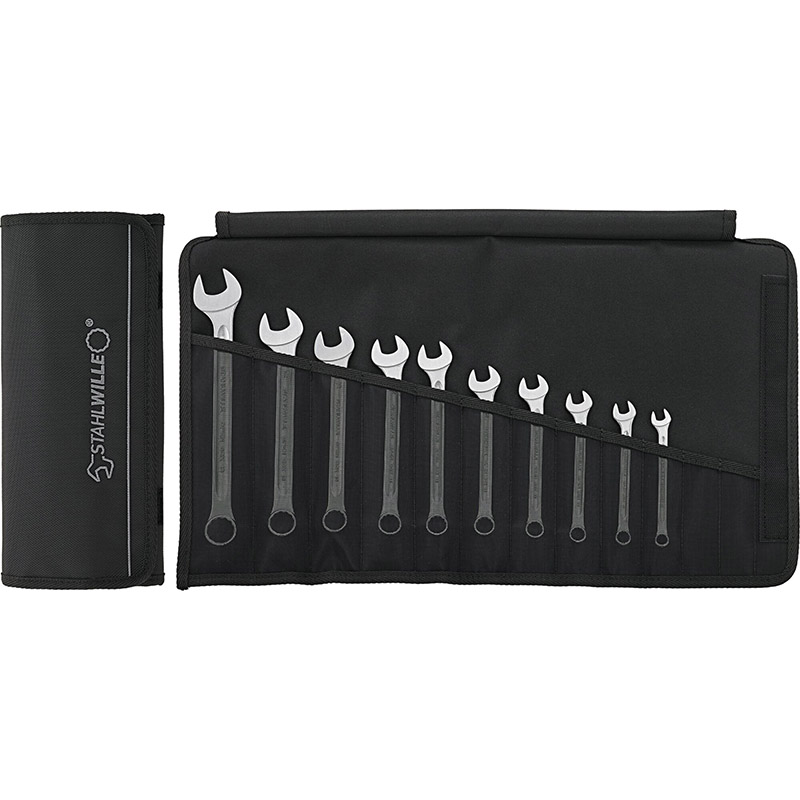

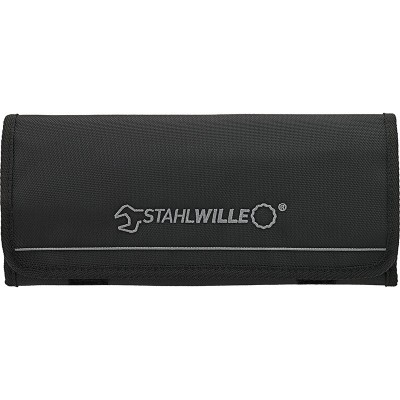

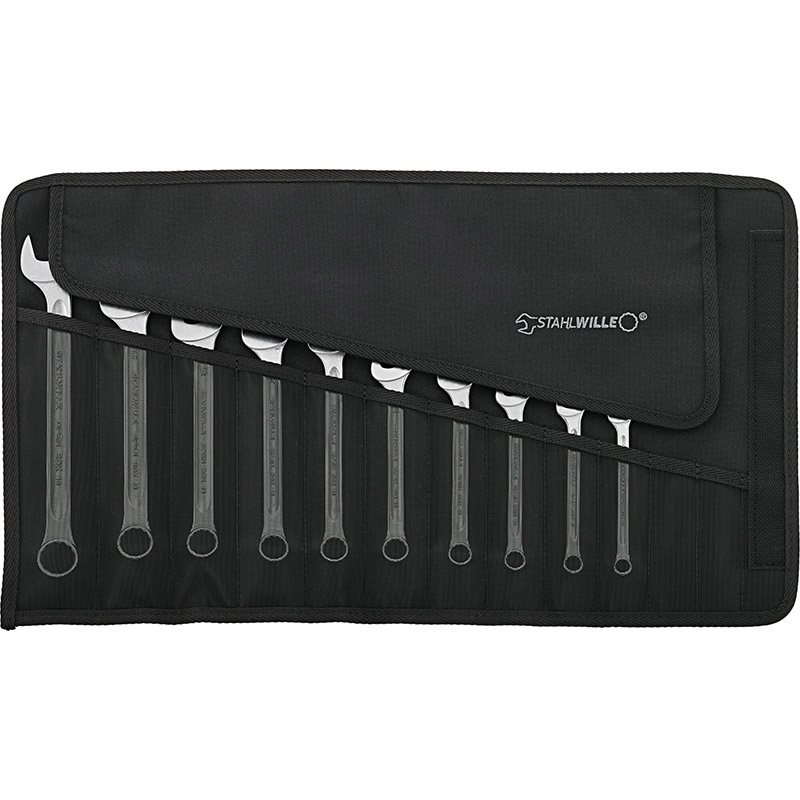

  • In robust polyester roll-up tool pouch with hook-and-loop fastener
  • Mesh inserts allow visibility of the tools
  • A compact storage solution to keep your tools safe
  • Embroidered STAHLWILLE logo

Specifications

Product no. Model Contents Model No. Number of tools Weight (g)
96404803 OPEN BOX 13a 7/16; 1/2; 9/16; 5/8; 11/16; 3/4; 13/16; 7/8 " 13a/8 8 900 g
96404804 OPEN BOX 13a 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 25/32; 13/16; 7/8; 15/16; 1; 1 1/16; 1 1/8; 1 1/4 " 13a/20 20 3180 g
96404812 OPEN BOX 13a 1/4; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16; 5/8; 11/16; 3/4 " 13a/10 10 750 g

Benefits

  • Non-slip surface
  • STAHLWILLE wrenches have a high-quality surface finish with good grip, making it
  • possible to work safely and efficiently, even with greasy hands. The non-slip property improves control during handling
  • A solution for every situation.
  • Our combination wrenches are available in different versions (metric, imperial, long, with Spline-Drive profile) and as sets in textile bags, roll-up tool bags or TCS inlays.
