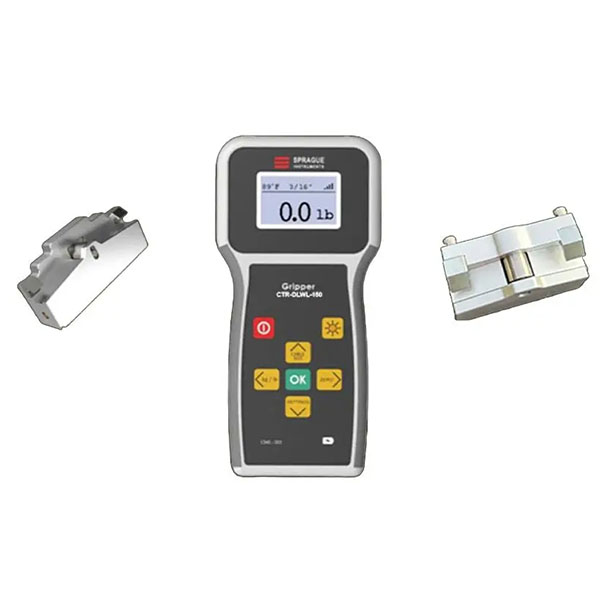

The Gripper III Wireless Cable Tension Meter With Dual Sensor Heads In One Case
$4511.10/Each
Price Includes GST
Part# 12-07000
MFR Model# CTR-DHWL-150
MFR Model# CTR-DHWL-150
Overview
|
One Kit. Two Sensors. Complete Coverage.
The Sprague Instruments CTR-DHWL-150 is the complete wireless digital cable tension measurement kit — one display unit with two interchangeable sensor heads covering the full range of standard aircraft cable tension measurement in a single carrying case. The small sensor head covers 10–30 lbs at ±3% full-scale accuracy for bridle and autopilot servo cables. The large sensor head covers 10–150 lbs at ±2% full-scale accuracy for primary and secondary flight control cables. Both sensors support all five standard cable sizes from 1/16" through 3/16", connect to the shared display via Bluetooth 4.2 up to 10 meters away, and display real-time tension in pounds or metric units with live temperature and battery strength — no calibration chart, no riser selection, no conversion step required. Two Sensors. One Display. Full Gripper Platform. A technician working on both autopilot servo bridle cables and primary flight control cables needs two different tension ranges to do both jobs accurately. The CTR-DHWL-150 provides both in a single kit. The small sensor (10–30 lbs, ±3% FS) is calibrated for the light tension zone where bridle cables operate — at that range, a 10–150 lb instrument would place bridle cable readings below 20% of full scale, where small absolute errors represent large percentage errors. The large sensor (10–150 lbs, ±2% FS) is calibrated for primary and secondary flight control cable work, matching the standalone CTR-GAWL-150's capability exactly. The display pairs automatically with whichever sensor is powered on — swap the sensor head, power on the new sensor, and the display immediately begins showing data from the active unit. Both sensors transmit real-time tension data while the technician adjusts turnbuckles or servo connections, allowing live monitoring without moving away from the cable. The shared display shows live temperature in °C or °F alongside the tension reading, eliminating the need for a separate thermometer when applying temperature correction factors to tension specifications. One adapter charges all three units — display, small sensor, and large sensor — from a single 5V supply. |
Features
- Small sensor: 10–30 lbs, ±3% FS — bridle and autopilot servo cables; appropriately scaled for light-tension specifications
- Large sensor: 10–150 lbs, ±2% FS — primary and secondary flight control cables; identical to CTR-GAWL-150
- Both sensors: 1/16"–3/16" — all five standard aircraft cable sizes covered by both heads
- Bluetooth 4.2 — display pairs with the active sensor; real-time data up to 10 meters
- Live temperature display — selectable °C or °F; integrated with tension readout on the shared display
- Real-time adjustment monitoring — watch tension change while rigging; applicable to both sensors
- ~4,000 readings per sensor charge (each); ~10,000 display readings (backlight off); one adapter charges all
- Auto-sleep after 5 minutes idle — on each sensor independently
- Factory pre-calibrated — all three units ready for immediate use

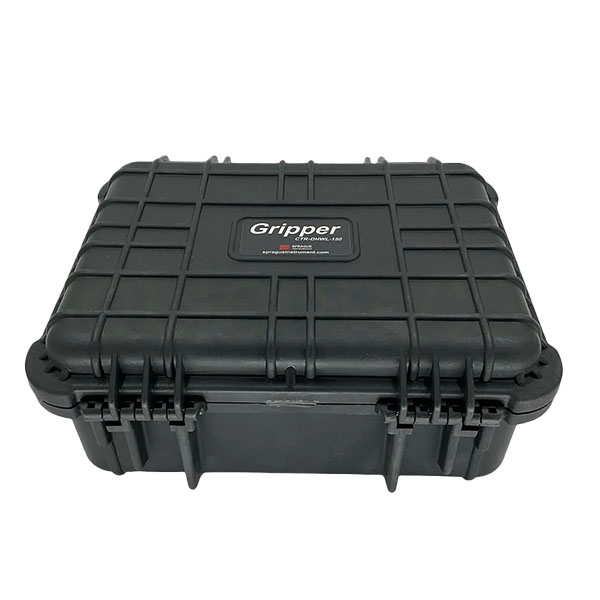

- Padded carrying case — houses display unit and both sensor heads
Technical Specifications
- Small Sensor Range: 10 – 30 lbs
- ±3% of full scale
- Large Sensor Range: 10 – 150 lbs
- ±2% of full scale
- Scale Resolution: 1 lb (both sensors)
- Cable Sizes (Both Sensors): 1/16", 3/32", 1/8", 5/32", 3/16"
- Wireless Technology: Bluetooth Low Energy (BLE) 4.2
- Wireless Range: Up to 10 meters (33 ft)
- Display: 160 x 128 dot matrix LCD with selectable backlight
- Display Readings: Tension (lbs or metric), cable size, temperature, battery strength
- Temperature: Selectable °C or °F
- Operating Temp Range: 14°F to 100°F (-10°C to 40°C)
- Storage Temp Range: -4°F to 122°F (-20°C to 50°C)
- Humidity: 5–95%
- Sensor Housing: 6061 aluminum (both sensors)
- Display Housing: ABS plastic
- Sensor Battery: 500mAh Li-Po rechargeable; ~4,000 readings per charge; sleep after 5 min idle (each)
- Display Battery: 1,500mAh Li-Po rechargeable; ~10,000 readings (backlight off); ~3,000 (backlight on)
- Charging: 5VDC; one adapter charges display and both sensors
- Sensor Dimensions: 105 x 40 x 27mm (each)
- Sensor Weight: ~240g each (~8.5 oz)
- Display Dimensions: 164 x 80 x 29mm
- Display Weight: ~160g (~5.6 oz)
- Calibration Interval: Annual (12 months) — both sensors require individual annual calibration
- Factory Calibration: Yes — all units pre-calibrated; ready for immediate use
- Included: Display unit, small sensor (10–30 lbs), large sensor (10–150 lbs), batteries, 5V adapter, user manual, carrying case
- Manufacturer: Sprague Instruments, San Jose, CA
Typical Applications
- Complete cable tension measurement kit for technicians working on both bridle and primary flight control cables
- MRO facilities maintaining multiple aircraft types requiring the full tension measurement spectrum
- Autopilot servo bridle cable rigging (small sensor) and primary control cable rigging (large sensor) on the same aircraft
- Any operation where carrying two separate tensiometers is inefficient
- General aviation, business jets, regional jets, and helicopter maintenance programs
- Flight schools and MRO shops consolidating multiple mechanical instruments into one digital wireless kit

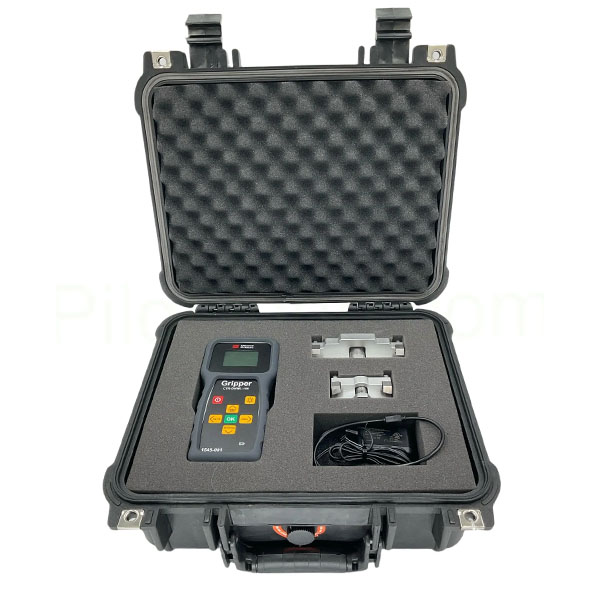

In The Box
- Display unit
- Small sensor (10–30 lbs)
- Large sensor (10–150 lbs)
- Batteries
- 5V adapter
- User manual
- Carrying case
