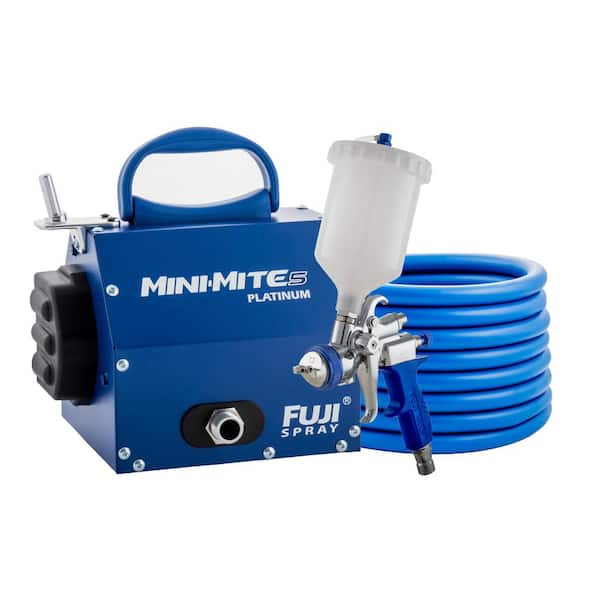

Fuji Spray Mini-Mite 5 PLATINUM™ System

0 Reviews 0 Answered Questions
$1318.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 12-06929
MFR Model# 2805-T75G

Overview

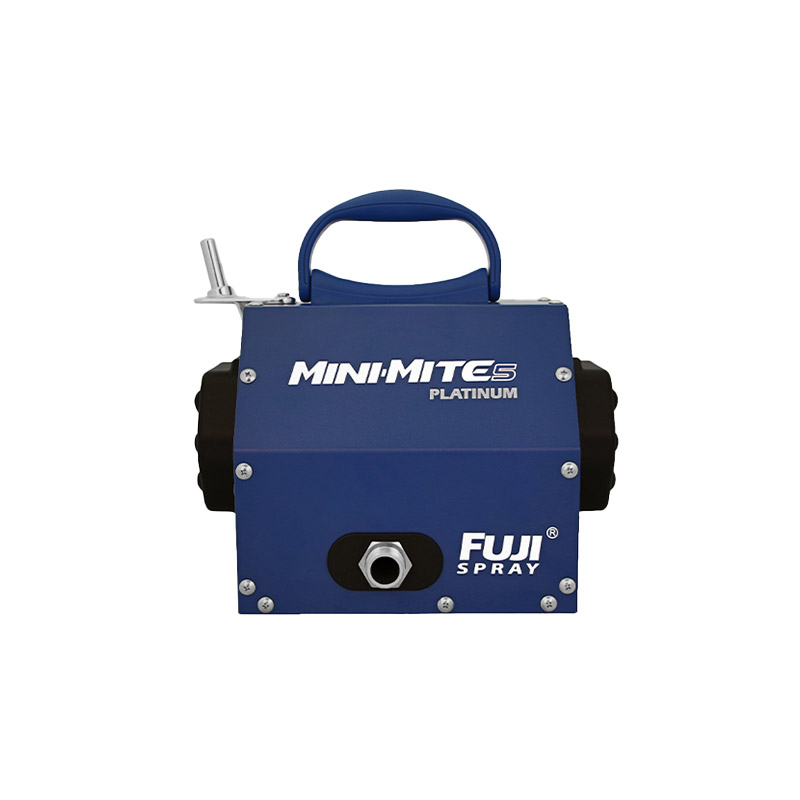

5-Stage Mini-Mite PLATINUM™ Series Turbine (9.5 PSI). The additional power allows the user to apply heavier coatings and thicker viscosity finishes faster and with less time spent on preparation of materials.

Fuji Spray has managed to expertly balance the heat dissipation and sound caused by the turbine motor. Our Heat Dissipation Chamber™ is an industry-leading method resulting in an increase of the lifespan of your Fuji Spray turbine motor, compared to standard turbines. Excess heat is channeled to a Heat Dissipation Chamber™ located at the rear of the case. Since the hot air is dissipated evenly through an optimum surface area of 60 holes, there is no added hiss or loud whistling noise, and no blowing around of debris.

Features

  • Lightweight and portable with a rugged metal turbine case and quick-change friction fit filter
  • PSI ranging from 6.5(3-stage) to 9.5(5-stage)
  • Heat Dissipation Chamber™ – dissipates heat resulting in increased turbine motor life
  • Noise Reduction Covers™ – muffles the operating level by removing direct sound paths from exiting the turbine.
  • Can be used with a range of materials (high to low viscosity) and suitable for both waterborne and solvent-based coatings
  • Cup capacity ranging from 3oz (89cc) to 1Qt (1000cc)
  • 2-year warranty on parts and labor
  • High Transfer Efficiency – a minimum of 65% TE

Specifications

  • Applicator/Tool Type: Paint Sprayer
  • Compatible Paint Type: Exterior Paint, Interior Paint, Polyurethane/Lacquer, Primers, Sealers, Stains
  • Features: Adjustable Spray Width, Air Flow Valve, Check Valve, Ergonomic Grip, Fan Control Screw, Flow Control, Fluid Control Valve, Low Overspray, Quick Release
  • Feed type: Gravity Feed
  • Included: Hose Included
  • Kit: No
  • Paint Sprayer Type: Stand
  • Paint Sprayers Product Type: HVLP
  • Power Type: Electric
  • Pump Type: N/A
  • Spray Tip Pattern Size (in.): 12(in)
  • Spray Tip Size: 0

Benefits

  • Five-stage turbine produces 9.5 PSI
  • Includes noise reduction feature and heat dissipation chamber (HDC)
  • Professional spray gun features convenient side pattern control knob to adjust size of fan pattern from small to large
  • Metal turbine case with handy gun holder

Documents

In The Box

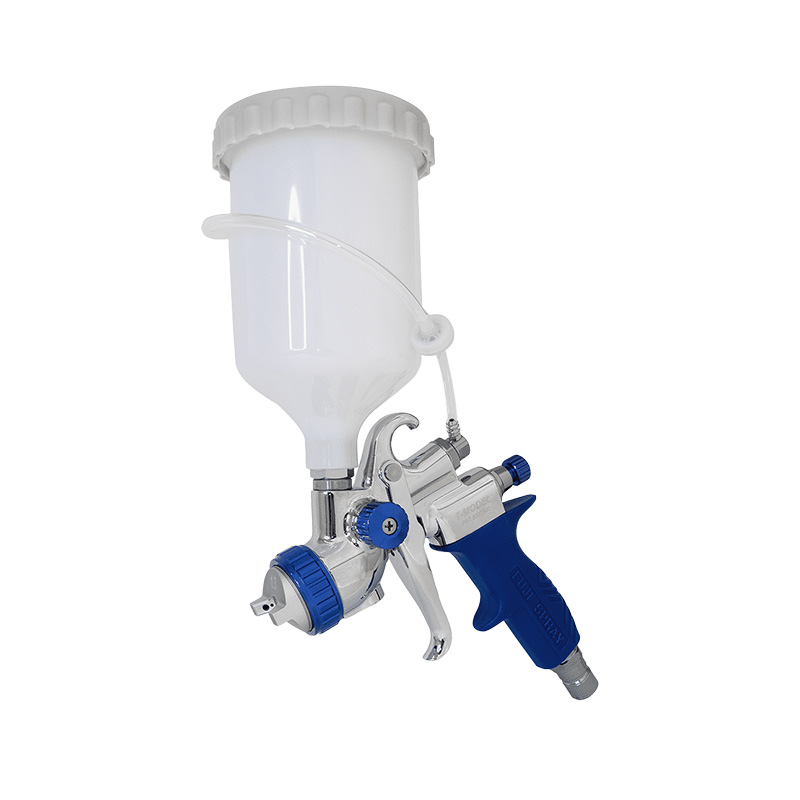

  • Professional Grade Non-Bleed Spray Gun with Stainless Steel Fluid Passages
  • Patented Side-Mounted Fan Pattern Control™
  • Heat Dissipation Chamber™
  • Noise Reduction Covers™

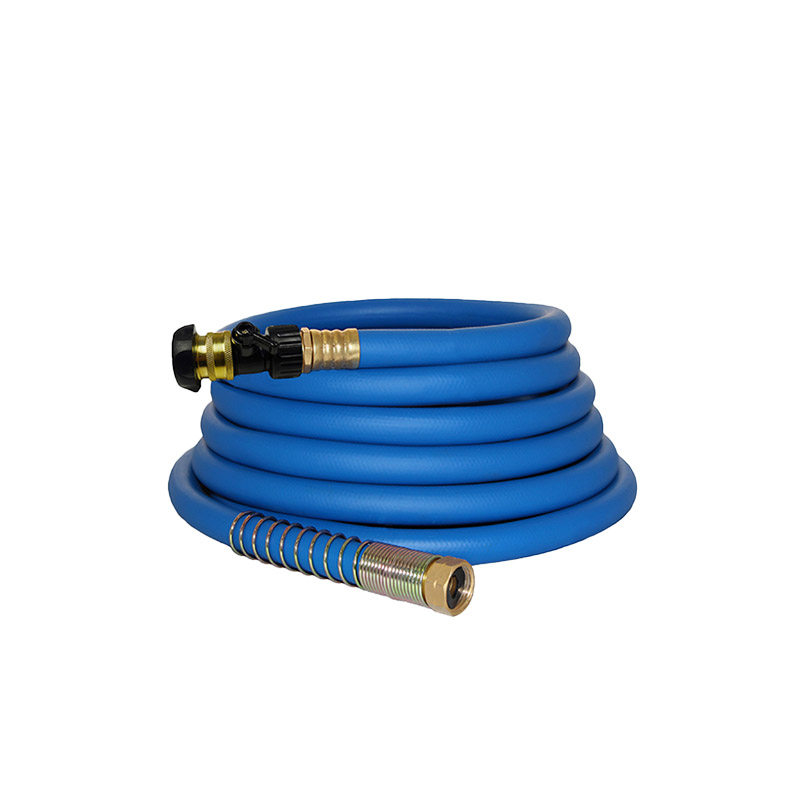

  • 25ft Heavy Duty Hose
  • Quick Connect Coupling & Air Control Valve
  • Detailed User Manual
  • #4 Ford Viscosity Cup
  • Wrench & Cleaning Brush
  • 2-Year Warranty On Parts & Labor

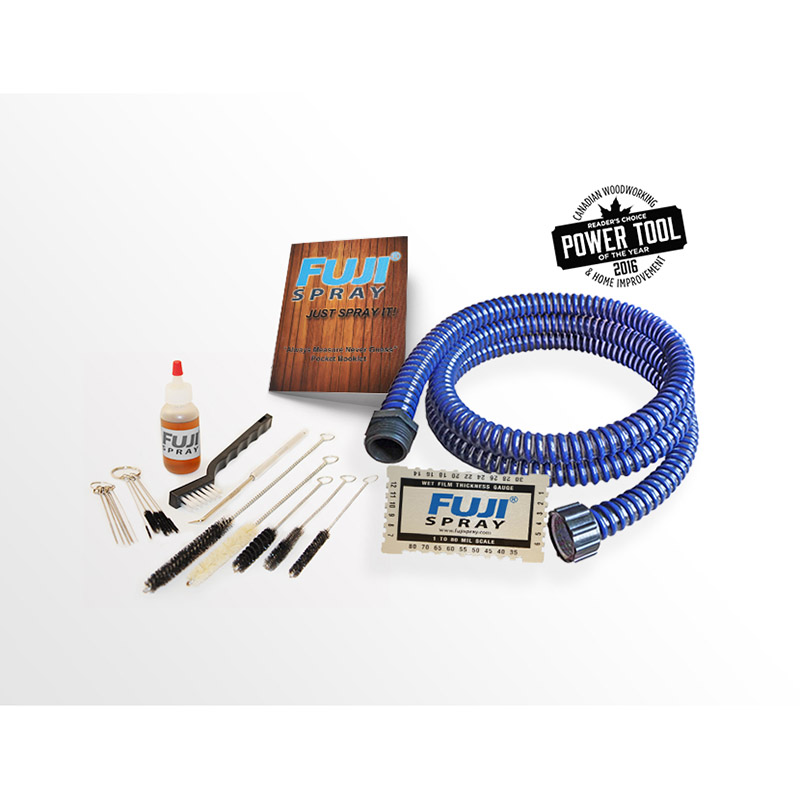

  • Bonus – 5 Accessory Pack:
  • 6’ Whip Hose
  • 19pc Spray Gun Cleaning Kit
  • Extra Turbine Filters
  • Wet Film Gauge
  • “Always Measure” Booklet
