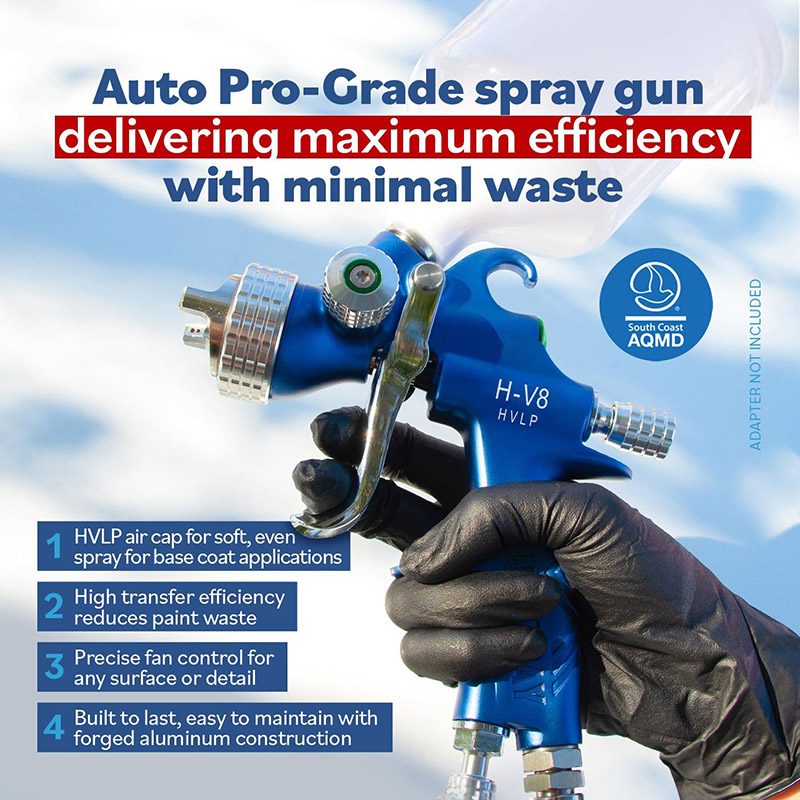

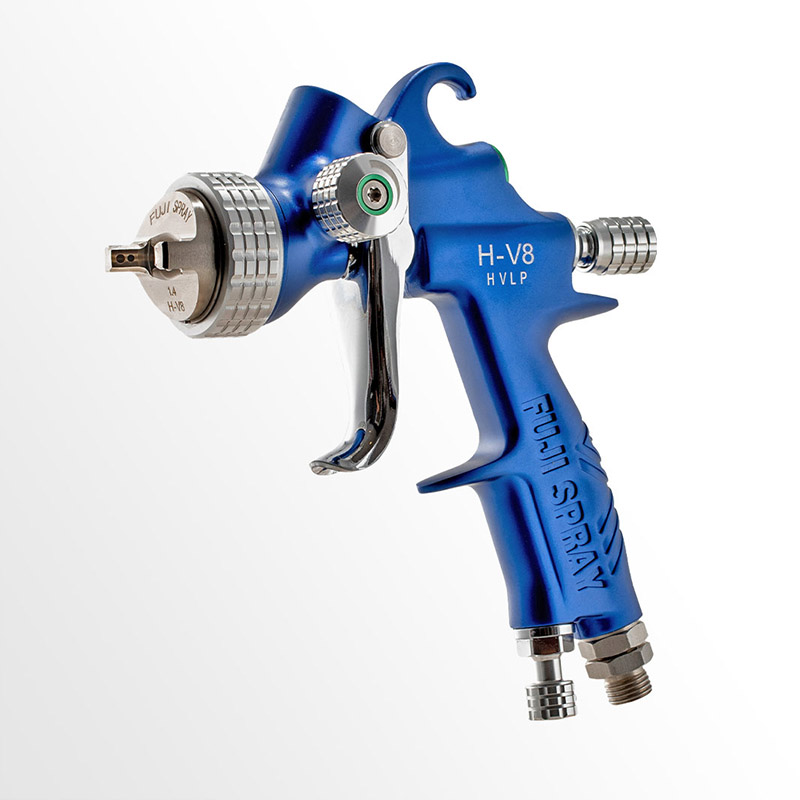

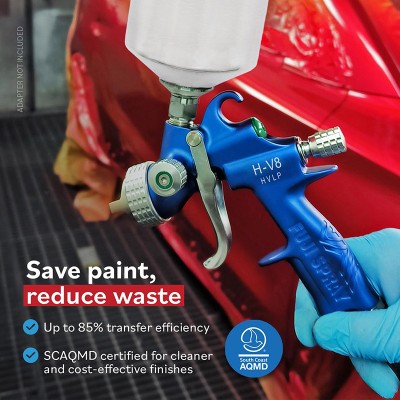

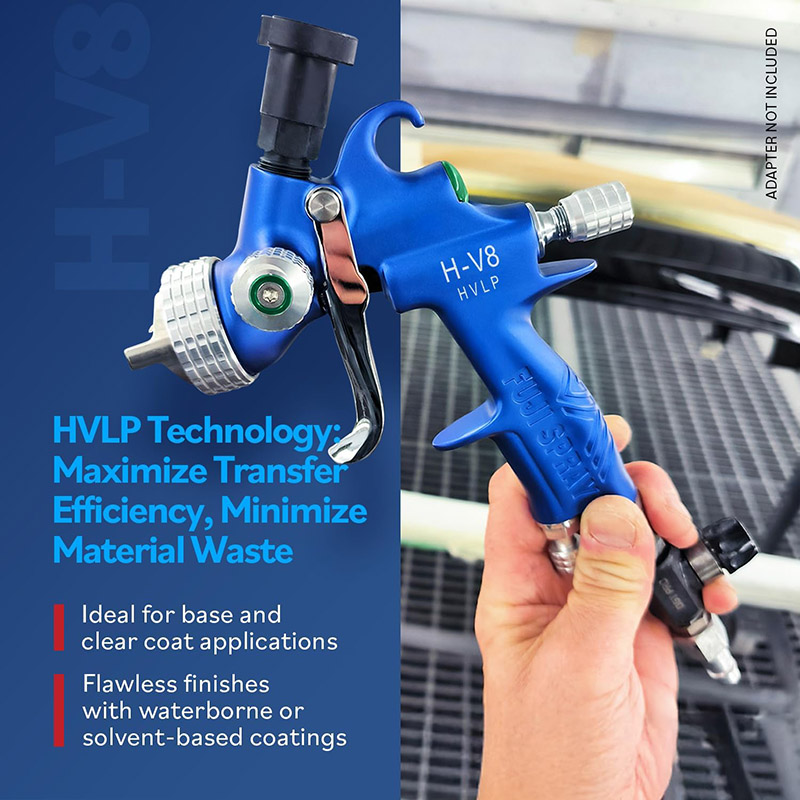

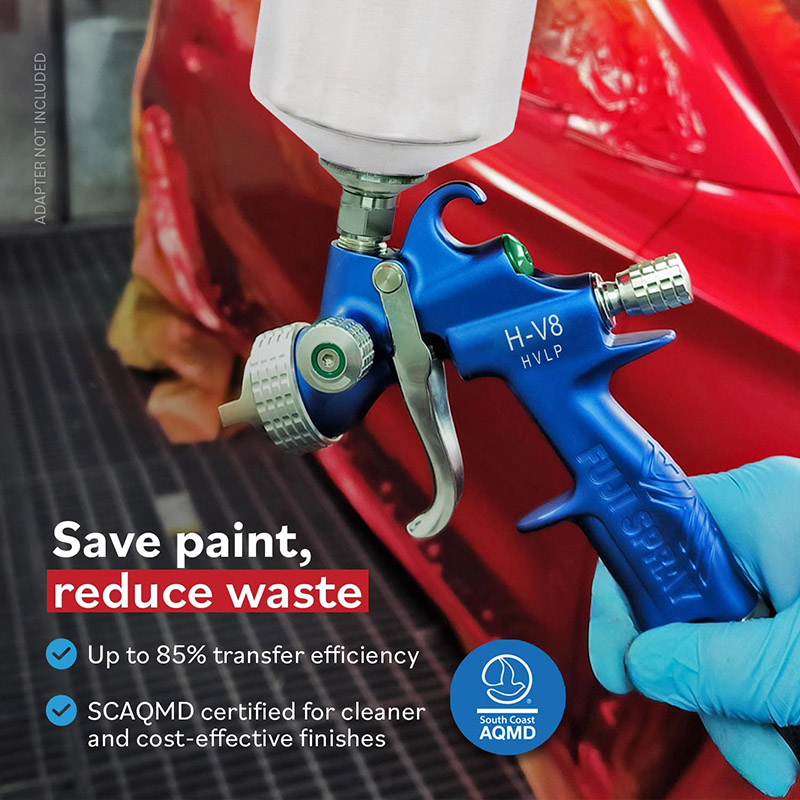

Fuji Spray H-V8™ HVLP Spray Gun with 600cc Nylon Cup
$864.60/Each
Price Includes GST
Part# 12-06934
MFR Model# 6863G-H-V8-N
MFR Model# 6863G-H-V8-N
Overview
| Best suited for base and clear coat applications, the H-V8™ features a precise side-mounted fan pattern control. The H-V8™ has few internal components, forged aluminum spray gun body with anodized fluid passages, and an optimized HVLP air cap resulting in a soft spray pattern. |
Features

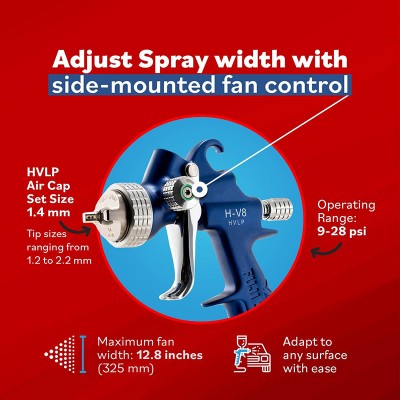

- Side-mounted fan pattern control

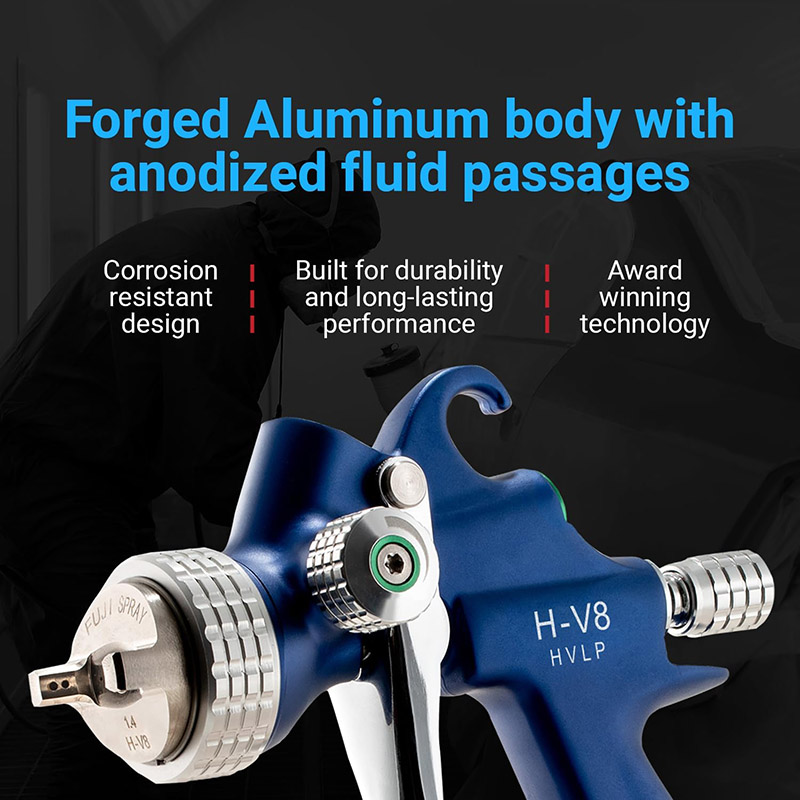

- Forged aluminum gun body with anodized internals
- For use with waterborne or solvent-based coatings in high production facilities
- Optimized HVLP air cap for soft spray pattern
- Fewer internal components for easy maintenance
- Tip sizes ranging from 1.2 to 2.2 mm
Specifications
- Air cap sets available (in mm): 1.2; 1.3; 1.4; 1.7; 2.0; 2.2
- Operating range: 9-28 psi
- Air inlet size: 1/4” bsp and nps
- Air supply hose: 6.5 x 10 mm
- Air consumption: 14.7 cfm
- Fluid coupler (gravity): 3/8” pf
- Standard air cap set: 1.4 mm
- Gun weight (without cup): 521 g (18.38 oz)
- Application type: waterborne and solvent-borne clear coat application
- Max. Fan width: 325 mm

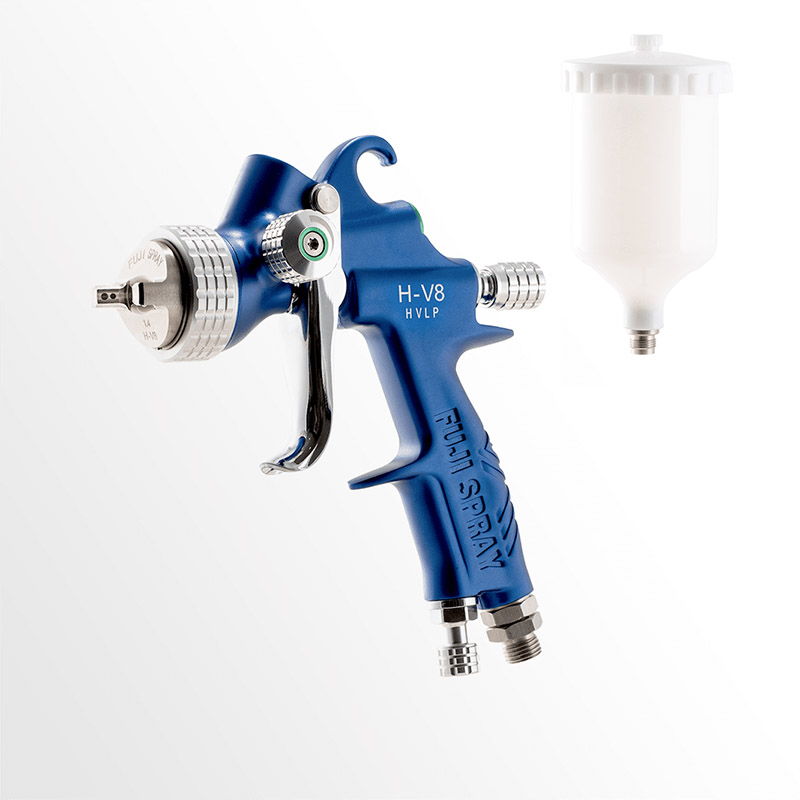

In The Box
- (1) H-V8 Spray Gun (1.4mm)
- (1) 600cc Nylon Cup
