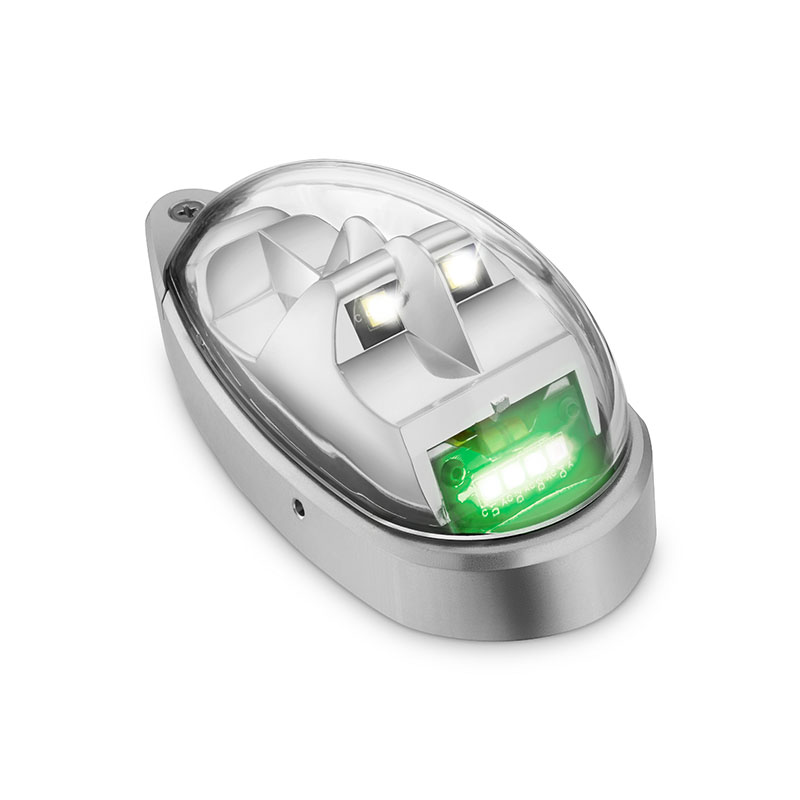

Whelen Orion 660 LED Wingtip Pta 28V Green OR6602G
MFR Model# 01-0790877-11
| Model Num. | Description | Whelen # | Approvals | PN |
|---|---|---|---|---|
| OR6602G | GreenForward Position, Anti-Collision & Tail Light Assembly, 28 VDC | 01-0790877-11 | TSO-C96a Class III / TSO-C30c Type II & III | 11-18779 |
Overview
| The Orion™ 660 series products integrate a RED or GREEN Forward Position Light, a WHITE flashing Anti-Collision light, and a Tail Position Light function. The built-in tail position light complies with all FAA requirements, eliminating the necessity for a separate tail-mounted position light. These products feature advanced LED circuitry, negating the need for additional flasher boxes. The footprint and mounting specifications are identical to legacy Whelen products, ensuring hassle-free installation and retrofitting. They have received full FAA/TSO approval, ensuring adherence to aviation standards. |
Specifications
- Drawing 90725
- Weight 0.26 lbs
- Current Draw 12V / 28V 0.30 / 0.15 Amps Position 0.70 / 0.35 Amps Avg. ACL
- Lenses Clear Hardcoated Polycarbonate
Drawing
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The Orion 660 LED series is fully TSO approved. Please reference individual row data for the model number to determine specific TSO approval.
The strobe and position lights are run off separate wires. The strobe would typically need a 3 amp breaker and position a 1 amp.
The strobe on 11-18777 cannot be run through the power supply. You would need to remove the power supply and wire this light to ships power.
