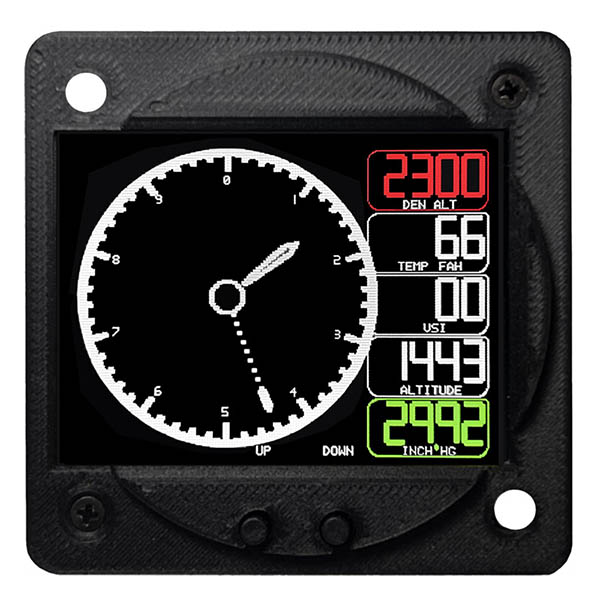

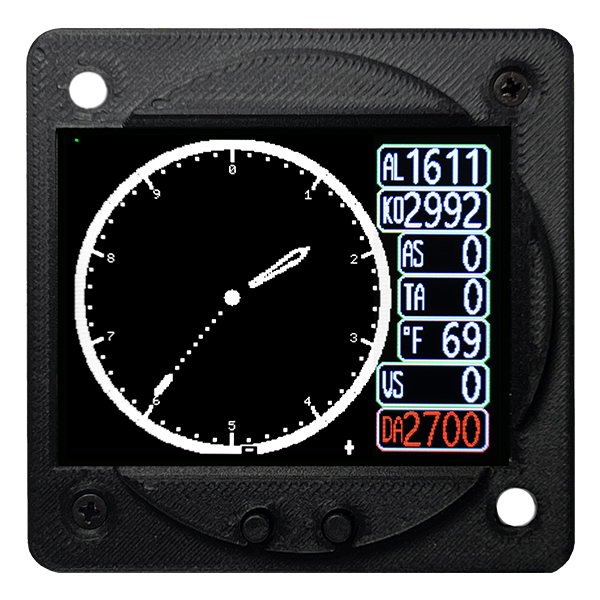

Radiant Digital Altimeter With LCD Screen For 2.25 Mount - Second Generation
MFR Model# RDAL-22-GEN2
Overview
**NOT FAA APPROVED - FOR USE IN EXPERIMENTAL AIRCRAFT ONLY**Rather than acting like a simple one-function altimeter, RDAL provides the builder with a more capable altitude instrument while retaining the familiarity of a dedicated altitude presentation. It is especially attractive when altitude warrants the greatest visual emphasis, but supporting flight data still needs to be readily available in the same instrument. The updated platform allows practical configuration from the front panel. RDAL supports inHg or hPa Kollsman units, °F or °C temperature display, temperature calibration, and G-meter enable/disable in setup. Kollsman is adjusted directly from the front controls, with a standard-pressure reset available from the panel. An external temperature probe is included, and RDAL is available in both 2-1/4 inch and 3-1/8 inch versions for flexible installation. |
Technical Details
- Radiant Digital Altimeter (RDAL) with shared 2026 Radiant platform and interface
- Available in 2-1/4" and 3-1/8" case sizes
- Analog-style altimeter dial plus digital altitude readout
- Settable Kollsman window in inHg or hPa
- Density altitude display
- Vertical speed display to ±9,999 FPM
- Outside air temperature with included external probe
- Built-in G-meter with scrolling strip-chart history
- Selectable Kollsman units: inHg or hPa
- Selectable temperature units: °F or °C
- Temperature calibration from setup menu
- G-meter can be enabled or disabled in setup
- Brightness control from front panel
- Designed for experimental, ultralight, and qualifying Light Sport aircraft
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Approx 1" to 1-1/8" max with the connector.
It shouldn't have to be calibrated more than once per year and the unit carries a full 3 year warranty.
No. The altimeter is determined by using a solid-state pressure sensor, which by design is not sensitive to changes in temperature.
