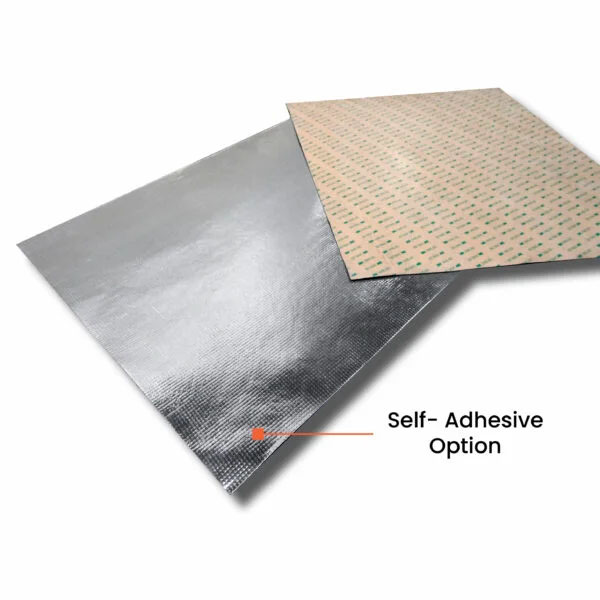

Zircoflex 3 Self Adhsve Small
MFR Model# ZF-A75-3-3SA
- JUMP TO
- Overview
- Features
- Reviews
- Q&A
- View in Catalog
| Description | Size | Part Number |
|---|---|---|
| Zircoflex III Small Sheet with Adhesive | 297mm x 210mm (Approx. 12" x 8") | 08-07653 |
Overview

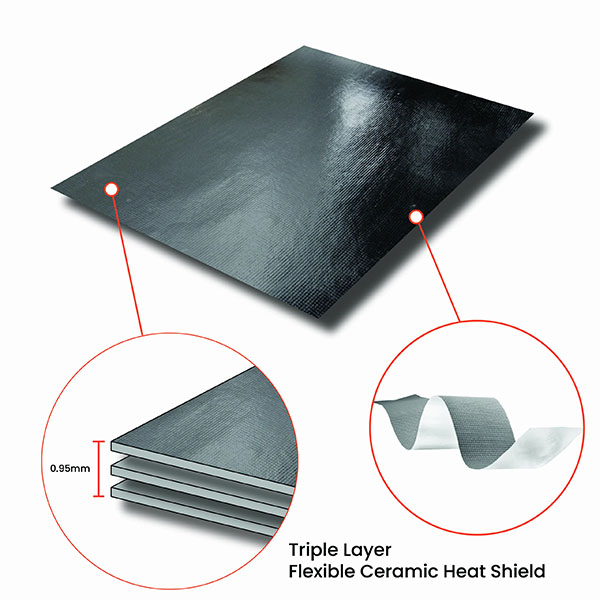

| This is an engineered triple thickness ZircoFlex® format that offers yet more thermal performance coupled with significant rigidity when compared to the original ZircoFlex I® material. It is produced as an aluiminium backed matrix. |
Features

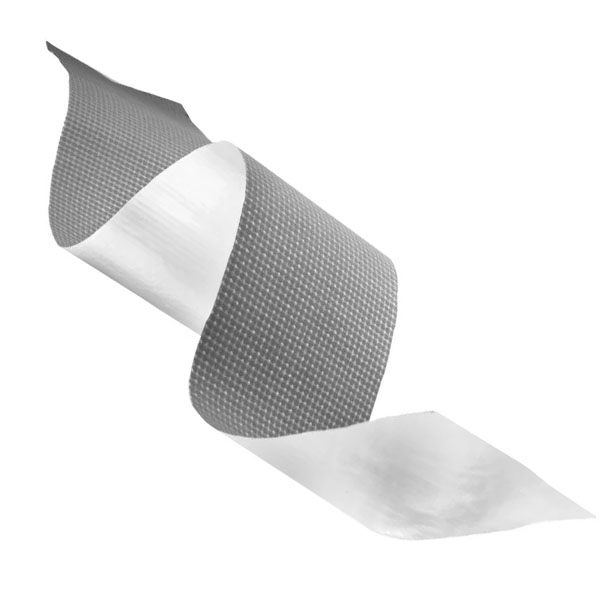

• Flexible - it is easily bent and manipulated to suit different geometries, and can be folded through 180° without damaging the thermal barrier.• Lightweight - weighing only 1.5kg/m2.
• Thin (0.85mm overall) needing only minimal space for installation.
• Aluminium backed, so the material is robust and easy to handle.
• Easily cut and installed by hand or machine.
• Easily fixed in placeusing mechanical fasteners or high temperature adhesives (supplied separately by Zircotec).
Reviews
I have only measure with a ambient temperature of 68F. The difference was 124f-132f oil tank with the protected cover showing a 98F temp. Resulting in a 26-34F reduction. This is with a very small air gap from the tank to the protected cover of about a 1/4. Not sure how it will perform when the ambient temperature reaches 90F.
Verified Purchase
Zircoflex 3 Self Adhsve Small
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The material is received and shipped flat, not rolled or folded.
