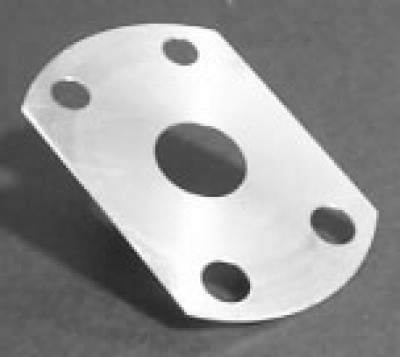

Grove Axle Realignment Shims

0 Reviews 0 Answered Questions
From $95.75 to $104.75
Prices below incude GST
Main Image
Description Part Number Price Buy
The Landing Gear Works Axle Alignment Shim Main Landing Gear XP0441139-5
05-32369
$105.33
Quantity
The Landing Gear Works Axle Alignment Shim Main Landing Gear XP0441139-6
05-32370
$115.23
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Install these axle shims between your landing gear and axles to insure that your tires track true.
Correct any misalignment of toe-in or toe-out in 1/4" increments.

Features

How to Select the Proper Axle Shim

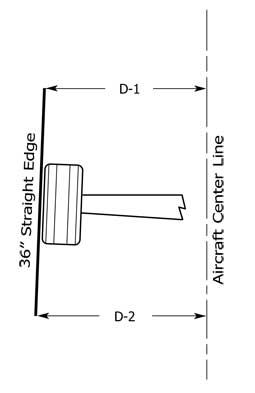

1. Support the aircraft in level flying attitude.

2. Chalkline the center-line of the aircraft onto the floor. Do this by connecting a mark on the floor from directly beneath the center of the firewall (use a plumb-bob) and from directly beneath the center of the tail (also using a plumb-bob).

3. Place a 36" straight edge against the outside of the tire. It should be parallel with the floor and approximately centered on the wheel.

4. Make a mark on the floor directly beneath each end of the 36" straight edge. Use a plumb-bob or square for this.

5. Measure and record distances D-1 and D-2. These are the distances between the marks in step 4 and the aircraft center-line.

6. Calculate Delta D, which is the difference between D-1 and D-2. Delta D changes by 0.157" for each 1/4".

To Change Delta D by 0.10" - 0.25" Use 1/4" Shim
To Change Delta D by 0.25" - 0.40" Use 1/2" Shim
To Change Delta D by 0.40" - 0.55" Use 3/4" Shim

Benefits

Click Here for Camber Adjustment Shims
