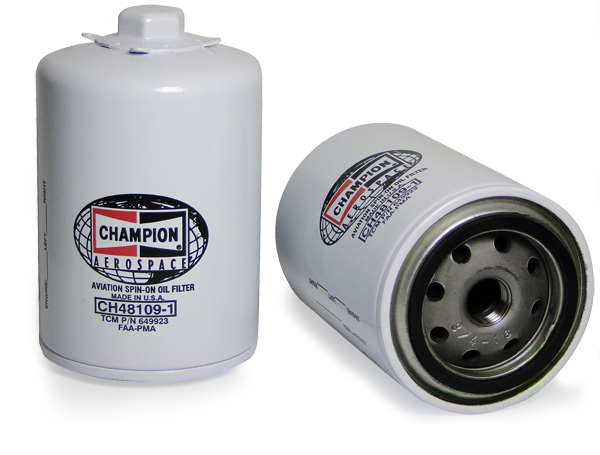

Champion Spin-On Oil Filter CH48109-1

67 Reviews 2 Answered Questions
Select Package Quantity:
Single Filter6 Pack12 Pack
Price Includes GST
Quantity
Add to Wishlist

Overview

Spin-On Oil Filter CH48109-1 by Champion. Replaces oil filter element. Easy to install. Saves time and clean-up. FAA Approved.

Customers told Champion Aerospace the height of a standard oil filter can make it difficult for them to install the filter in certain engine applications. So, operating on the premise that size really does matter, they made their Champion oil filter can 1/2" shorter and, in the process, added design improvements that now make their filters stronger and more effective than ever before.

Champion Aerospace’s full-pleat, resin-impregnated micronic filter media traps all harmful particles, including metallic chips which result from abnormal engine wear. Because the oil flows through many layers of locked-in fibers, there is no migration of fiber material to clog engine oil passages or affect bearing surfaces. According to industry-approved tests, the Champion oil filter traps and holds more dirt and harmful particles during its normal operating time than any other similar filter.

Features

  • Replacement elements service engine-mounted or line-installed filter systems incorporating a permanent housing assembly.
  • All sizes of replacement elements are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons
  • Modern spin-on oil filters contain the element, incorporating the anti-drain back valve mechanism (and internal bypass valve 48108-1/48109-1), and are sealed in a disposable housing.
  • All sizes of spin-on filters are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons.
  • Silicone impregnated filter gasket aids in future removal.
  • Shorter stud length on CH 48110-1 for tight clearance applications.
  • Heavy, corrugated steel center tube supports each convoluted pleat of the filter element and produces a substantially higher collapse-pressure rating, twice that of other similar filters.
  • Maximum full-flow design, without interference from center-bolt oil filter assemblies, provides increased oil filtration each engine-operating hour.

Specifications

Aircraft Type
Beech Bonanza Debonair,
and others		 6-1/4"H

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Expensive

Tom T Verified Purchase

Champion Oil Filter CH48109-1
December 15, 2025

Todd B Verified Purchase

Champion Oil Filter CH48109-1
December 2, 2025

Todd B Verified Purchase

Champion Oil Filter CH48109-1
December 2, 2025

Bill R Verified Purchase

Champion Oil Filter CH48109-1
November 23, 2025

As advertised

John M Verified Purchase

Champion Oil Filter CH48109-1
November 15, 2025

After many years of using Tempest, trying Champion again since they are the same price.

David S Verified Purchase

Champion Oil Filter CH48109-1
November 6, 2025

Oe A Verified Purchase

Champion Oil Filter CH48109-1
October 15, 2025

I have never had an issue with Champion. Lower price may not be a savings.

Mission A Verified Purchase

Champion Oil Filter CH48109-1 - 12 Pack
August 26, 2025

Excellent fast completion of the order

Sean T Verified Purchase

Champion Oil Filter CH48109-1
August 24, 2025

A++

James H Verified Purchase

Champion Oil Filter CH48109-1 - 6 Pack
August 7, 2025

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: My Beech S-35 with a 550 engine has a ch48109 on it. Will a ch48109-1 fit it?

Yes, the CH48109 and the CH48109-1 are interchangeable.

Q: Is the CH48109-1 just a slightly taller version and larger capacity than a CH48108-1? Basically wanting to know if they are interchangeable on a spinon application as long as clearance is available.

That is correct, all the dims and thread is the same but the 109 is just a little longer.
