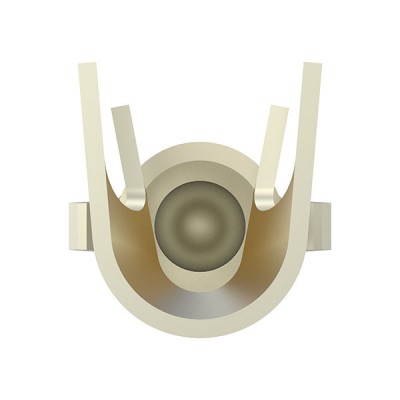

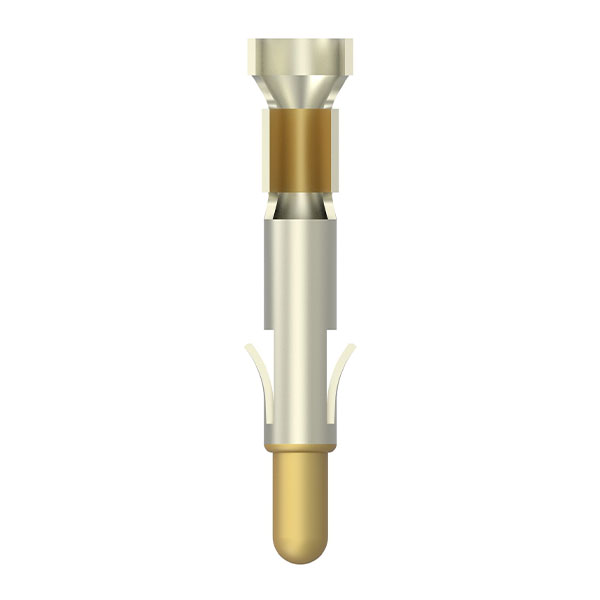

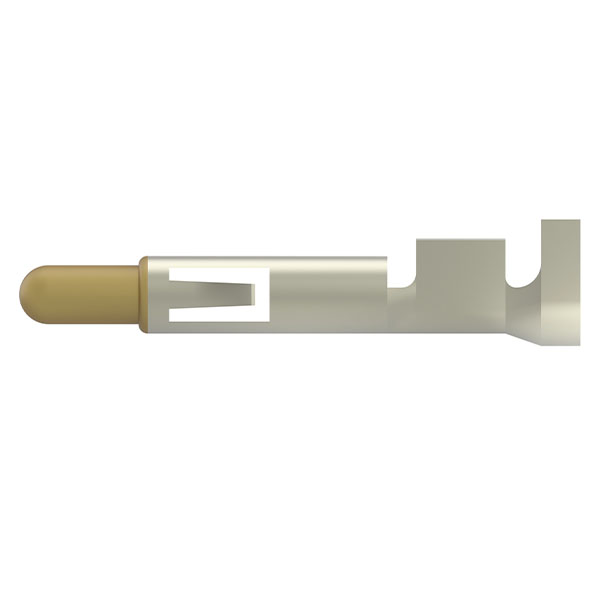

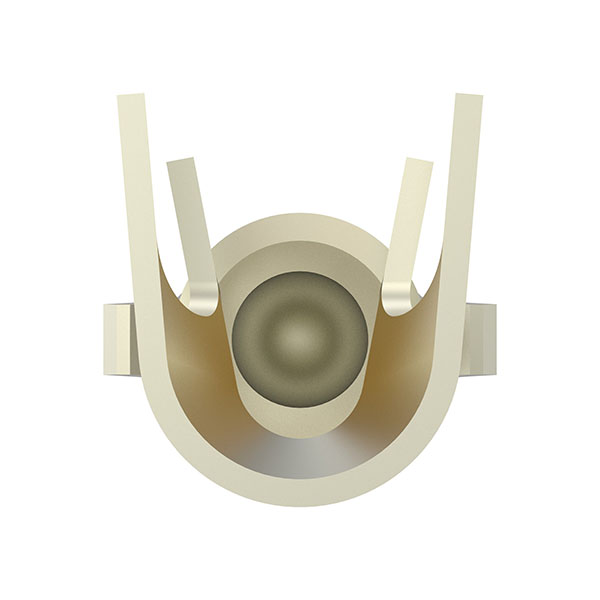

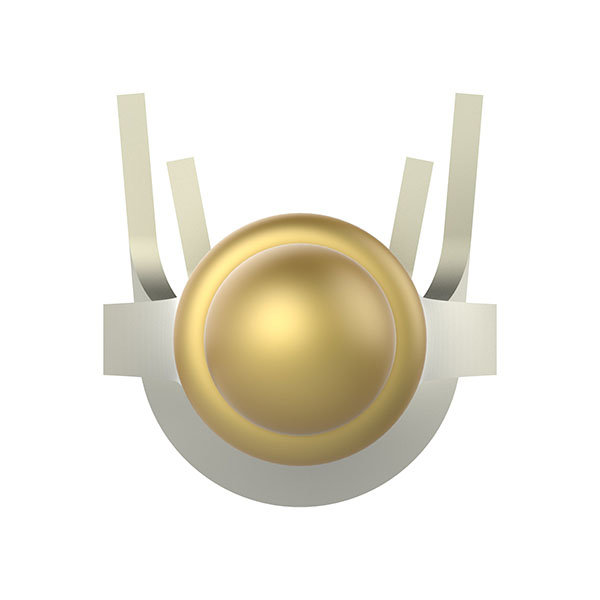

TE Pin and Socket Connector Pin - 20-14 AWG - 350547-2
$2.11/Each
Price Includes GST
Part# 11-21368
MFR Model# 350547-2
MFR Model# 350547-2
- JUMP TO
- Overview
- Specifications
- Accessories
- Reviews
- Q&A
Overview
| TE Pin and Socket Connector Pin - 20-14 AWG - 350547-2 |
Specifications
- Discrete Wire Type: Stranded
- Operating Voltage (VAC): 600
- Contact Type: Pin
- Contact Mating Area Plating Material: Gold (Au)
- Wire Contact Termination Area Plating Material: Gold
- Contact Retention Within Housing: With
- Contact Base Material: Brass
- Contact Current Rating (Max) (A): 19
- Mating Pin Diameter: 2.13 mm [ .084 in ]
- Contact Mating Area Plating Material Thickness: .76 µm [ 30 µin ]
- Wire Contact Termination Area Plating Thickness: .76 µm [ 30 µin ]
- Contact Orientation: Straight
- Contact Underplating Material: Nickel
- Contact Underplating Material Thickness: 1.27 µm [ 50 µin ]
- Termination Method to Wire & Cable: Crimp
- Product Terminates To: Wire & Cable
- Contact Retention Type Within Housing: Locking Lance
- Wire Insulation Support: Without
- Wire Size (AWG): 20 – 14
- Wire Size (mm²): .5 – 2
- Compatible Insulation Diameter Range: 1.52 – 3.3 mm [ .06 – .13 in ]
- Operating Temperature Range: -55 – 105 °C [ -67 – 221 °F ]
- Circuit Application: Power
- Compatible With Agency/Standards Products: CSA / UL / VDE
