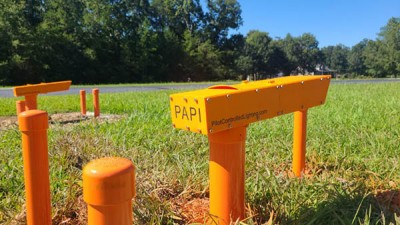

Main Image
Main Image
Thumbs 1
Thumbs 1

Pilot Controlled Lighting PAPI - Precision Approach Path Indicator

0 Reviews 0 Answered Questions
Select # Fixtures:
24
Price Includes GST
Quantity
Add to Wishlist

Overview

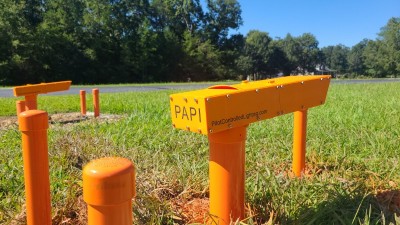

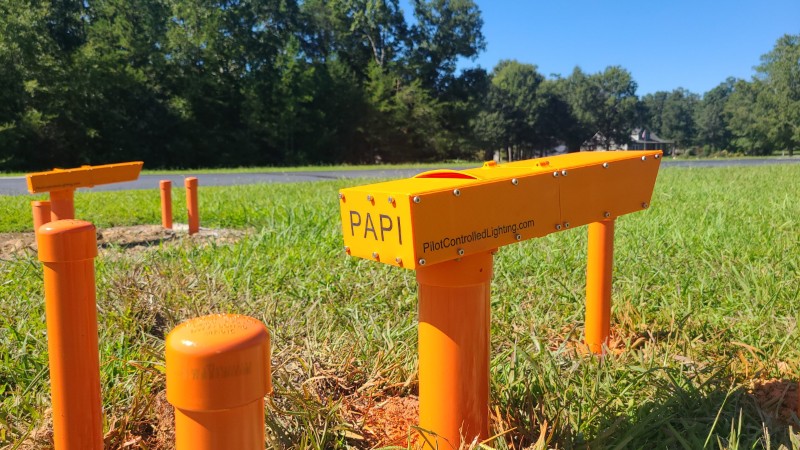

The PCL-PAPI Precision Approach Path Indicator (PAPI) is a ground-based visual aid designed to assist pilots in maintaining a safe and consistent glide path during the final approach to landing at airports and heliports. This system utilizes a multi-light unit that projects two distinct colors—red & white—to indicate the pilot’s position relative to the desired glide slope. The system is intended for use at small airfields or heliports where simplicity and cost-effectiveness are prioritized over more expensive complex systems. Comes in a 2 fixture(shown here) and 4 fixture versions.

What is a Two-Fixture PAPI?
A Precision Approach Path Indicator (PAPI) is a visual aid that helps pilots maintain the correct glide path during final approach and landing. A standard PAPI installation often uses four light units arranged in a row, but a two-fixture PAPI is a simplified version that provides the same essential guidance with fewer lights. The system is intended for use at small airfields or heliports where simplicity and cost-effectiveness are prioritized over more expensive complex systems. Comes in a 2 fixture(shown here) and 4 fixture versions.

How it Works
Each light unit produces two overlapping beams: one red (seen from lower angles) and one white (seen from higher angles).

By aligning the lights at different vertical angles, the pilot sees a combination of red and white depending on their position:
- Two White: Aircraft is above the glide path.
- One White / One Red: Aircraft is on the glide path.
- Two Red: Aircraft is below the glide path.

This simple three-state system gives the pilot an instant, intuitive indication of whether to correct their descent.

Advantages of a Two-Fixture PAPI
Compact and Cost-Effective: Fewer lights mean lower installation and maintenance costs compared to a four-light PAPI.

Ease of Installation: Requires less runway edge space and simpler electrical setup.

Clearer Guidance than Tri-Color VASI:
- A tri-color VASI uses a single fixture that shifts between amber, green, and red. While compact, it can be harder to interpret quickly and may suffer from “color blur” under certain conditions.
- A two-fixture PAPI gives discrete red/white indications, which are less ambiguous and easier to read in poor visibility or at a distance.

Better Pilot Familiarity: PAPIs (two or four unit) are widely used worldwide, so pilots are generally more comfortable with the red/white indication system than with tricolor VASIs.

Comparison: Two-Fixture PAPI vs. Tri-Color VASI

Feature Two-Fixture PAPI Tri-Color VASI
Light Units 2 fixtures 1 fixture
Indications Red / White combinations Amber / Green / Red
Ease of Interpretation Simple, discrete steps (above, on, below) Can be less intuitive, colors can blur
Pilot Familiarity Very high (standardized worldwide) Moderate, less common today
Cost & Installation Moderate Lower
Accuracy Higher precision, even with 2 units Less precise, especially at longer distances


A two-fixture PAPI strikes a balance: it is simpler and more affordable than a four-unit PAPI, while still providing clearer, more precise guidance than a tri-color VASI. If ultra precision is needed, perhaps for a short field relative to the aircraft landing, or high precision is required for other reasons, then the 4 fixture version is the way to go. See our FAQ for more details on the comparisons.

Features

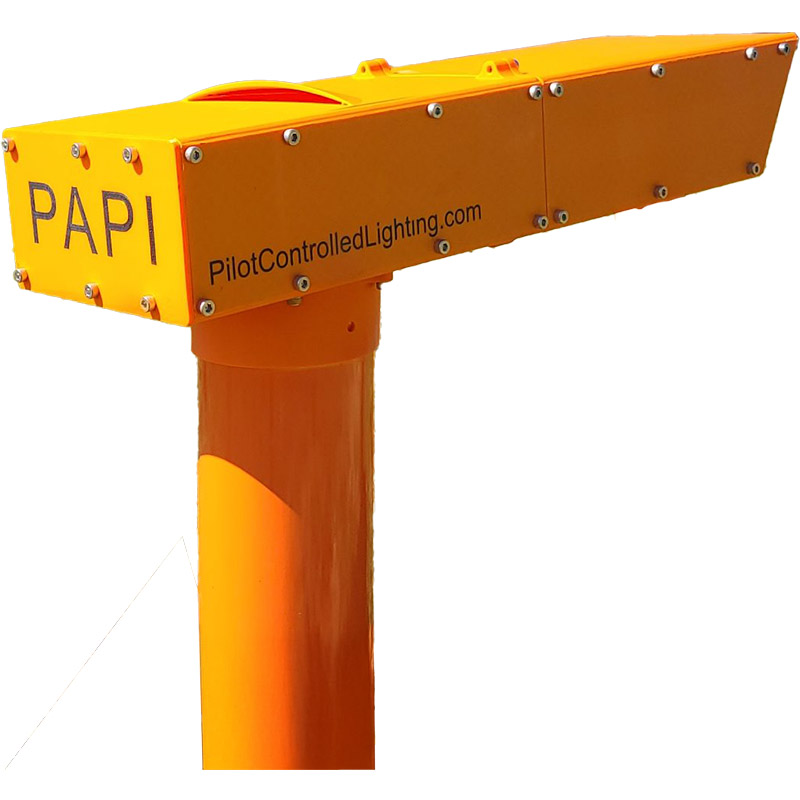

  • PAPI: Each fixture is a single optical assembly fixture containing a redundant high-intensity LED light source and a color-filtering mechanism to emit red or white light based on the viewing angle.
  • Mounting Structure: A stable, weather-resistant 3” Schedule 40 PVC pipe stand cemented 12” into the ground and standing 10” above ground for the airport version. 4” above ground for the heliport version.
  • Power Supply: Requires 100-240V AC, 50-60Hz power, consuming approximately 16 watts for 110v, and 24watts for the 220v which uses 12watt bulbs.
  • Alignment Mechanism: Adjustable mount to calibrate the PAPI’s vertical angle to match the intended glide slope (typically 3-5° for general aviation and 6–8° for a helipad). Adjustment available is +3° vertically for each mount version. Example: Airport 3° mount version adjusts from 3-5.5° vertically. Heliport 7° adjusts from 7-10°. Custom mounts of any configuration are available.
  • Dual LED bulbs for redundancy. A single bulb still allows for an effective view at night.
  • Lenses – High quality lenses for increased optical clarity and transparency, designed specifically for outdoor use.
