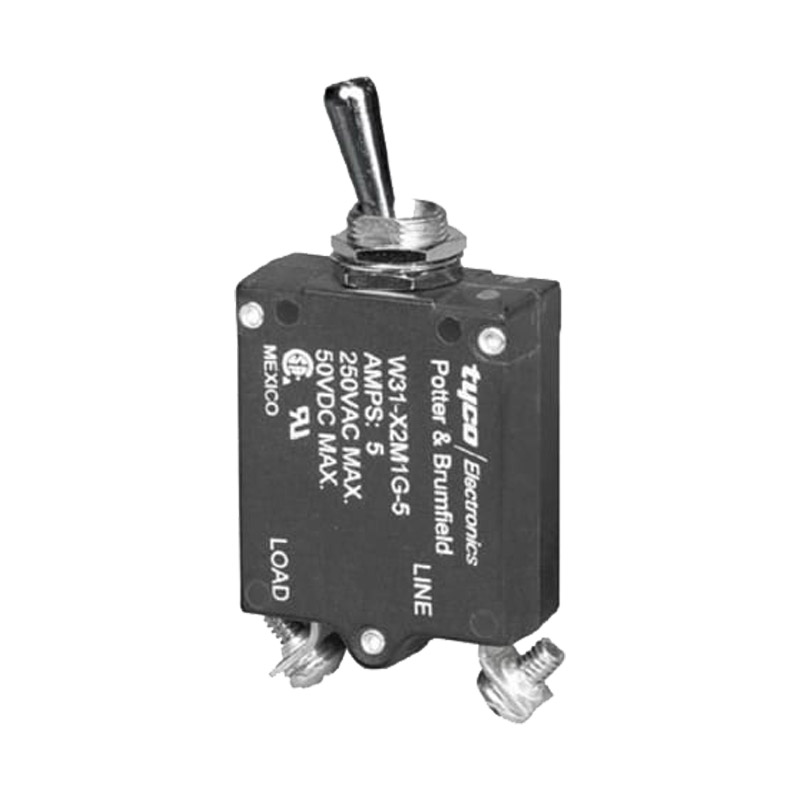

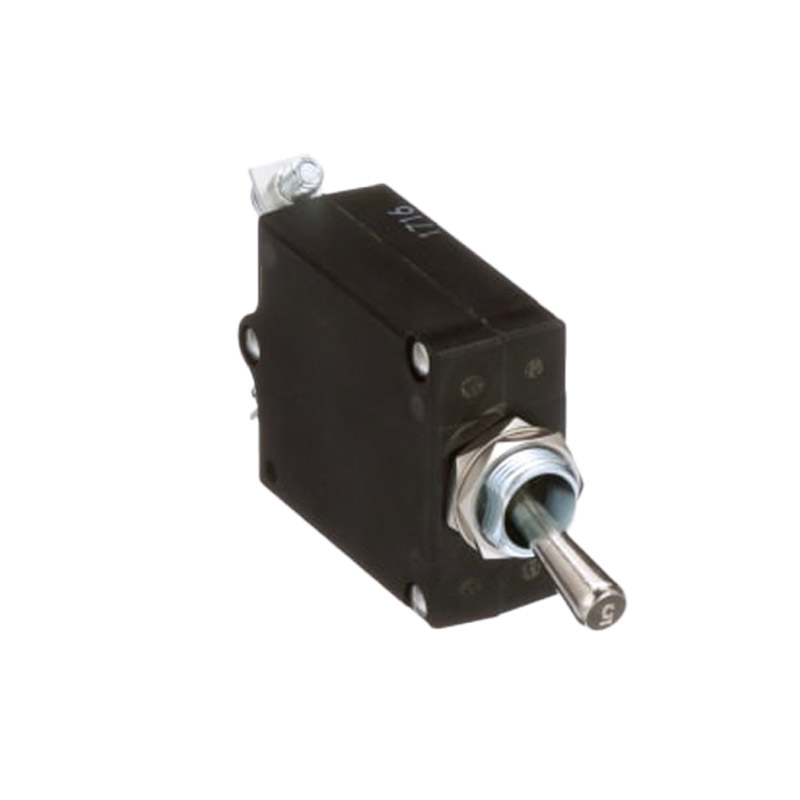

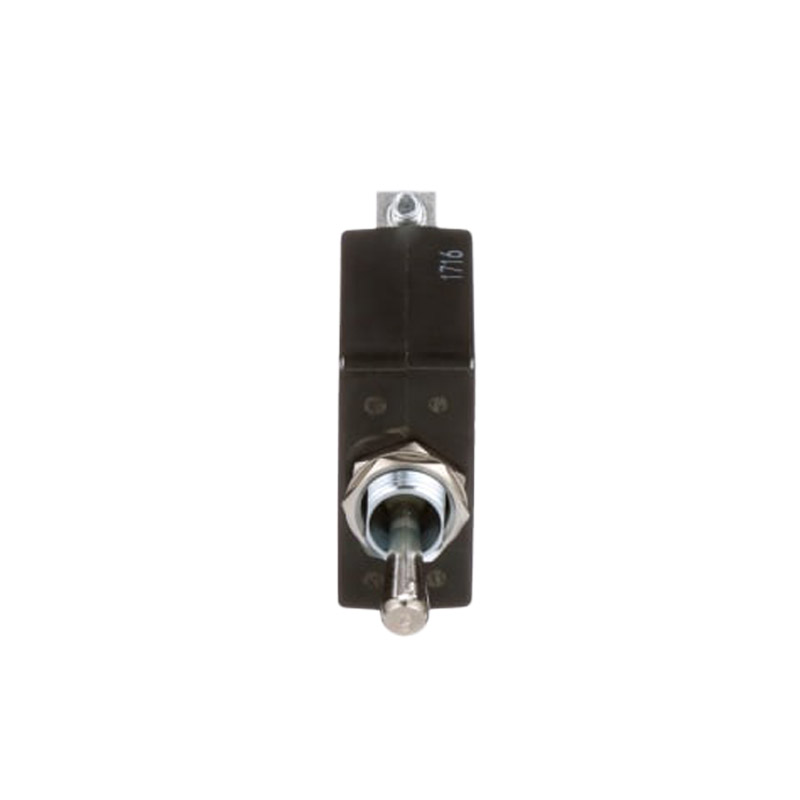

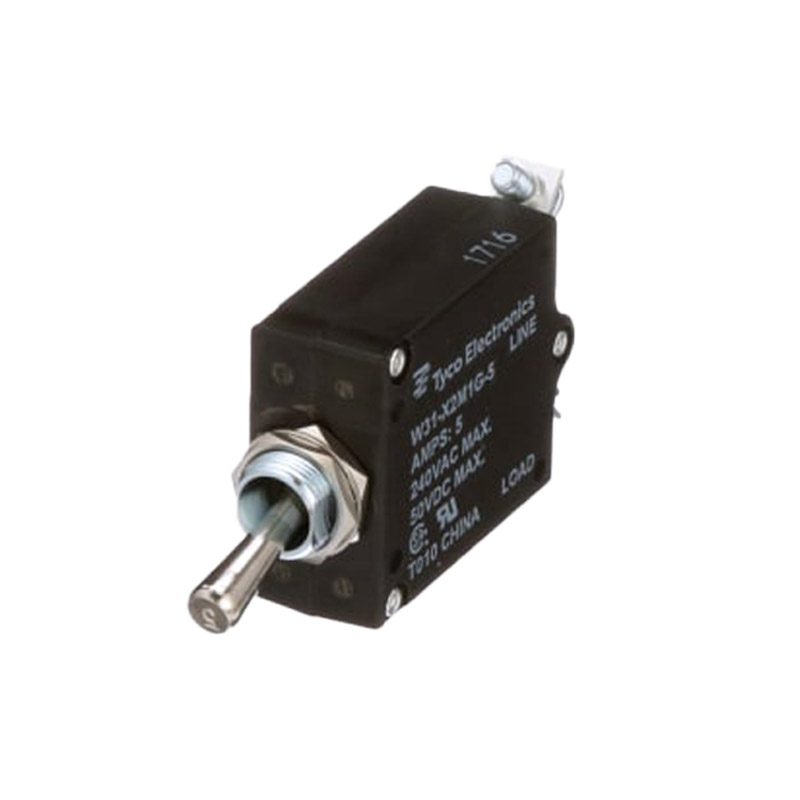

W23/W31 Series, Toggle or Push/Pull Actuator Thermal P&B Circuit Breaker: 0.5 amp to 50 amp ratings may be used as on/off switch. Cannot be reset against overload. W23 has visible trip indicator band. Screw termination. Trip-free operation. |
Product Attribute | Attribute Value |
---|---|
Current Rating | 5 A |
Overload | Thermal |
Alternate Mfr Part Number | 4-1393247-2 |
DC Voltage | 50 V |
Number of Poles | 1 |
Maximum Operating Temperature | 65 °C |
Minimum Operating Temperature | -40 °C |
Mounting Hole Size | Dia. 0.47 x H 0.385 in |
Mounting Type | Chassis, Rear Mount |
Standards | UL 1077 Recognized |
Termination | screw |
Trip Time | 6 to 22 s |
Color | Black |
Actuator Type | Toggle |
Button Color | Silver |
AC Voltage | 240 V |
Voltage Rating | 240 V, 50 V |
Manufacturer | TE Connectivity |
Manufacturer Part Number | W31-X2M1G-5 |
