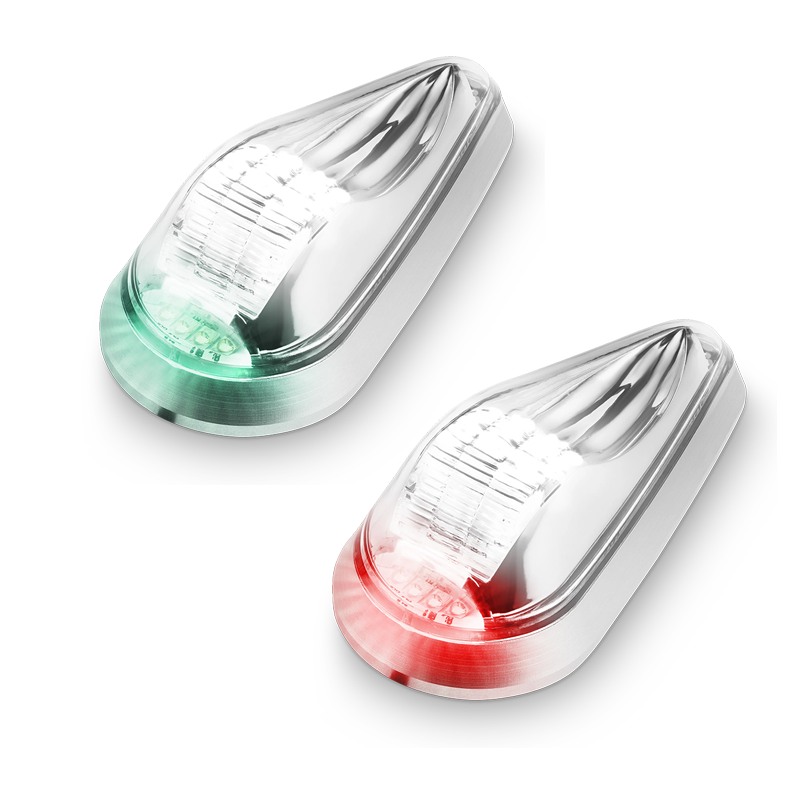

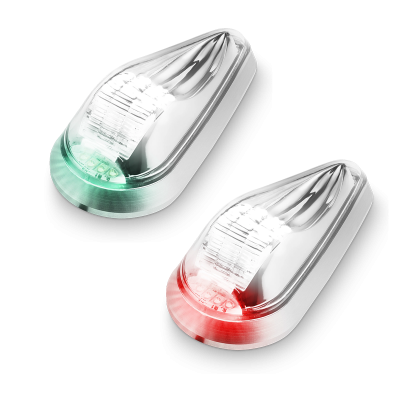

AeroLEDs Pulsar 650 Strobe For Experimental Aircraft
Pair - Left & Right
Left (Red) Only
Right (Green) OnlyOverview
|
The Pulsar 650 (formally known as Pulsar NS) is a versatile two-in-one LED light designed for optimal performance and compliance. It functions as both a navigation light for directional red and green positioning and a strobe light for enhanced visibility during daylight and nighttime flights.
With its aerodynamic, low-drag profile, industry-standard mounting footprint, and a patented three-position mounting bracket, the Pulsar 650 is an ideal replacement for legacy light installations. |
Features
- Dual Functionality: Navigation and strobe lighting in one compact design.
- Power Options: Compatible with both 12V and 24V systems.
- Energy Efficient: Low power consumption with no external power supply required.
- Strobe Synchronization: Available for multi-light setups.
- Easy Installation: Standard mounting screw pattern for seamless upgrades.
- Certified for Safety: FAA-TSOA/STC approved, exceeding C-30c Type I & II, and C-96a Class II standards.
- Upgrade your aircraft lighting with the reliable and efficient Pulsar 650.
-
Specifications
- Max Current: 0.65A@14VDC(average) 4.9A@14VDC(peak), 0.4A@28VDC(average) 3.05A@28VDC(peak)
- Weight: 0.24 lbs.
- Length: 4" Width: 1.9" Depth: 1.5"
- Includes patented three-position mounting bracket
Benefits
| Legacy Product Part Number | Legacy Product Model Number | Pulsar™ 650 Part Number | Pulsar™ 650 Model Number |
|---|---|---|---|
| 01-0770054-01 | A650PG28 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0770054-03 | A650PR28 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0770054-00 | A650PG14 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
| 01-0770054-02 | A650PR14 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771110-03 | 7111003 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0771110-04 | 7111004 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0771110-01 | 7111001 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771110-02 | 7111002 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
| 01-0770001-42 | W1285PG28 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0770001-52 | W1285PR28 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0770001-41 | W128514 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
| 01-0770001-51 | W128514 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771105-03 | 7110503 | 11-1280-B-24-L | Pulsar 650 - 28V RED |
| 01-0771105-04 | 7110504 | 11-1280-B-24-R | Pulsar 650 - 28V GREEN |
| 01-0771105-01 | 7110501 | 11-1280-B-12-L | Pulsar 650 - 14V RED |
| 01-0771105-02 | 7110502 | 11-1280-B-12-R | Pulsar 650 - 14V GREEN |
NOTE: Any highlighted RED ITEMS will require extra wiring for anti-collision function of Pulsar™ Series.
Reviews
Very high quality lights. Make sure you get the KIT-0061 MOLEX 4-POS CONNECTORS with the lights as some didnt come with one (per light)!
Verified Purchase
AeroLEDs Pulsar 650 Wingtip Navigation / Strobe Light Pair Faa TSO 14V
Very bright also well made
Verified Purchase
AeroLEDs Pulsar 650 Wingtip Navigation / Strobe Light Pair Faa TSO 14V
Great looking lights, and the customer service through Aerated customer service is excellent
Verified Purchase
AeroLEDs Pulsar 650 Wingtip Navigation / Strobe Light Pair Faa TSO 14V
Easy to install replacement for standard wingtip lights, and these have green or red constant light plus flashing white. Very bright! You can call the company with any questions.
Verified Purchase
AeroLEDs Pulsar 650 Wingtip Navigation / Strobe Light Pair Faa TSO 28V
I contacted the manufacturer to clarify one thing and they were very helpful and confirmed what I had suspected. These were easy to install and operate very well, cant wait to go flying with them and see how they look at night! I would definitely purchase these again.
Verified Purchase
AeroLEDs Pulsar 650 Wingtip Navigation / Strobe Light Pair Faa TSO 14V
Very bright, easy to install and perfect syncronised when connecting the green wire.The holder fits perfect on the old lights nut’s plate. No additional hols to drill, just need new countersunk bolts ( for Pa28)
Verified Purchase
AeroLEDs Pulsar 650 Wingtip Navigation / Strobe Light Pair Faa TSO 14V
Nice Kit
Verified Purchase
AeroLEDs Pulsar 660 Wingtip Navigation / Strobe / Position Light Pair Faa TSO 14V
Installation not yet complete thus not ready for review.
Verified Purchase
AeroLEDs Pulsar 650 Wingtip Navigation / Strobe Light Pair Faa TSO 14V
