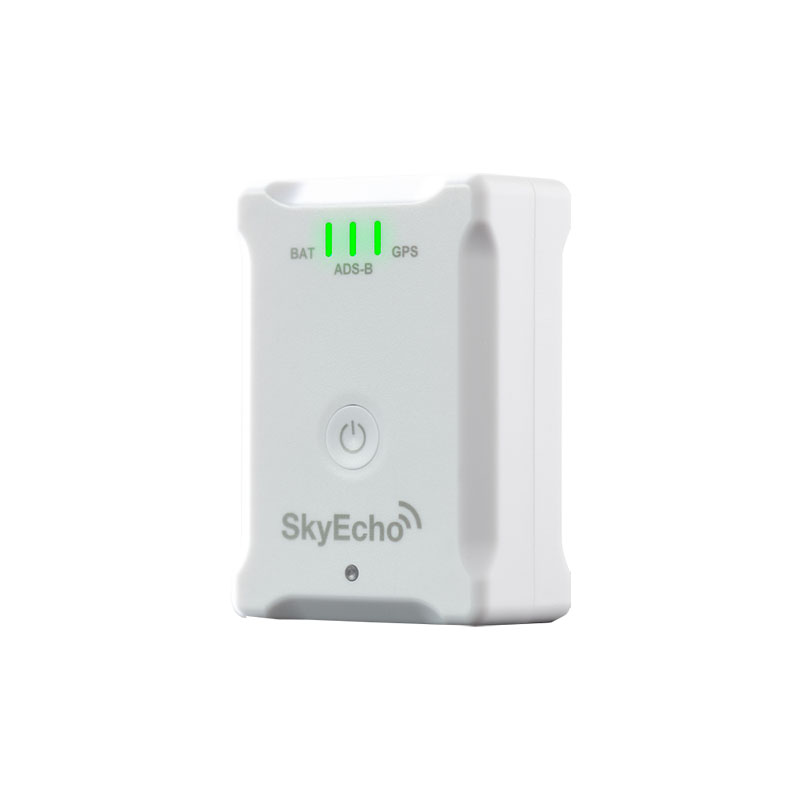

uAvionix SkyEcho Electronic Conspicuity - Portable ADS-B IN & OUT + FLARM
MFR Model# UAX-90034-01
Overview
|
SkyEcho is a compact, portable ADS-B IN/OUT transceiver designed to enhance your visibility and situational awareness in the air. By broadcasting your aircraft’s position, altitude, course, and speed, SkyEcho ensures you’re seen by both ADS-B and FLARM equipped aircraft—greatly improving electronic conspicuity. Approved for use in the UK, Australia, and New Zealand, SkyEcho is a game-changing solution for general aviation pilots seeking a simple, effective way to increase safety and stay compliant in shared airspace. Dual-Band ADS-B Transceiver

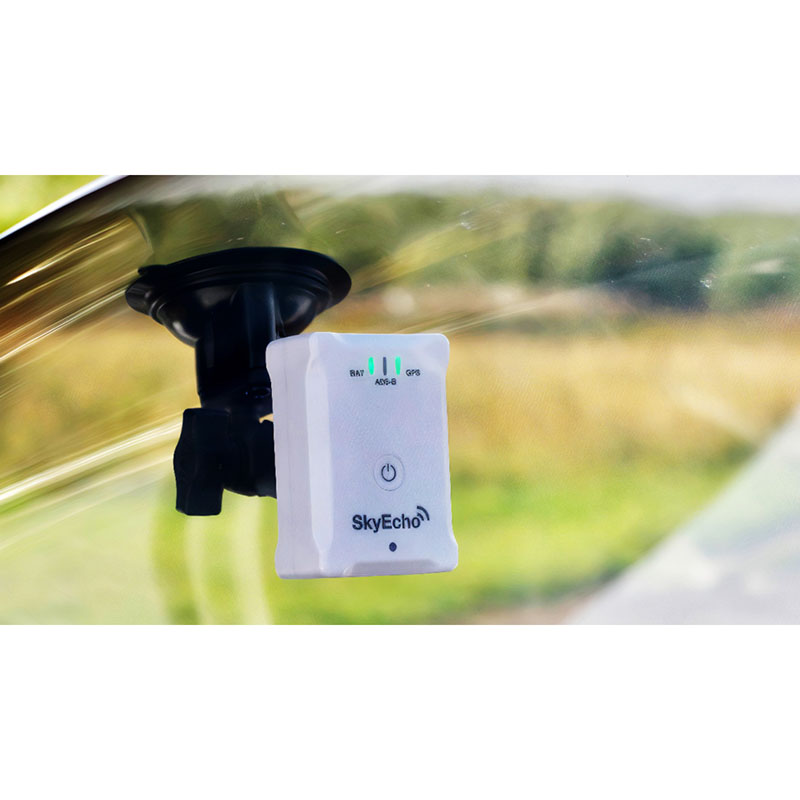

Portable and Easy to Use
Integrated Certified GPS
Extended Operational Capacity
|
Features

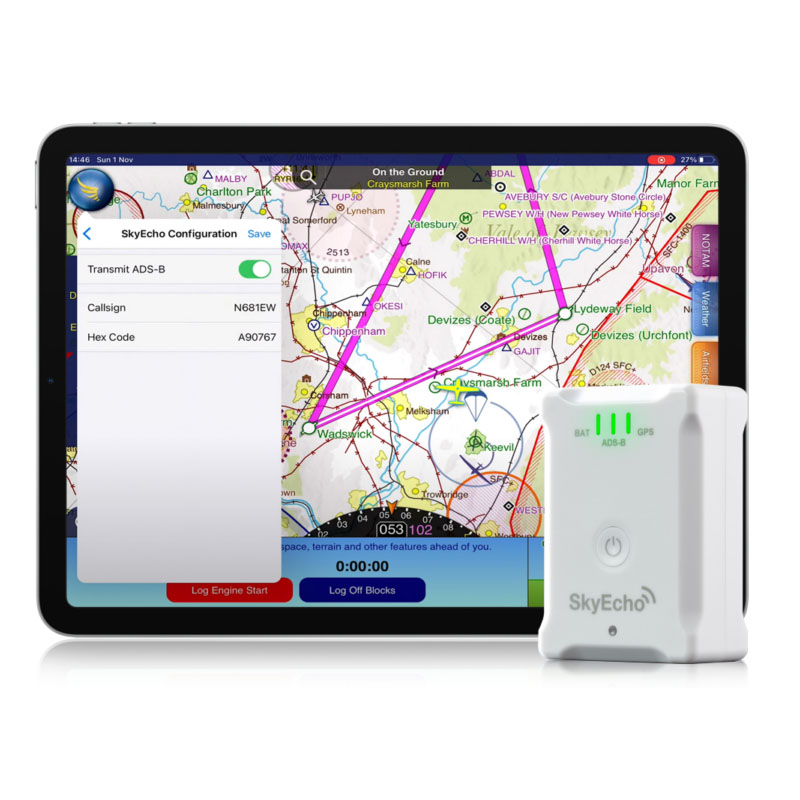

- Reports surrounding aircraft positions in real time to your Electronic Flight Bag (EFB) application
- Transmits ADS-B on 1090MHz and meets MOPS
- DO-260B Class A0 25W output power
- Integrated TSO Certified uAvionix FYX SIL 1 GPS
- Integrated Barometer for Pressure Altitude
- GDL90 traffic reports over Wi-Fi
- FLARM Compatible in Europe when paired with a compatible EFB application.
Specifications
- Operating Time: 12 hours
- Size: 57x82x30mm
- Weight: 200 grams
- Source Integrity Level (SIL): 1
- System Design Assurance (SDA): 1 (can be set to 0 or 1 by user)
- Operating Temp: -45 to 70°C
-
- Transmitter:
- Frequency: 1090MHz ±1MHz
- Transmit Power: 20W Nominal
- Spectral Perf.: DO-260B DF-18
-
- Receiver:
- 1090 Performance: -93 to 0dBm
- 978 Performance: -103 to 0dBm
-
- WAAS GPS:
- Augmentation: SBAS
- Sensitivity: -167dBm
-
- Altimeter:
- Range: -1000 to 60,000ft
-
- Interfaces:
- Wi-Fi GDL 90 5 simultaneous connections
- 802.11 b/g/n 2.4GHz
- USB-A to USB-C charging cable
Benefits
Enhanced Safety and Visibility
Approved under UK CAA CAP 1391 and CASA 20:18, it allows light aircraft to be visible without the need for traditional transponders.
Multiple Connection Capabilities
Connects up to 4 devices simultaneously over Wi-Fi, allowing the crew and passengers to view real-time traffic information.
Weather and Traffic Information
Capable of receiving FIS-B and TIS-B information where available, providing comprehensive in-flight data for better decision-making.
Barometric Altimeter Integration
Includes a barometric altimeter that correlates pressure altitude with nearby traffic data for accurate relative altitude awareness.
FLARM Compatibility
SkyEcho can receive and display FLARM traffic information through compatible EFB applications, but only in Europe where FLARM operates on a fixed frequency. This feature is not supported outside of Europe due to regional frequency variations.
Robust and Regulatory Compliant
Meets stringent regulatory requirements and is built to withstand extreme temperatures from -45 to 70°C, ensuring reliable performance under various environmental conditions.
