Dynon Mode-S Transponder with ADS-B Out SV-XPNDR-263
MFR Model# 105544-000
Overview
|
TSO'd, Class 1, Mode-S Transponder with TIS traffic reception (US only) and 1090ES ADS-B Out capability. When paired with the Dynon SV-GPS-2020 or other suitable position source, the SV-XPNDR-263 is a rule-compliant ADS-B Out solution. The SV-XPNDR-263 is significantly lighter (1.8 oz) and smaller than previous models. For maximum compatibility with existing installation locations, it features the same mounting tray screw locations, compact quick-release mounting tray design, and electrical and antenna connections. Note: Antenna not included. See SkyView Installation Manual for recommendations. Integrated: Made for the SkyView System, with control and annunciation appearing on the SkyView Display. The transponder module can be mounted anywhere in the airplane that is convenient. ADS-B Out via 1090 ES: Meets USA and Europe ADS-B Out Mandates. FAA ADS-B Mandate compliance requires that a suitable GPS position source such as the Dynon SV-GPS-2020 GPS Receiver/Antenna module be connected. Alternatively, a TSO’d GPS position source can be used, typically from a connected certified GPS IFR navigator. Traffic: Features TIS Traffic (USA). Dynon Warranty, Support, and Service: These transponder come with a 3-year Dynon Warranty. |
Features
- Lighter and Smaller: The SV-XPNDR-263 module is 14% lighter and significantly smaller than its predecessors. Weighing in at 10.6 oz, and measuring only 1.5” x 2.6” x 5.9”, the compact size allows for installation in the smallest spaces within the aircraft.
- Installation Compatibility: To ensure maximum compatibility and ease of upgrade, the SV-XPNDR-263 features the same mounting tray screw locations, quick-release mounting tray design, and electrical/antenna connections as previous models.
- Easy Plug-and-Play Integration: The SV-XPNDR-263 offers simple plug-n-play integration into SkyView HDX or Advanced AF systems via simple serial connection, with control and annunciation appearing directly on the pilot’s touchscreen avionics displays.
- Proven Reliability: The transponder operates on 9-33V DC and comes backed by a 3-year Dynon Warranty, providing peace of mind and industry-leading support.
Specifications
- Usage: 250 Watt; Can meet 2020 FAA ADS-B Out mandate
- Type: Class 1 Mode S
- Compliance: ETSO 2C112b Class 1 Level 2els, ETSO C166a Class B0, TSO C112c Class 1 Level 2els, TSO C166b Class B1S
- Supply Voltage (DC): 9 - 33 V
- Power Consumption: 0.15 A (idle) / 0.28 A (active) @ 14V DC
- Transmitter Power: 250 W nominal at connector
- Weight: 0.66 lbs (300 g)
- Dimensions: 1.5" H x 2.6" W x 5.9" L (H 37 x W 64 x L 149 mm)
Benefits
- Connections: The SV-XPNDR-263 connects to a serial data line on each SkyView Display.

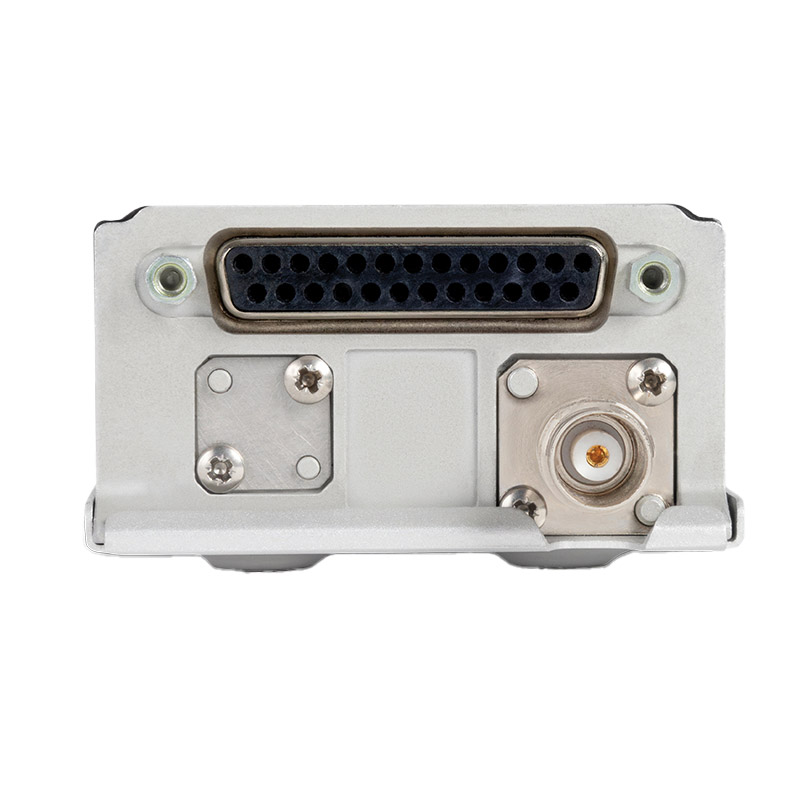

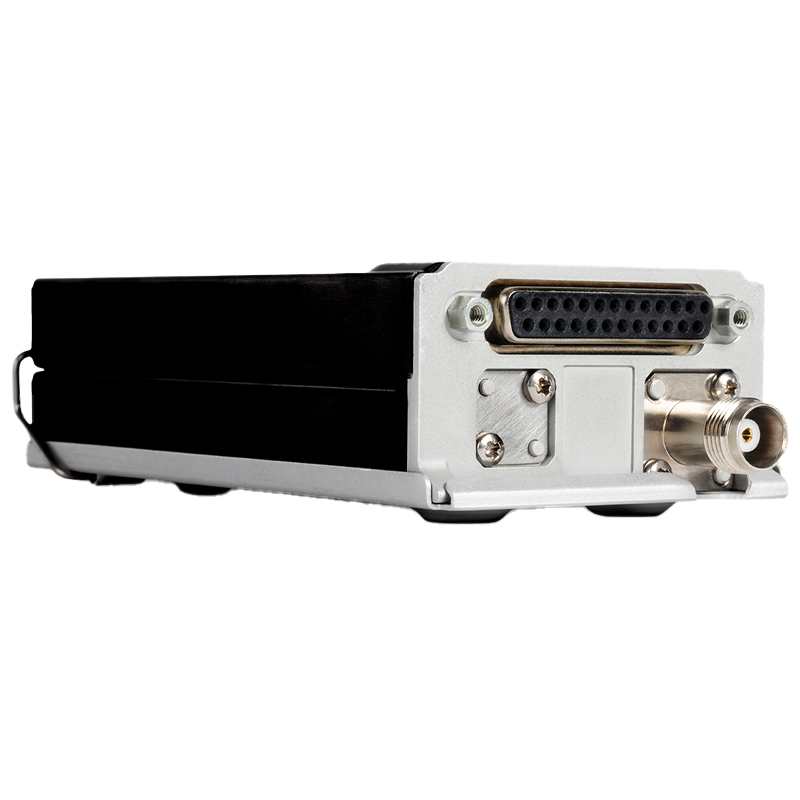

- TNC Connector: The TNC connector is not supplied by Dynon. Specification: Dual Crimp RG142-400 AMP Male.

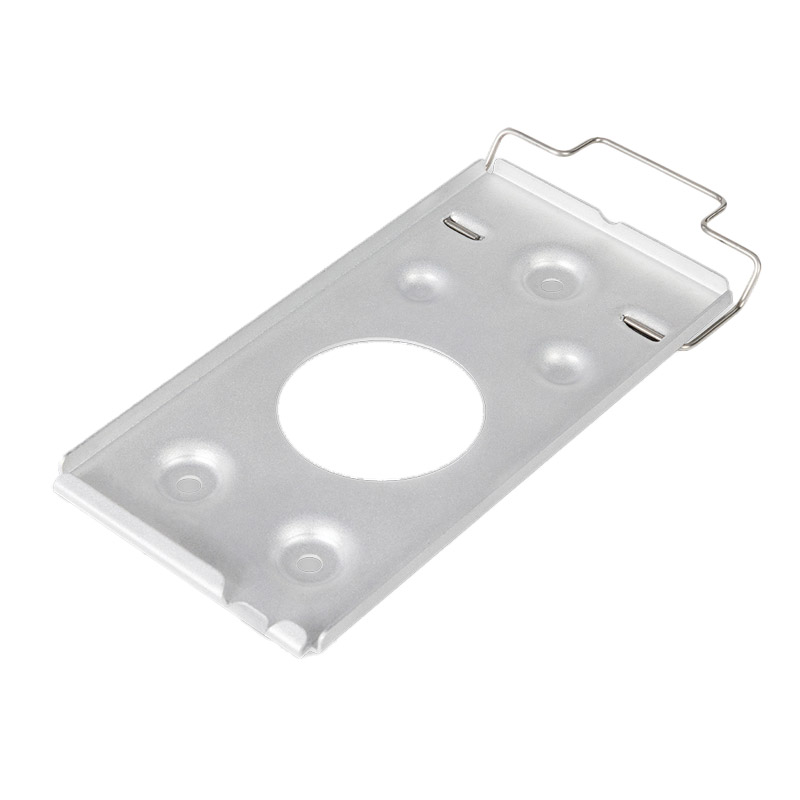

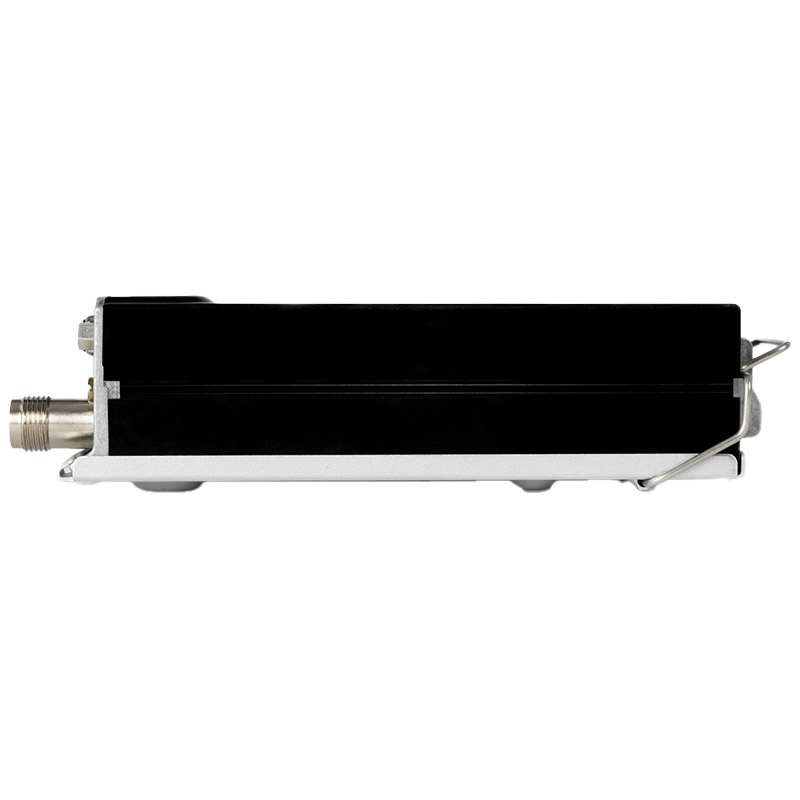

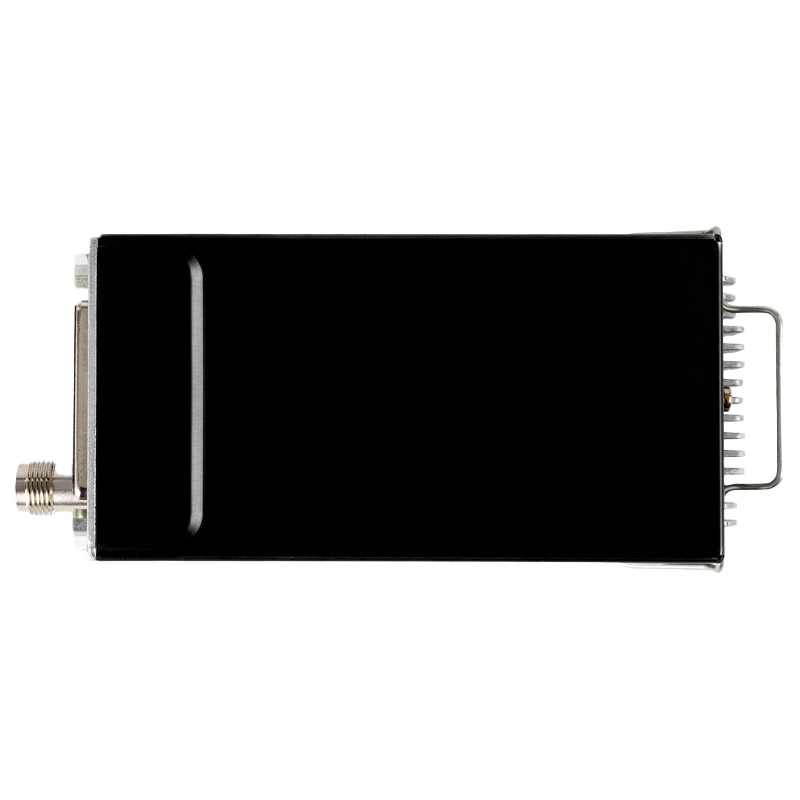

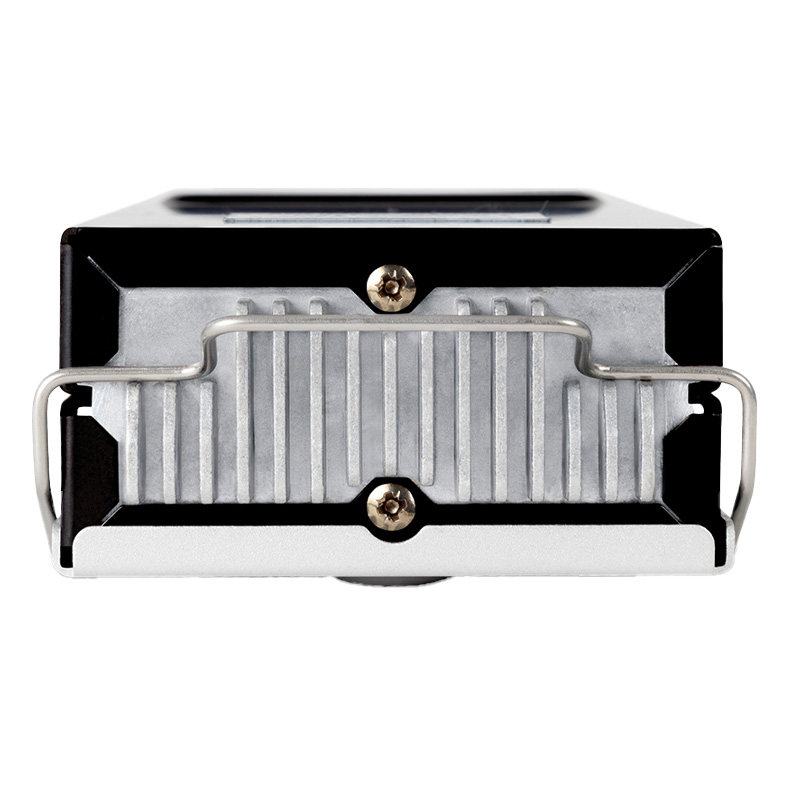

- Mounting: At only .66 lb and 5.9" by 1.5" by 2.6", the transponder module can fit into the tiniest places and aircraft. A quick release mounting system allows for simple installation and easy removal if needed for service.
