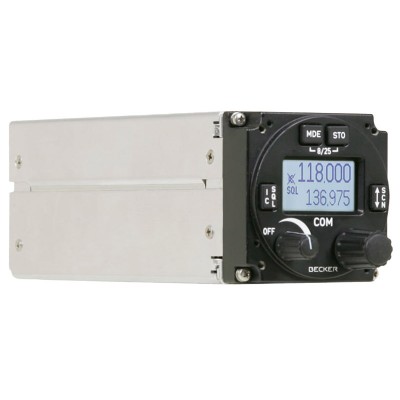

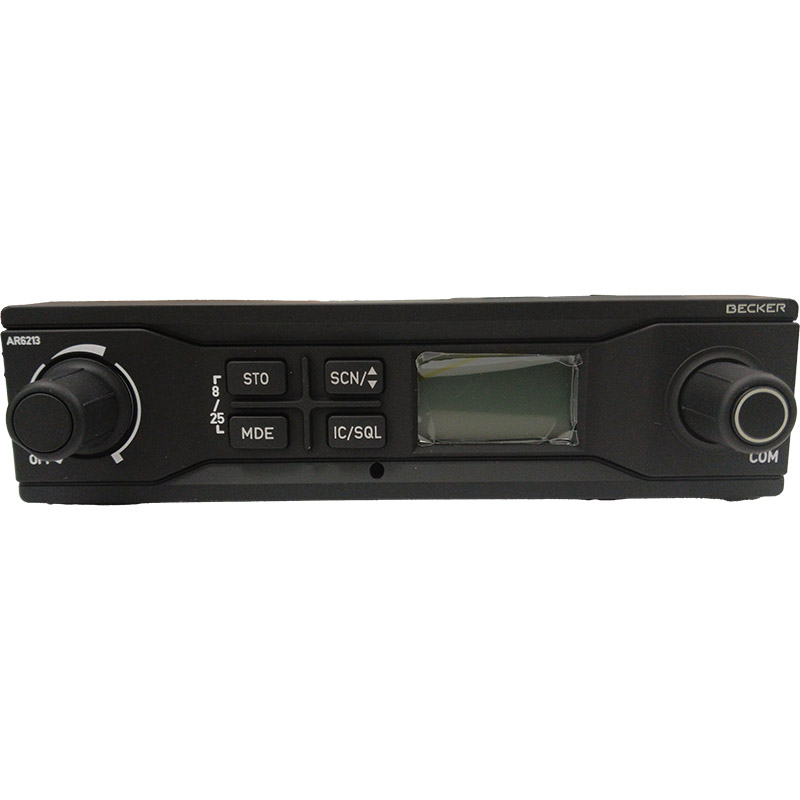

The Becker Avionics AR62XX VHF transceivers are the pinnacle of aviation communication technology, offering unmatched reliability, advanced functionality, and user-centric designs. Tailored for the demands of general aviation, light sport aviation, and ultralight aircraft, these robust and compact radios set the standard for performance and durability. Unrivaled Features and Benefits
Design Excellence
Flexible Installation Options
Why Choose Becker Avionics?
|
| 6200 Series | Specification |
|---|---|
| Supply voltage | 10.25…33 VDC |
| Emergency voltage | 9.0…10.25 VDC |
| Output power | ≥ 6 W @ 12 V into 50 Ω ≥ 10 W @ 28 V into 50 Ω |
| Current consumption | < 0.1 µA @ 12 VDC (power OFF) < 140 mA @ 12 VDC (receive standby) < 2 A @ 12 VDC (transmit) |
| Frequency range | 118.000…136.990 MHz |
| Channel spacing | 8.33 / 25 kHz |
| Number of channels | 760 (25 kHz mode) 2280 (8.33 kHz mode) |
| Squelch | Trigger level is adjustable |
| Storage temperature | -55…+85 °C |
| Operating temperature | Single block: -20…+55 °C, short time +70 °C Remote device: -40…+55 °C, short time +70 °C |
| Maximum altitude | 35,000 ft |
| Audio output | Headphone: ≥ 300 mW @ 150 Ω ≥ 100 mW @ 600 Ω |
| Audio auxiliary input | 1…8 V (adjustable) into 600 Ω |
| Speaker | ≥ 4 W into 4 Ω |
| Weight | AR6201/AR6211: 675 g (1.488 lbs) AR6203/AR6213: 800 g (1.763 lbs) RT6201/RT6211: 600 g (1.32 lbs) RCU6201/RCU6211: 200 g (0.44 lbs) |
| Certifications | FCC approved ETSO-C37e and C38e/TSO-C169a Variants 620X: EASA.210.1249 Variants 621X: EASA.210.10075461 |
| Design assurance level (DAL) | Variants 620X: Level D Variants 621X: Level C |
