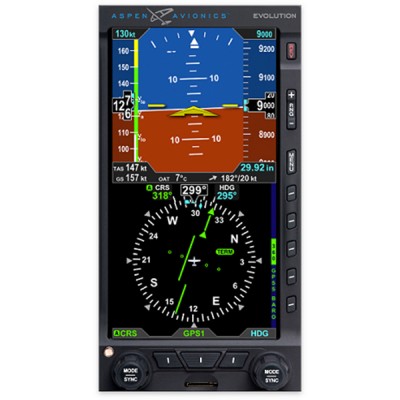

Main Image

Aspen Avionics E5 EFI 925-00101-001

0 Reviews 0 Answered Questions
$6612.10/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-19016
MFR Model# 925-00101-001

Overview

Aspen Avionics E5 EFI 925-00101-001
  • The Evolution E5 is a drop-in replacement that gives you advanced functionality with easy and affordable upgrades that allow you to add additional capabilities and take advantage of future technologies without replacing your existing display.

Features

  • Backup attitude indicator not required
  • Consolidates traditional attitude indicator and directional gyro (DG) into a single display
  • Autopilot compatibility interfaces to the Bendix/King AeroCruze 100 autopilot
  • Compatible with most legacy autopilots
  • Includes Global Positioning System (GPSS) Steering, and attitude heading reference system (ADAHRS)
  • Large, 6.0" diagonal, 400 x 760 pixel TFT Active Matrix LCD screen with bolder/brighter resolution
  • Rechargeable lithium-ion internal backup battery with up to one hour of battery life
  • Works with your panel’s existing avionics
  • Connects to one GPS source and one VLOC source
  • Unique form-fit design slides easily into existing panel cutouts
  • Provides a path for removal of vacuum instruments*
  • PFD Upgrades
  • Easy and affordable Evolution E5 Trade in to top-of-the-line Evolution Pro MAX.

Specifications

  • Overall Dimensions: 3.50” W x 7.00”H x 4.15”D
  • Weight: 2.9 lbs. with mounting bracket
  • Display Type: 6.0” Diagonal TFT Active Matrix LCD
  • Display Resolution: 400x760
  • Display Backlight: High Intensity White LED
  • Display Colors: 16M
  • Operational Specifications:
  • Operating Temp: -20°C to +55°C
  • Storage Temp: -55°C to +85°C
  • Max Operating Altitude (unpress.): 35,000 ft.
  • Cooling: Integral Fan
  • Max Humidity: 95% at 50°C
  • Input Voltage: +9 to +32 Volts DC
  • Max Current: 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc
