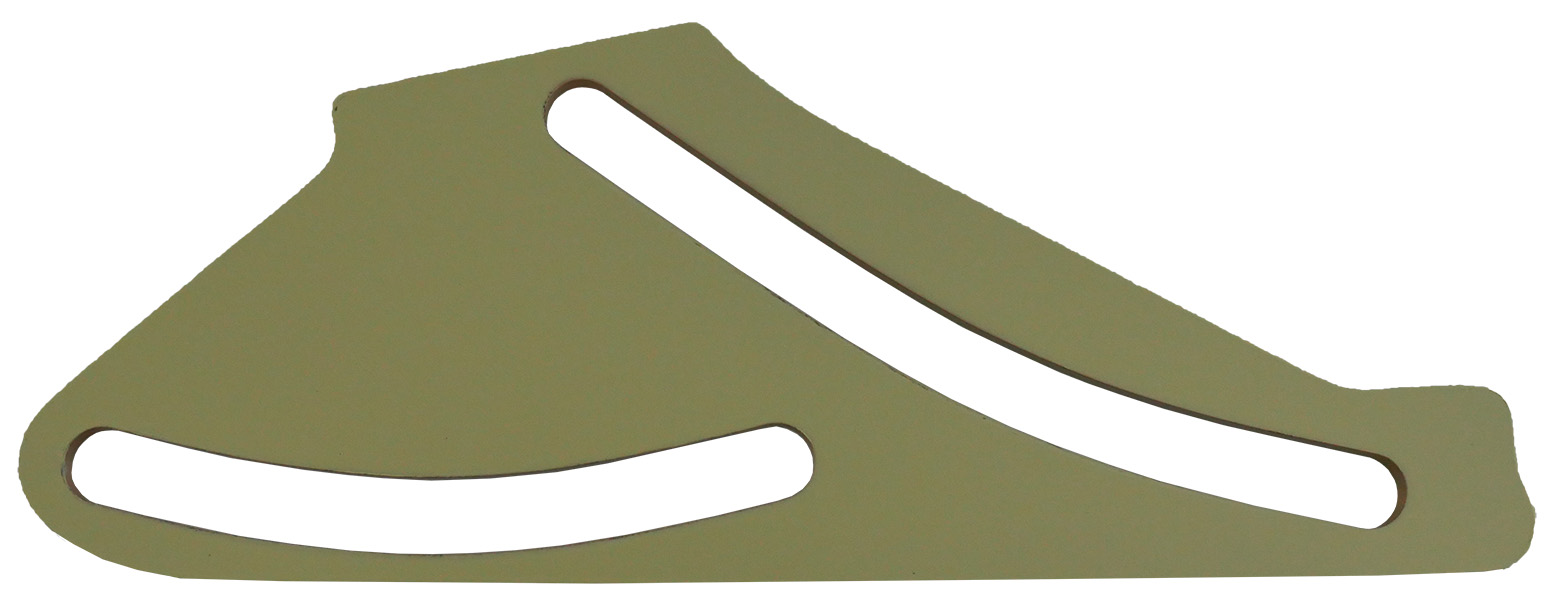

McFarlane Flap Track - MC1221010-8

0 Reviews 0 Answered Questions
$183.69/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 05-19654
MFR Model# MC1221010-8

Overview

Flap TrackNote: Before purchasing McFarlane part number MC1221010-8 flap track for installation on a Cessna 180 or 182, verify the thickness of the currently installed flap tracks. MC1221010-8 is 0.25 thick. Some early Cessna 180 and 182 aircraft have a 0.16 thick flap track laminated on both sides for a total thickness of 0.25. If your aircraft has the thinner laminated flap tracks, McFarlane part number MC1221010-8 cannot be installed.
Replace worn-out tracks to prevent dangerous and expensive binding problems!
McFarlane's FAA-PMA flap tracks feature many improvements over the original.
  • Improved material
    • 20% stronger
    • Improved fatigue resistance
    • Greater resistance to wear, "mushrooming" and stress cracking
  • Precision machined for smooth rolling action
  • No pre-drilled holes for a precise, clean installation
  • Replace just the track, not the entire assembly
    • Cessna only lists the rib assembly for most aircraft
    • Eliminates the need to drill into the fuel tank area
  • Alodined then epoxy primed per MIL-PRF-23377 for corrosion protection
  • Cessna aircraft models 150 thru 210
Approved! Flap Tracks for the Cessna Caravan

Replace worn-out tracks to prevent dangerous and expensive binding problems!
  • NDI inspected throughout the manufacturing process
  • Save thousands!
Instructions for Continued Airworthiness
Cessna Flap Track Assembly P/NCessna Flap Track P/NMcFarlane Flap Track P/N
0523231-130523231-14  Note 1MC0523231-14
0523231-21
0523231-23
0525001-10525001-2  Note 1MC0525001-2
0525001-1S
2425001-1
1220058-11220048-1  Note 1MC1220048-1
1220052-2
1221010-71221010-8  Note 1MC1221010-8
1221010-7AGW
1221010-15
1221010-16
1221010-19
1221010-19AGW
1221010-20
1221010-20AGW
N/A1221064-19  Note 2MC1221064-19
1221064-20  Note 2MC1221064-20
1221064-21  Note 2MC1221064-21
N/A2622075-4MC2622075-4
N/A2622075-5MC2622075-5
N/A2622075-6MC2622075-6
Notes:
1. Part numbers do not appear in the Illustrated Parts Catalogs; only track assembly part numbers are listed.
2. Part numbers appear directly in the Illustrated Parts Catalogs; no assembly part numbers exist.
Determine if a Cessna flap track is worn beyond wear limits with the Flap Track Wear Gauge.
