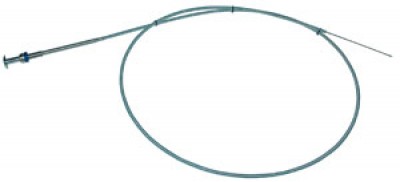

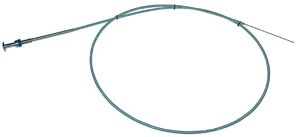

McFarlane Control Chrome 4 Ft Push-To-Unlock - MC6150-071HH048

$148.23/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 05-19594
MFR Model# MC6150-071HH048

Overview

MC6150 Universal Push-to-Unlock Controls

Designed to aesthetically match vintage controls of yesterday




  • Quality stainless steel construction
  • High temperature Teflon lined conduit for smooth, consistent control
    • Cheapy controls with poly liners will not tolerate engine temperatures
  • Heavy duty for strength and long life
  • Available in 4, 6, 8, 10 and 12 foot lengths
    • May be trimmed to length
  • Round chrome plated brass knob
    • Custom engraving is not available for chrome knobs
Specifications:
  • Conduit:  0.24 inch OD Teflon lined wound conduit
  • Inner wire:  0.071 inch diameter music wire
  • Travel (stroke):  3 inch maximum
  • Maximum work loads:  25 lbs (Pull), ~10 lbs* (Push)
  • Minimum locking force:  15 lbs
  • Operating temp:  -65 to 450 deg F **
* Max push load dependent on wire size, length of trimmed wire (unsupported by conduit), geometry of wire rigging, and configuration of actuator
** Operating temperature of knob/guide tube assembly: -65 to 250 deg F
These controls are not for use on certified aircraft, or for use for flight controls or flight control trim tabs.
