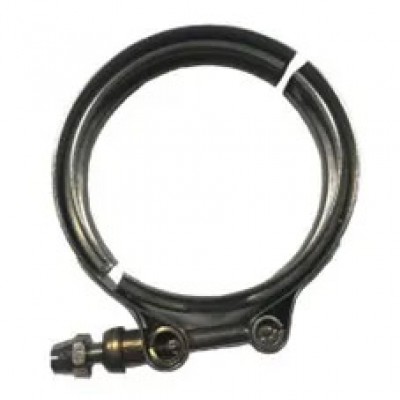

Hartzell Engine Tech V-Band Clamp 490127-0000 - Lycoming
MFR Model# 490127-0000
Overview
|
FAA-PMA Turbo Exhaust Clamp for Lycoming TIO / TEO / LTO Series Engines The AeroForce 490127-0000 V-Band Clamp is an FAA-PMA approved replacement for Lycoming turbocharged exhaust systems, including TIO-540, TEO-540, LTO-360, and related applications.
This clamp secures the exhaust-to-turbocharger flange connection, maintaining a tight, continuous seal in high-heat turbo environments. Proper sealing is critical to prevent exhaust leakage, carbon monoxide intrusion, turbocharger inefficiency, and potential engine power loss. Following AD 2023-09-09, many spot-welded V-band clamps are subject to a 500-hour life limit or recurring 100-hour / 6-month inspections. The Hartzell PMA clamp is not subject to this AD, providing a long-term replacement option for Lycoming operators seeking reduced compliance burden. Replace the clamp if any of the following conditions are found:
Note: Inspect at each 100-hour, annual, or condition inspection per Hartzell Engine Technologies
|
Features
- FAA-PMA approved for applicable Lycoming turbo engines
- Not subject to AD 2023-09-09 life limits
- Weld-free, rivet free construction to eliminate legacy weak points
- Braided wire cable and a floating retainer for improved load distribution and durability
- Integrated cable safety retention band for added security
- Designed for high-heat turbocharger exhaust connections
- Direct replacement for applicable OEM Lycoming part numbers
Eligible Aircraft
| Engine | Engine Model | Old P/N | AeroForce P/N | Airframe | Notes |
|---|---|---|---|---|---|
| Continental | TSIO-360-RB, LTSIO-360-RB | 670105, 646434, 653337 | 490127-0001 | Piper PA-34-220T Seneca V | 670105 does not appear in IPC, however part noted supersedes to 670105 |
| Continental | TSIO-360-MB, TSIO-360-SB | 670105, 646434, 653337 | 490127-0001 | Mooney M20K-252 | 670105 does not appear in IPC, however part noted supersedes to 670105 |
| Continental | TSIO-520-BE | 670105, 646434, 653337 | 490127-0001 | Piper PA-46-310P | 670105 does not appear in IPC, however part noted supersedes to 670105 |
| Continental | TSIO-550-C | 670105, 646434, 653337 | 490127-0001 | Textron LC41-550FG, T240 | 670105 does not appear in IPC, however part noted supersedes to 670105 |
| Continental | TSIO-550-G | 670105 | 490127-0001 | Mooney M20TN/M20V | |
| Continental | TSIO-550-K | 670105 | 490127-0001 | Cirrus SR22T | |
| Lycoming | LTO-360-E1A6D | LW-12093-8 | 490127-0000 | Piper PA-44-180T | |
| Lycoming | TEO-540-A1A | 40D21162-340M | 490127-0000 | Tecnam P2012 Traveler | 40D21162-340M does not appear in IPC |
| Lycoming | TIO-540-AE2A | 40D23255-340M | 490127-0000 | Piper PA-46R-350T, Piper PA-46-350P | |
| Lycoming | TIO-540-AF1A, TIO-540-AF1B | 40D21162-340M | 490127-0000 | Mooney M20M | Coupling 40D21162-340M was removed via SB M20-283A and AD2024-23-17. Aircraft will have 40D23255-340M Installed |
| Lycoming | TIO-540-AG1A | 40D21162-340M | 490127-0000 | Commander 114TC | Coupling 40D21162-340M was removed via SB 113-33A and AD2000-11-04. Aircraft will have 40D23255-340M Installed |
| Lycoming | TO-360-E1A6D | LW-12093-8 | 490127-0000 | Piper PA-44-180T |
